Brother MFC6800 - Components; External Appearance and Weight; Outline

1-1
1.1 OUTLINE
1.1.1 External Appearance and Weight

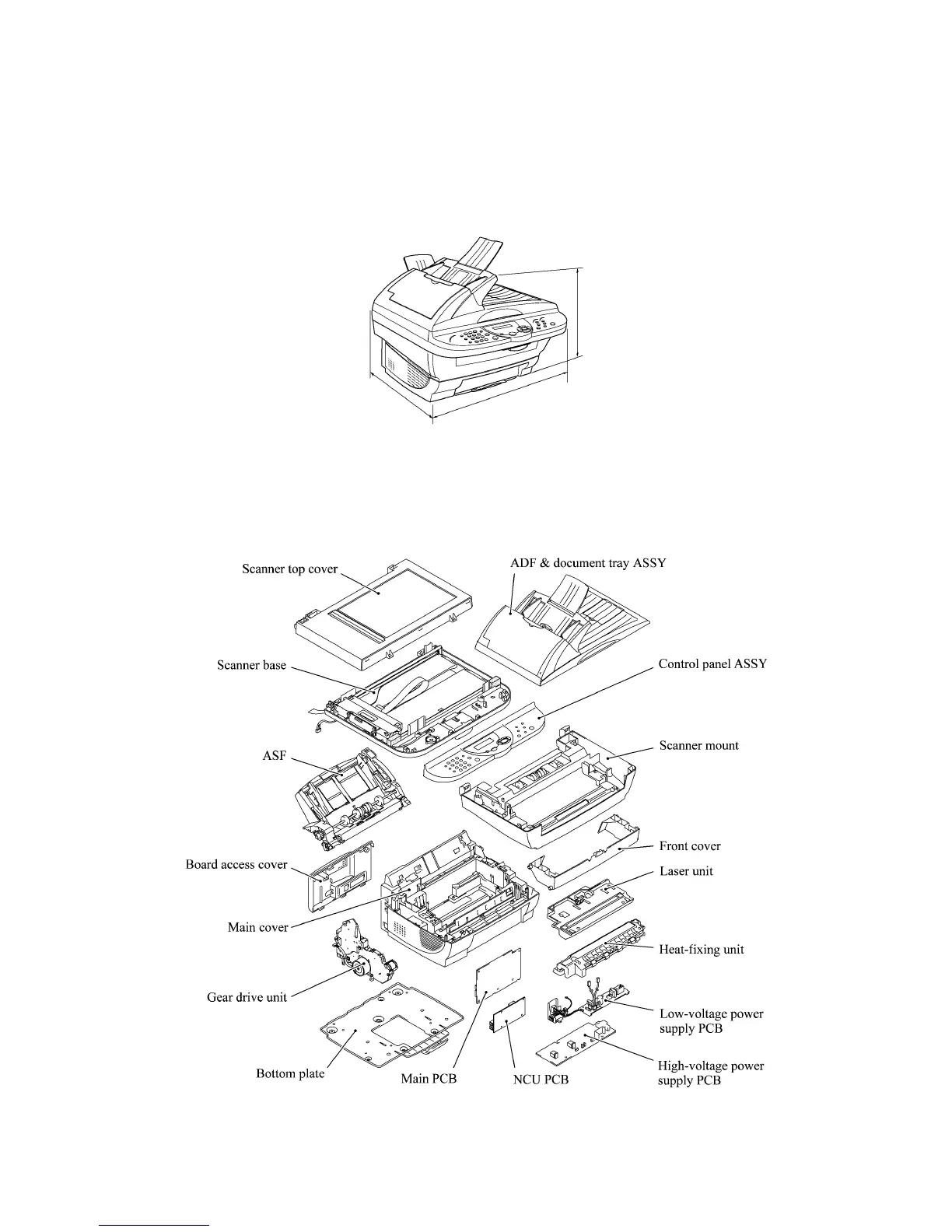

The figure below shows the machine appearance and approximate dimensions.
Weight: Machine proper Approx. 11 kg
Machine (incl. drum unit & toner cartridge) Approx. 12 kg
In package Approx. 16 kg
1.1.2 Components
The machine consists of the following major components:
(D) 458 m
m
18.0"
(H) 354 mm
13.9"
(W) 459 m
m
18.1"
