4.1.24 EL (Eraser Lamp) Board

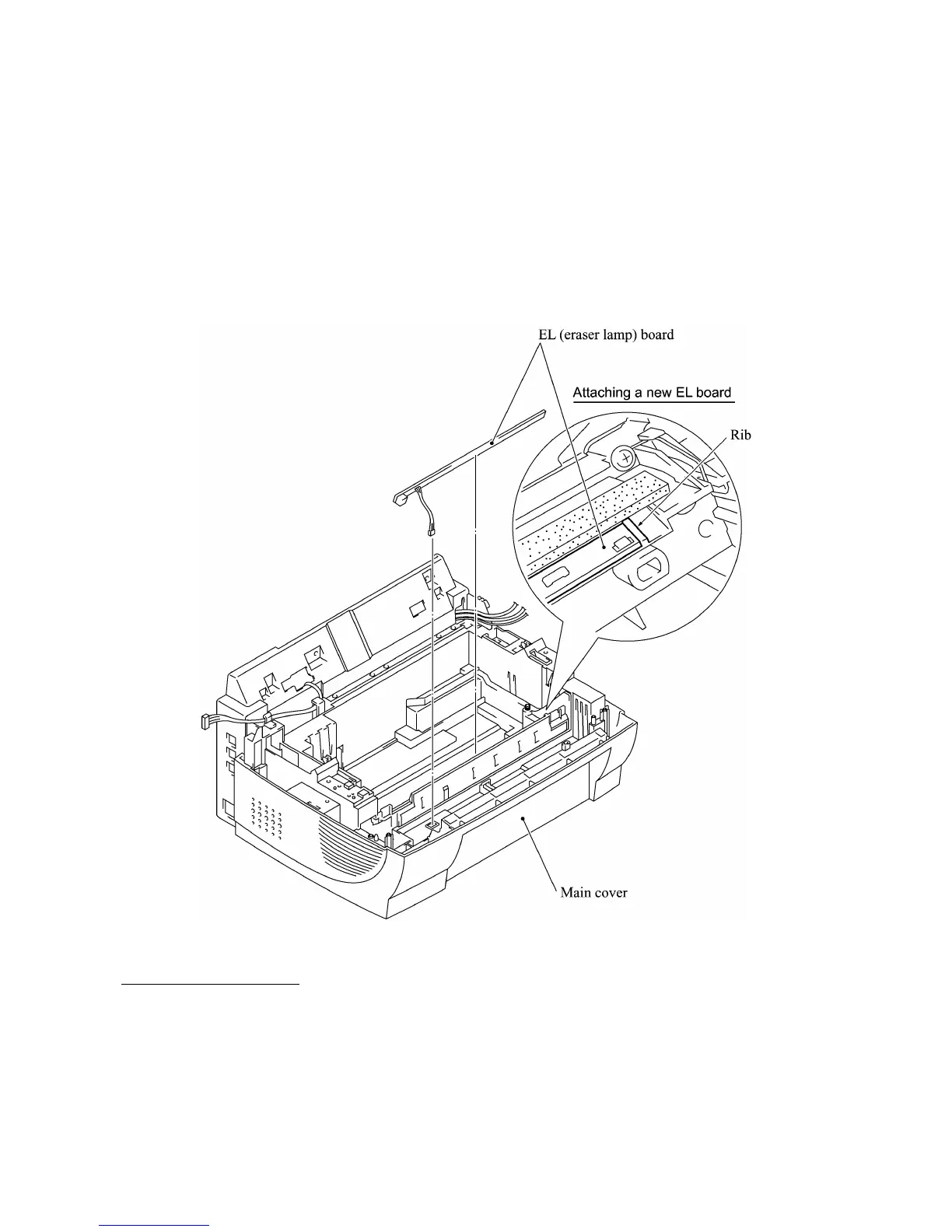

Only when you need to replace the EL board (which is attached with double-sided adhesive tape),
remove it according to the steps below.
(1) Make sure that the EL harness is disconnected from the high-voltage power supply PCB.
(Refer to Subsection 4.1.17.)
(2) Make sure that the heat-fixing unit is removed.
(3) Peel off the EL board from the main cover and clear adhesive tape if remaining.
n Reassembling Notes
• When attaching a new EL board, bring the right end into contact with the rib provided on the
main cover.
