4.1.19 Power Supply Shield

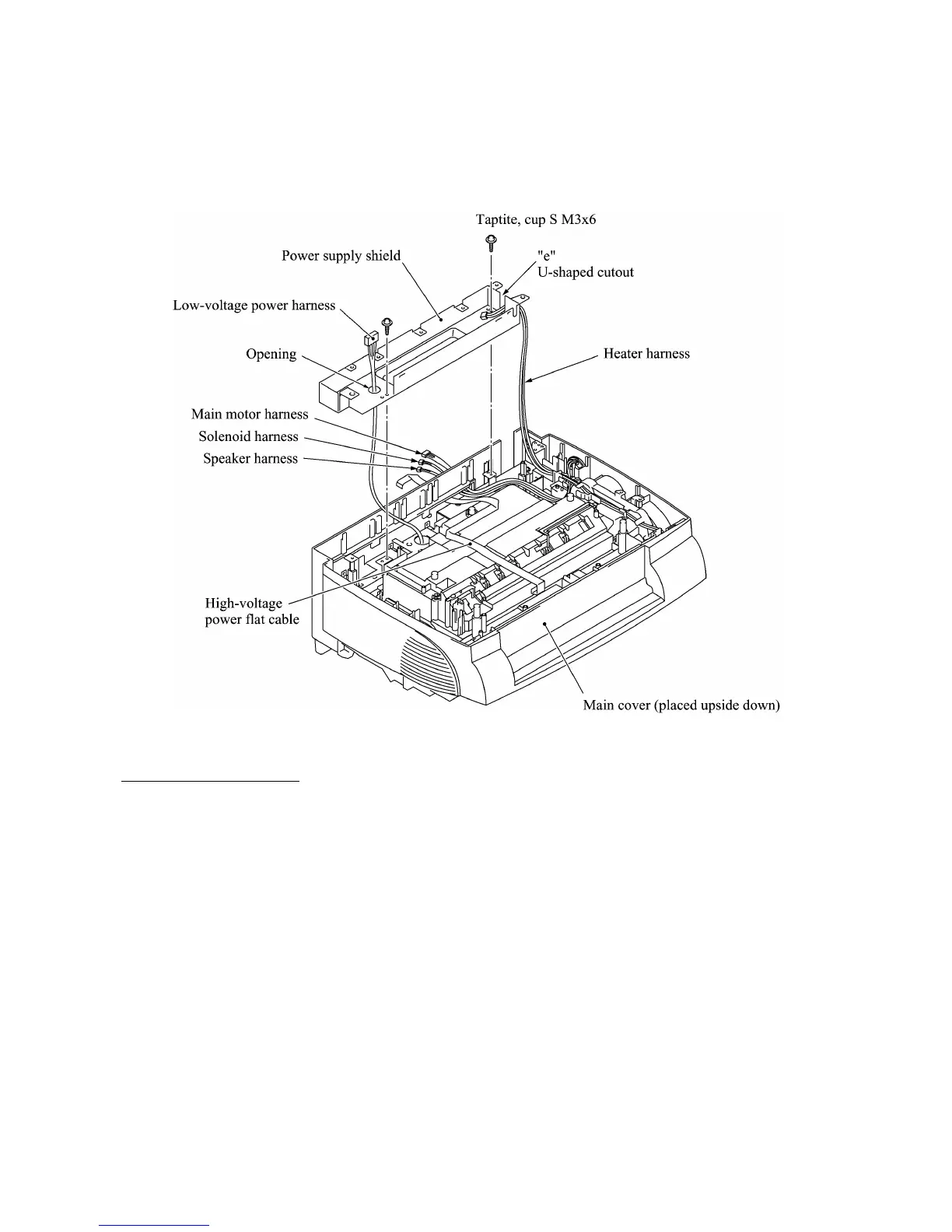

(1) Remove the two screws and lift up the power supply shield.
n Reassembling Notes
• When reinstalling the power supply shield, route the low-voltage power harness through the
opening and route the heater harness through U-shaped cutout "e" as shown above.
