4-39

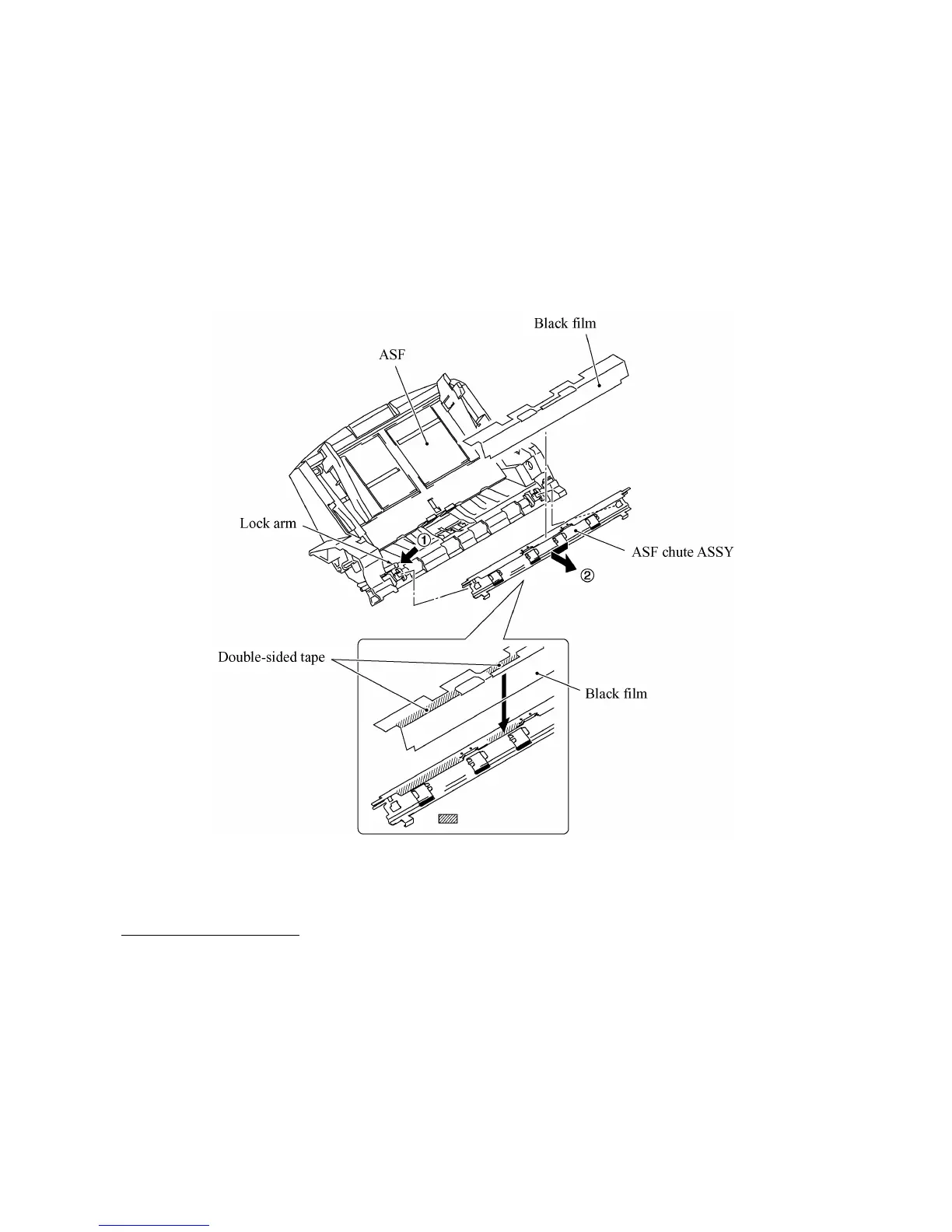

10) Press the lock arm provided at the left inside of the ASF to the rear with a screwdriver, slide
the ASF chute ASSY to the left, and take it out to the front.
NOTE: To replace only the black film attached to the chute, do not remove the chute ASSY
from the ASF.
NOTE: A new chute and black film will be provided separately. When replacing the ASF
chute ASSY, first set the chute into the ASF and then attach the black film to the chute. If you
first attach the black film to the chute and then set the ASF chute ASSY, then the black film
may be bent or wrinkled.
n Reassembling Notes
• Set the paper feed roller into the ASF with the D-shaped end facing leftwards.
• Set the paper pull-in roller into the ASF with the D-shaped end facing leftwards.
• When setting the release lever back into place, turn the release cam to the rear and then set the
release lever so that the bottom end of the release lever comes in the front of the boss provided
on the ASF, as illustrated on page 4-35.
To Next Page
