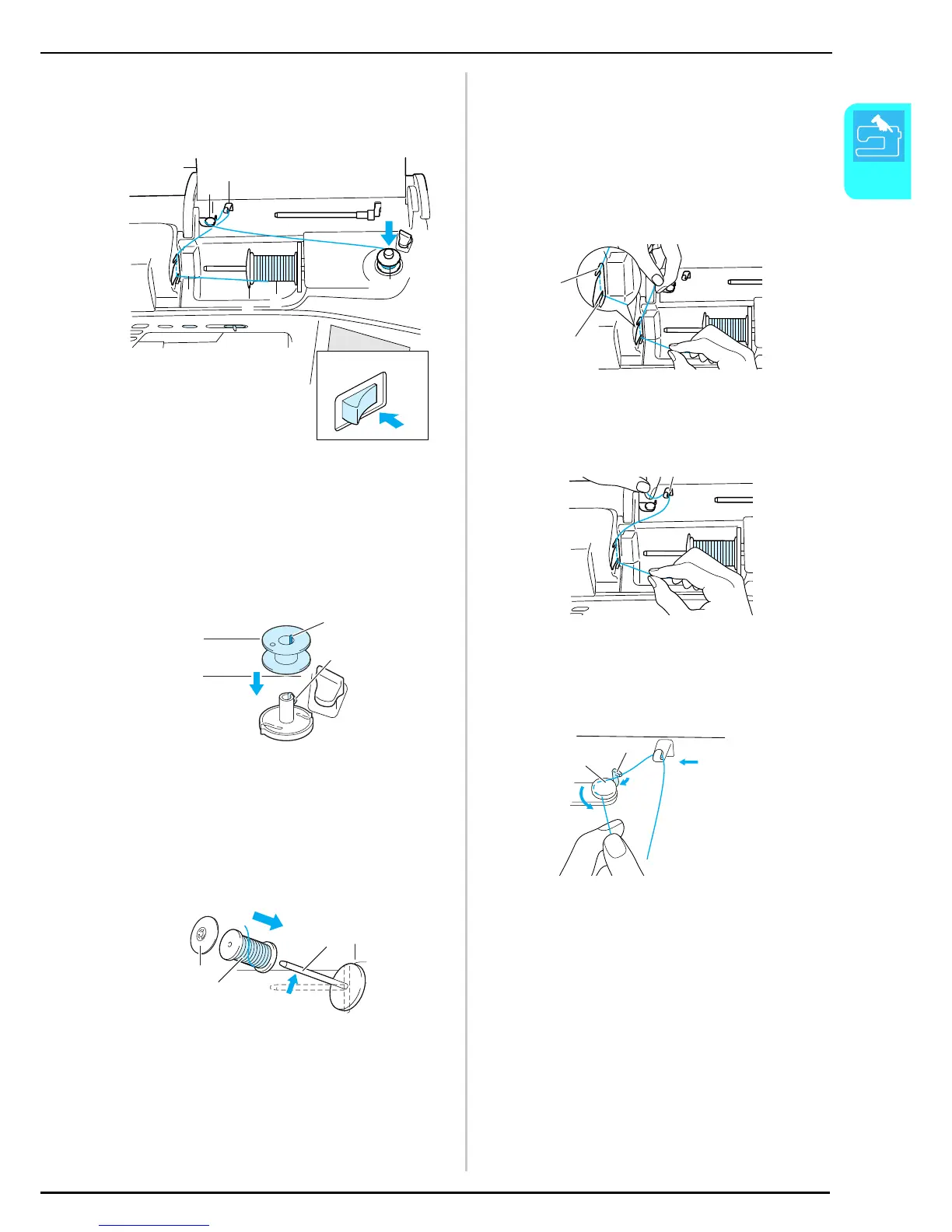

LOWER/UPPER THREADING
Getting Ready
25
1
Winding the Bobbin Using the Spool Pin
The main spool pin cannot be used to wind the
bobbin while sewing. For details, see “Using the
Supplemental Spool Pin” on page 23.
a
Turn on the machine.
b
Open the top cover.
c
Align the groove in the bobbin with the spring
on the bobbin winder shaft, and then slide the
bobbin onto the shaft.
a Groove in bobbin
b Spring on bobbin winder shaft
d
Pivot the spool pin so that it angles upward,
and then place the spool of thread on the
spool pin.
* Make sure that the thread unwinds from the front.
a Spool cap
b Thread spool
c Spool pin
e
Slide the spool cap as far as possible onto the
spool pin, and then return the spool pin to its
original position.
f
While holding the thread from the spool with
both hands, pull the thread through the lower
notch in the thread guide plate, then through
the upper notch.
a Lower notch in the thread guide plate
b Upper notch in the thread guide plate
g
Pass the thread through the thread guide.
a Thread guide
h
Pass the thread under the pin on the bobbin
winding thread guide, and then pass it around
the pretension disk.
* Make sure that the thread passes under the pretension disk.
a Pin
b Pretension disk
i
Follow steps g through j on page 24.
