MAINTENANCE PROCEDURES
9. Place an appropriate drain pan under
the engine.
10. Remove the engine oil drain plug
and discard the sealing washer.

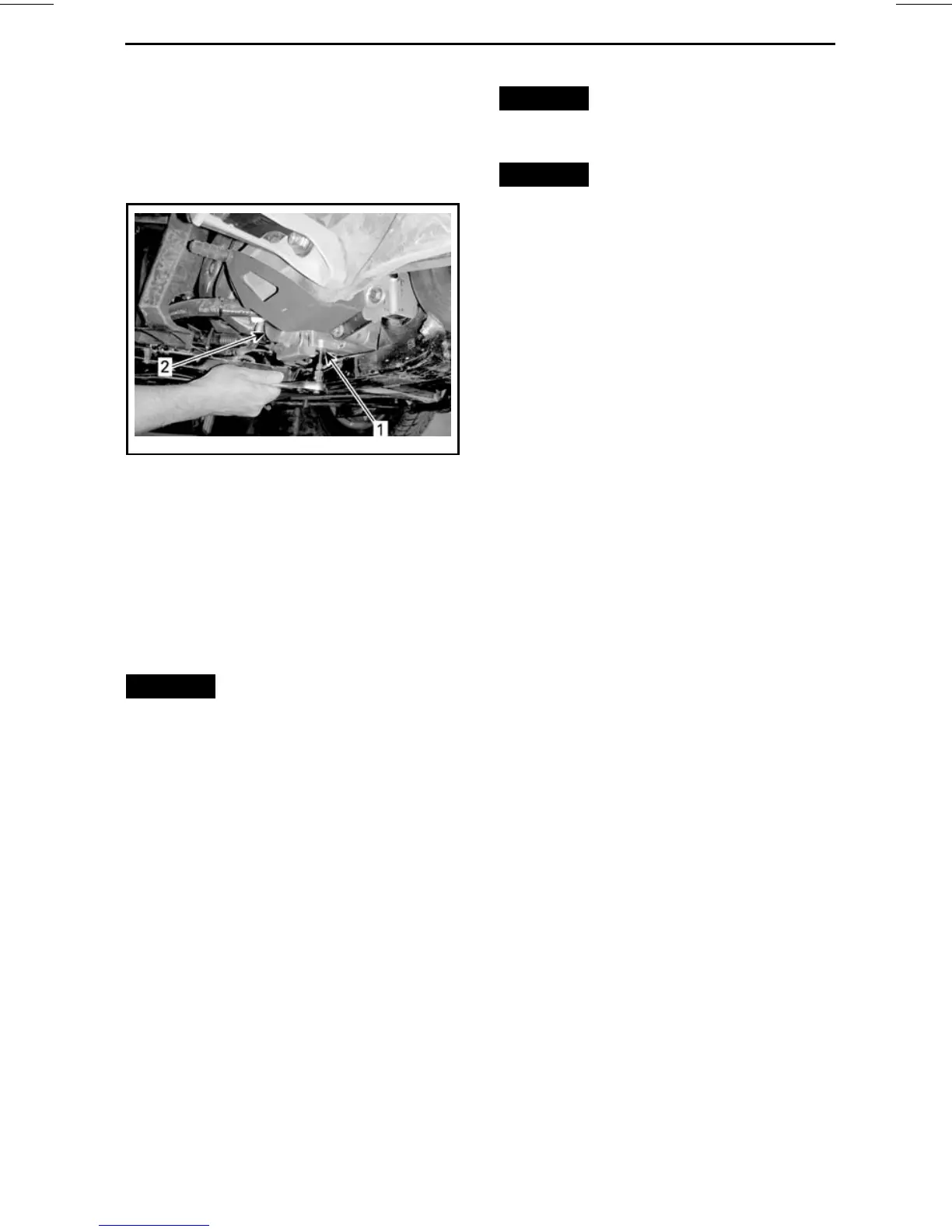

rmo2010-001-065_a
1. Engine oil drain plug
2. Oil filter cover
11. Allow sufficient time for oil to com-
pletely drain from crankcase.
12. Clean the magnet on the engine
drain plug.
13. Using NEW sealing washers,
install engine and oil tank drain
plugs.
NOTICE
Never reuse the drain
plug sealing washer. Always re-
place it with a new one.
14. Torque drain plugs (engine and oil
tank) 20 N•m (15 lbf•ft).
15. Replace engine oil filter. Refer to
ENGINE OIL FILTER
further in this
section.
SE5 Model
16. Replace HCM oil filter (SE5
model). Refer to
HCM OIL FIL-
TER
further in this section.
All Models
17. Pour 3 L (3 qt (U.S. liq.)) of the rec-
ommended oil into oil tank.
18. Start engine and let idle for two
minutes.
NOTICE
Do not rev up engine dur-
ingidlingperiodasthismaycause
permanent engine damage.
NOTICE
Ensure oil pressure warn-
ing lamp goes out within 5 seconds
from engine start. If oil pressure
warninglampstaysONformore
than 5 seconds, STOP ENGINE and
recheck oil level.
Checkforleaksat:
– Engine oil filter
– HCM oil filter
– Engine drain plug
– Oil tank drain plug.
19. Stop engine.
NOTE: The oil level dipstick is accu-
rate when the oil temperature is at
80°C (176°F). If the oil level is checked
when the oil is at room temperature
20°C (68°F), the proper oil level indi-
cation is half way between the lower
(ADD) and upper (F) marks on the dip-
stick. This must be considered to pre-
vent overfilling the oil tank.
SM5 Models
20. Add 1L (1 qt (U.S. liq.)) of the rec-
ommended oil in the oil tank (be-
tween 3.9 L (4.1 qt (U.S. liq.)) and
4.2 L (4.4 qt (U.S. liq.))total quan-
tity).
21. Check oil level immediately and ad-
just if required.
22. Reinstall all removed body panels.
23. Dispose of used oil as per your lo-
cal environmental regulations.
SE5 Model
24. Add 1.2 L (1.3 qt (U.S. liq.)) of the
recommended oil in the oil tank
4.2 L (4.4 qt (U.S. liq.)) total
quan-
tity).
25. Check oillevel immediate
ly and ad-
just if required.
