MAINTENANCE PROCEDURES

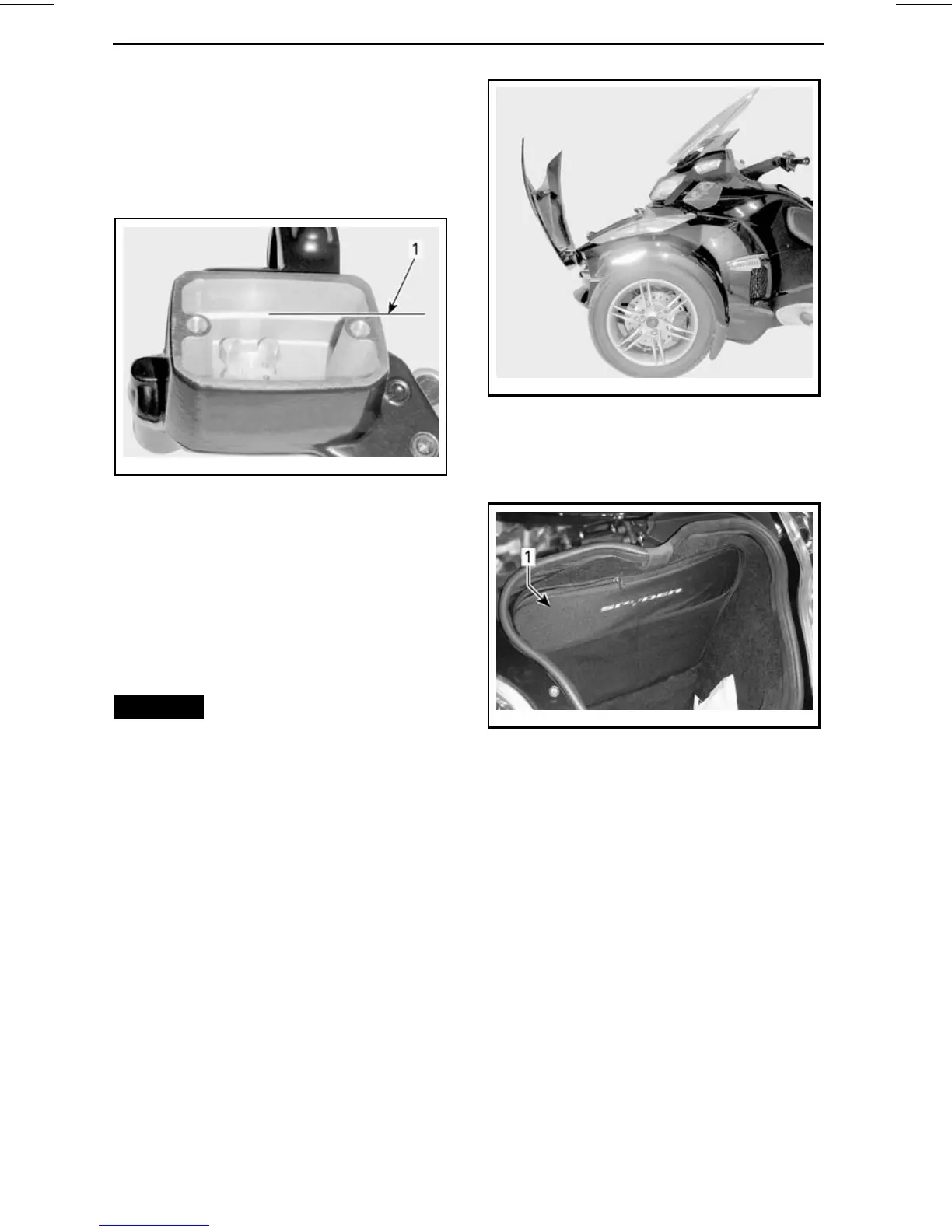

Check clutch fluid level inside the
reservoir:
– The fluid must be flush to the fill
level line (protuberance on the
reservoir wall).
rmo2010-001-006_b
FLUID REMOVED FOR CLARITY PURPOSE
1. Fill level line
Adding Clutch Fluid
1. If the fluid level is lower than spec-
ified, add fluid to the reservoir up
to the fill level line. Use only DOT 4
brake fluid.
2. Add fluid as required. Do not over-
fill.
NOTICE
Immediately wipe up any
spills.
3. Push back the seal located inside
the cap.
4. Reinstall the cap to the reservoir.
5. Tighten cap screws.
Battery
Battery Location
The battery is located in the front stor-
age compartment.
To access the battery, open the front
storage compartment.
rmo2010-001-044
FRONT STORAGE COMPARTMENT OPENED
Open the access cover.
Unzip the liner if applicable.
rmo2013-005-002_a
1. Liner
Loosen the screws and open the bat-
tery access panel.
To facilitate maintenance, additional
battery terminals are located under the
service cover on the left hand side.
134
