EQUIPMENT
Body Panels
The body panels on the vehicle can be removed for maintenance.
1
2 3
4 5
rmo2010-001-004_a

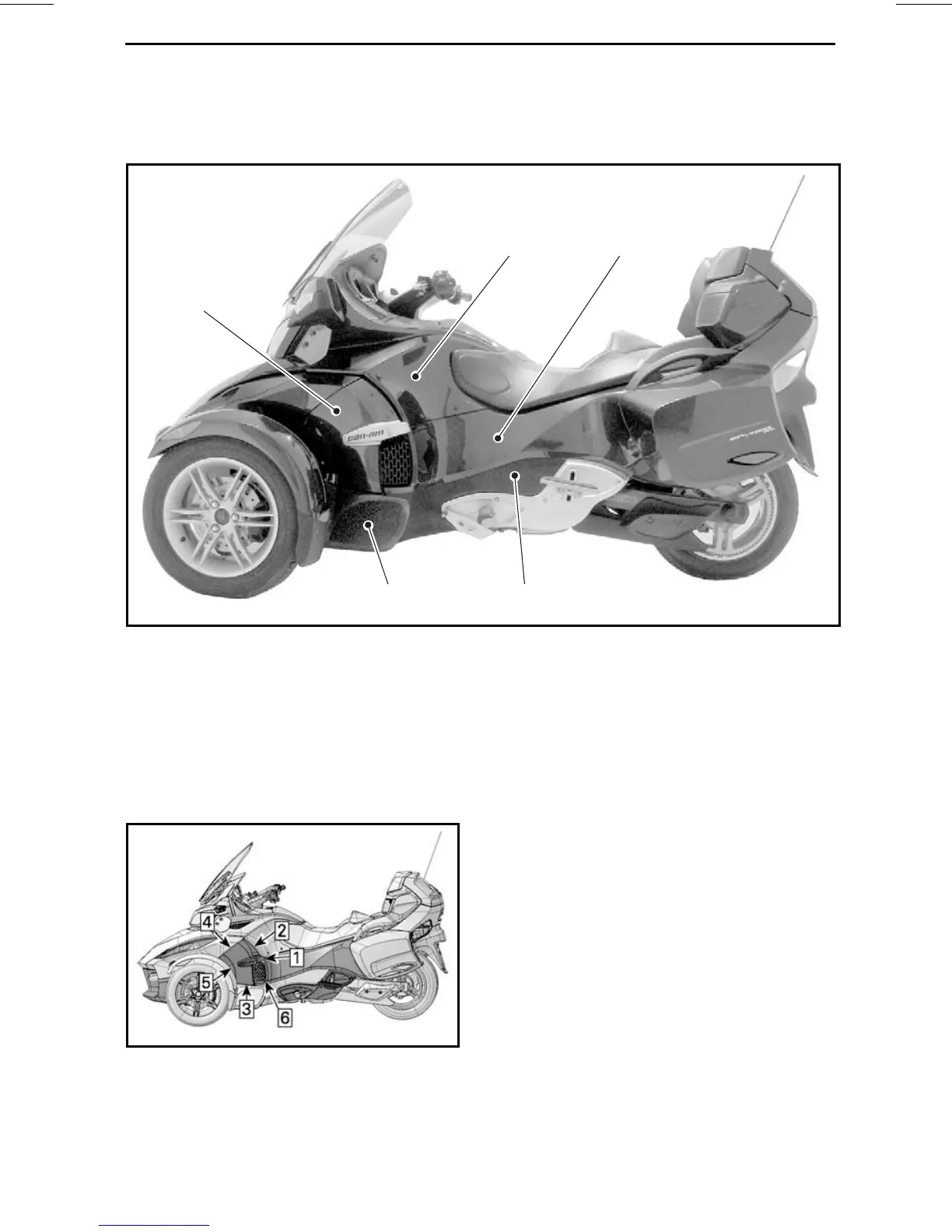

LEFT HAND SIDE PANELS
1. Side panel
2. Topsidepanel
3. Rear side panel
4. Bottom front side panel
5. Bottom rear side panel
Side Panel
Removal
rmo2010-008-003_d
REMOVAL SEQUENCE
1. Pull the rear of panel out of its grom-
met.
2. Slide down the top of the panel to
free panel hook.
3. Pullthe bottomof the paneloutof its
grommet.
4. Pull the front of the panel out of its
grommet.
5. Slide the front of the panel to re-
move it.
6. Remove the grille.
