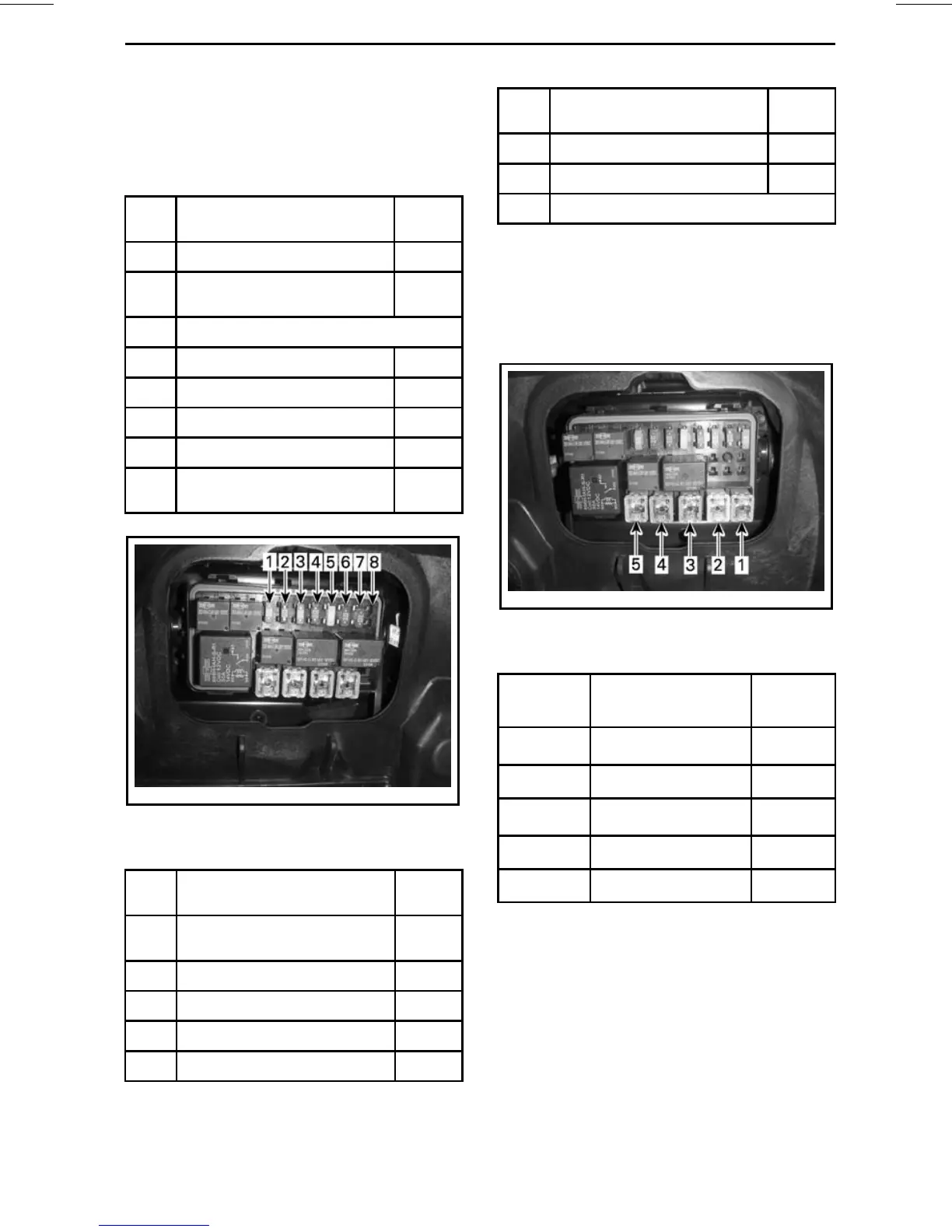

BRP Spyder RT - HOW to REPLACE FUSES and LIGHTS (ContD)

HOW TO REPLACE FUSES AND LIGHTS
NOTE: Refer to decal located be-
tween both fuse boxes for correct
identification.
Left Fuse Box
FUSE
NO.
DESCRIPTION RATING
1
Cluster / DLC / DESS 15 A
2
Wake-up ECM / VCM/ MSR
andDESS/SAS/YAS/PRS
10 A
3
NOT USED
4
WPM / PBM 20 A
5
ECM 5 A
6
Injectors / Coils 15 A
7
Wake-up TCM, DPS / Cluster 10 A
8
H02S / CAPS / Fuel pump /
EVAP / CSV
15 A
rmo2013-005-004_a
FUSES-RIGHTFUSEBOX
Right Fuse Box
FUSE
NO.
DESCRIPTION RATING
1
Days lights / Parking lamps /
Plate lights
15 A
2
Brake lights / Hazard 10 A
3
Radio 15 A
4
Trailer 10 A
5
Load shedding 20 A
FUSE
NO.
DESCRIPTION RATING
6
DC plugs VKEY 10 A
7
Plugs VBAT 10 A
8
NOT USED
NOTE: When fuse 6 is installed, 12 V
power outlet is only operational when
ignition switchis at ON position. When
fuse 7 is installed, 12 V power outlet is
always operational.
rmo2013-005-005_b
JCASE FUSES - LEFT FUSE BOX
Left JCase Fuse Box
JCASE
FUSE NO.
DESCRIPTION RATING
1
Cooling fan(s) 30 A
2
Main control 40 A
3
DPS 40 A
4
MVCM valves 25 A
5
VCM pump 40 A
______________
153
