MAINTENANCE PROCEDURES

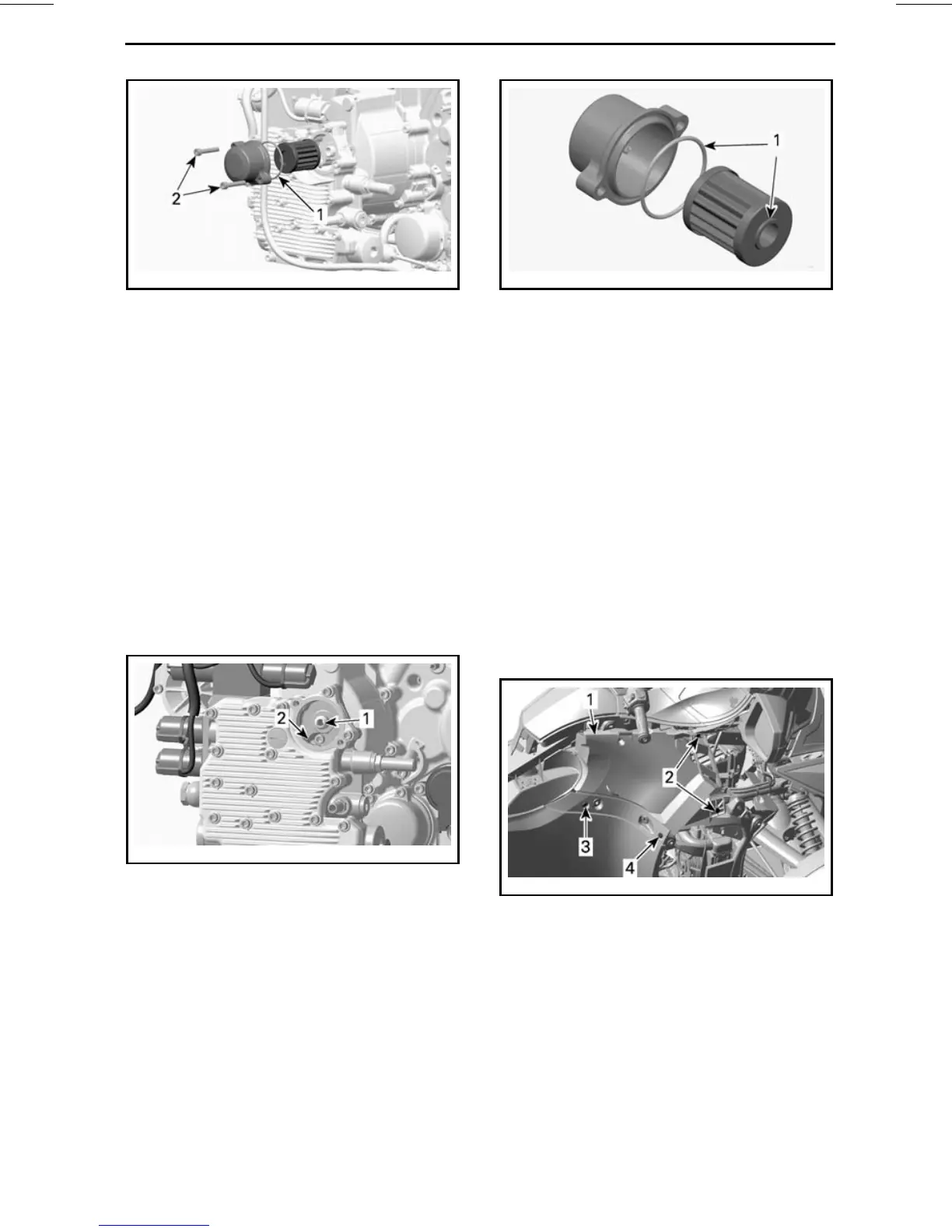

rmo2013-005-014_a
1. Oil filter cover
2. Cover screws
2. Remove oil filter cover with O-ring.
Discard O-ring.
3. Remove oil filter.
4. Dispose filter as per your local envi-
ronmental regulations.
HCM Oil Filter Installation
The installation is the reverse of the re-
moval procedure. Pay attention to the
following.
1. Check and clean the oil inlet and out-
let orifices in hydraulic control mod-
ule for dirt and contaminations.
rmr2008-077-003_a
1. Oil outlet orifice to the hydrau
lic control
module lubrication system
2. Oil inlet orifice to the oil pump
2. Install a NEW O-ring on oil filter
cover.
To ease assembly and prevent dis-
placement of the O-ring during instal-
lation, apply a light coa
tofoilontheoil
filter and O-ring, refer to following illus-
tration.
rmo2013-005-013_a
1. Apply oil here
Air Filter
AirFilterRemoval
1. Remove the following body pan-
els. Refer to
BODY PANELS
in the
EQUIPMENT
subsection.
–RHsidepanel.
– RH top side panel.
2. Remove both screws on the right
side of the acoustic panel.
3. Remove the left-most screw from
therearsidepanel.
4. Remove the dart from the rear side
panel.
rmo2010-001-103_a
1. Acoustic panel
2. Retaining screws on right side
3. Left-most screw of rear side panel
4. Dart on rear side panel
Releasethe3retainingclipsfromthe
air filter cover.
______________
131
