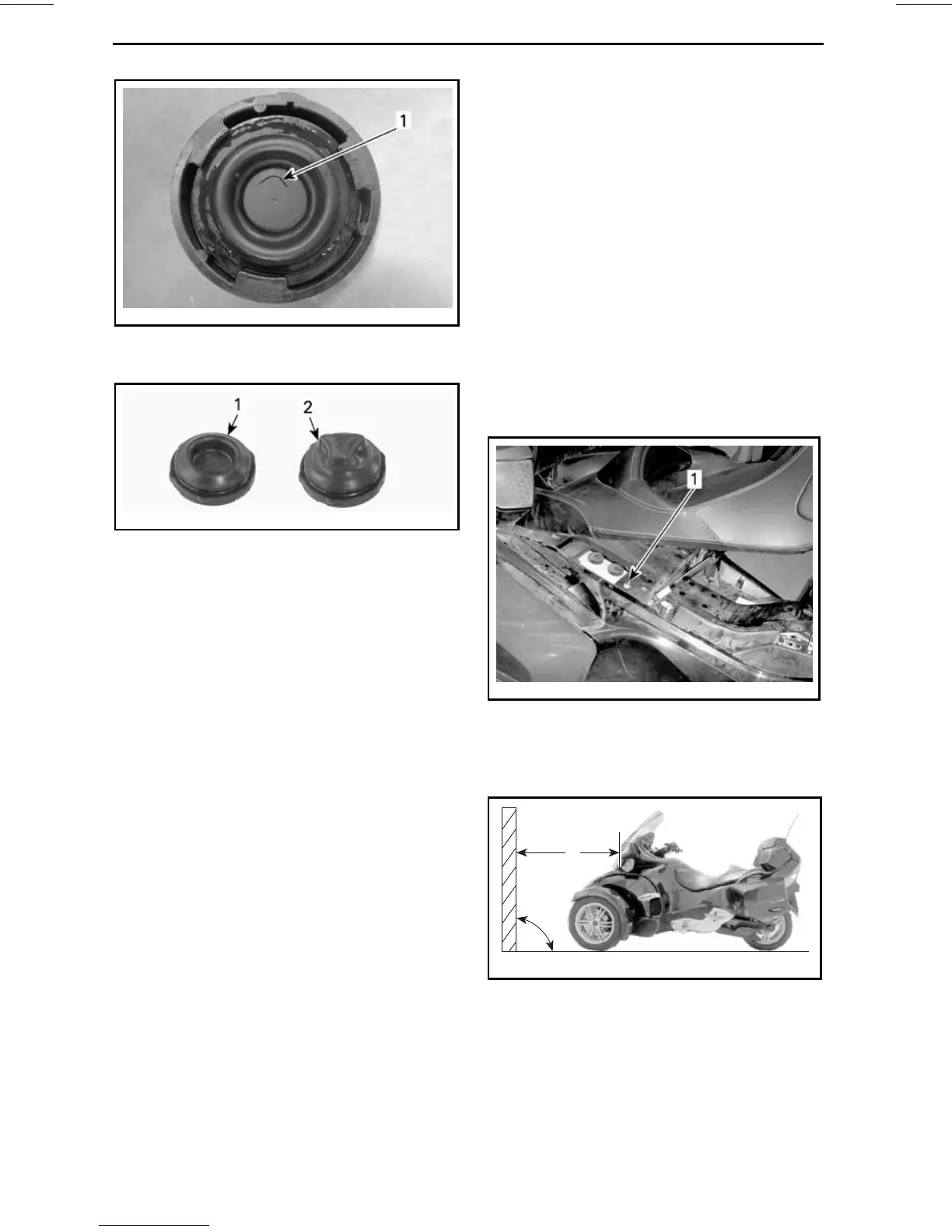

MAINTENANCE PROCEDURES
rbg2008-003-002_a
TYPICAL
1. V slit
vmr2008-033-062_a
TYPICAL
1. Correct position
2. Wrong position
3. Close the seat and ensure it is fully
latched.
Brake System Verification
The front and rear brakes are hy-
draulic disc types. These brakes are
self-adjusting and do not require ad-
justment.
The brake pedal also requires no ad-
justment.
To keep brakes in good condition,
check the following as per the
MAIN-
TENANCE SCHEDULE
:
– Entire brake system for fluid leaks
– Brake pedal for spongy feel
– Brake discs for excessive wear and
surface condition
– Brake pads for wear, damage or
looseness.
RT-S and RT LTD SE5 Models
1. Release the latch underneath the
floorboard.
2. Pivot the floorboard by manually
pushing down its front part.
3. Flip back the floorboard until it
latches. The mechanism must
work freely.
See an authorized Can-Am roadster
dealer if there are any problems with
the brake system.
Headlights and Fog Lights
Headlights Aiming Verification
1. Set the rear suspension air pressure
to 0 kPa (0 PSI) using the schrader
valve located under the seat.
rmo2010-001-056_a
1. Schrader valve
2. Position the vehicle in front of a test
surface as shown.
90°
A
rmo2010-001-007_b
A. 10 m (33 ft)
140
