BRP Spyder RT - Page 52

EQUIPMENT
Installation
rmo2010-008-003_e

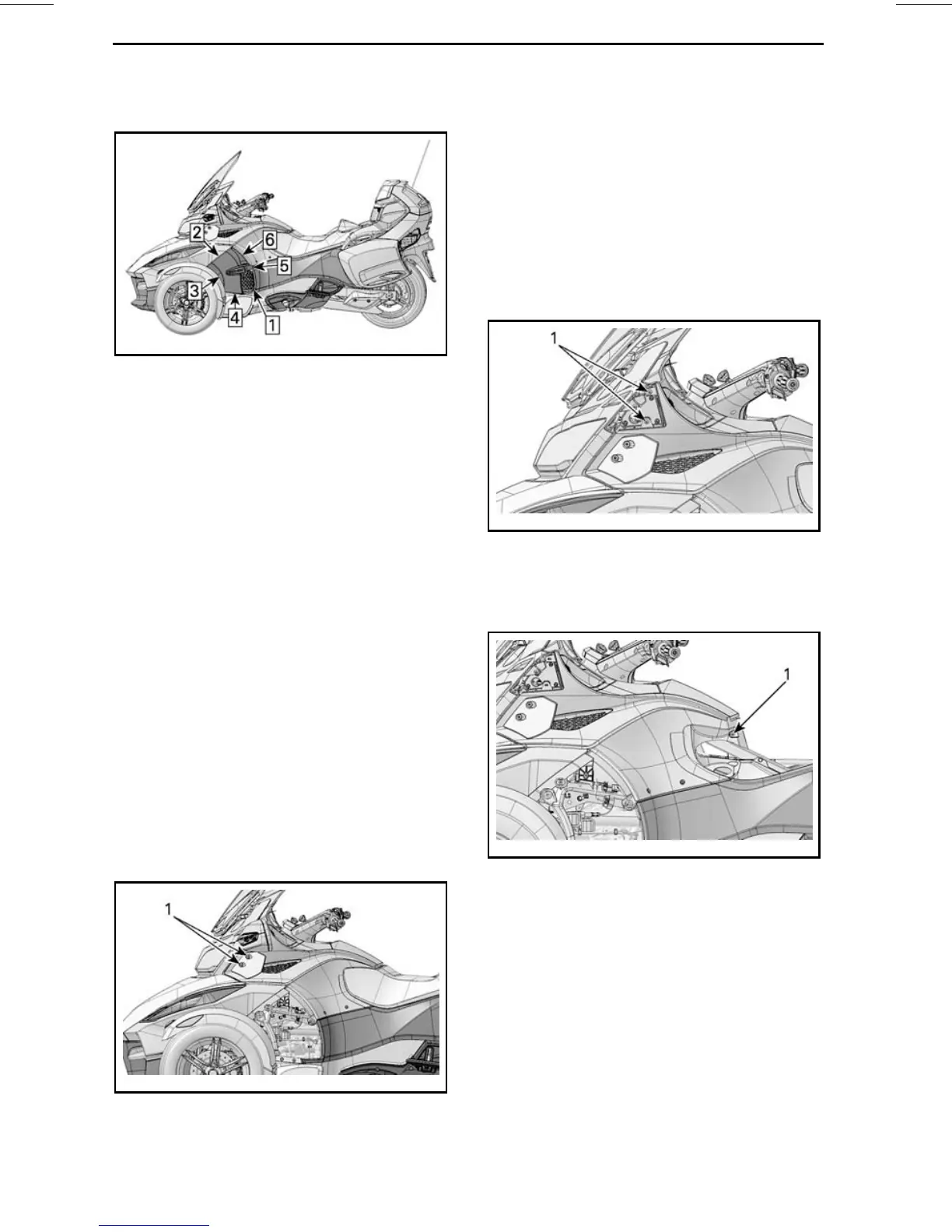

INSTALLATION SEQUENCE
1. Install the grille on the panel.
2. Push the front of panel in its grom-
met.
3. Rotate the panel and clip it on the
support.
4. Push the bottom of the panel in its
grommet.
5. Push the rear of the panel in its
grommet.
6. Push the top of the panel to fix the
plastic hook.
Top Side Panel
Removal
1. Open seat.
2. Open front storage compartment.
3. Remove side panel.
4. Remove retaining screws from
lower wind deflector.
rmr2010-038-004_a
1. Retaining screws of wind deflector
5. Remove mirror:
5.1 Push firmly the bottom to the
top the outermost part of the
mirror to disengage the two
bottom studs.
5.2 Remove carefully the mirror
from the top stud.
6. Remove upper retaining screws
from top side panel.
rmr2010-038-005_a
1. Upper retaining screws
7. Remove rear retaining screw from
top side panel.
rmr2010-038-006_a
1. Rear retaining screw
8. Remove left service cover by re-
moving plastic rivet.
50
