TRANSPORTING THE VEHICLE
rmo2008-001-069_a

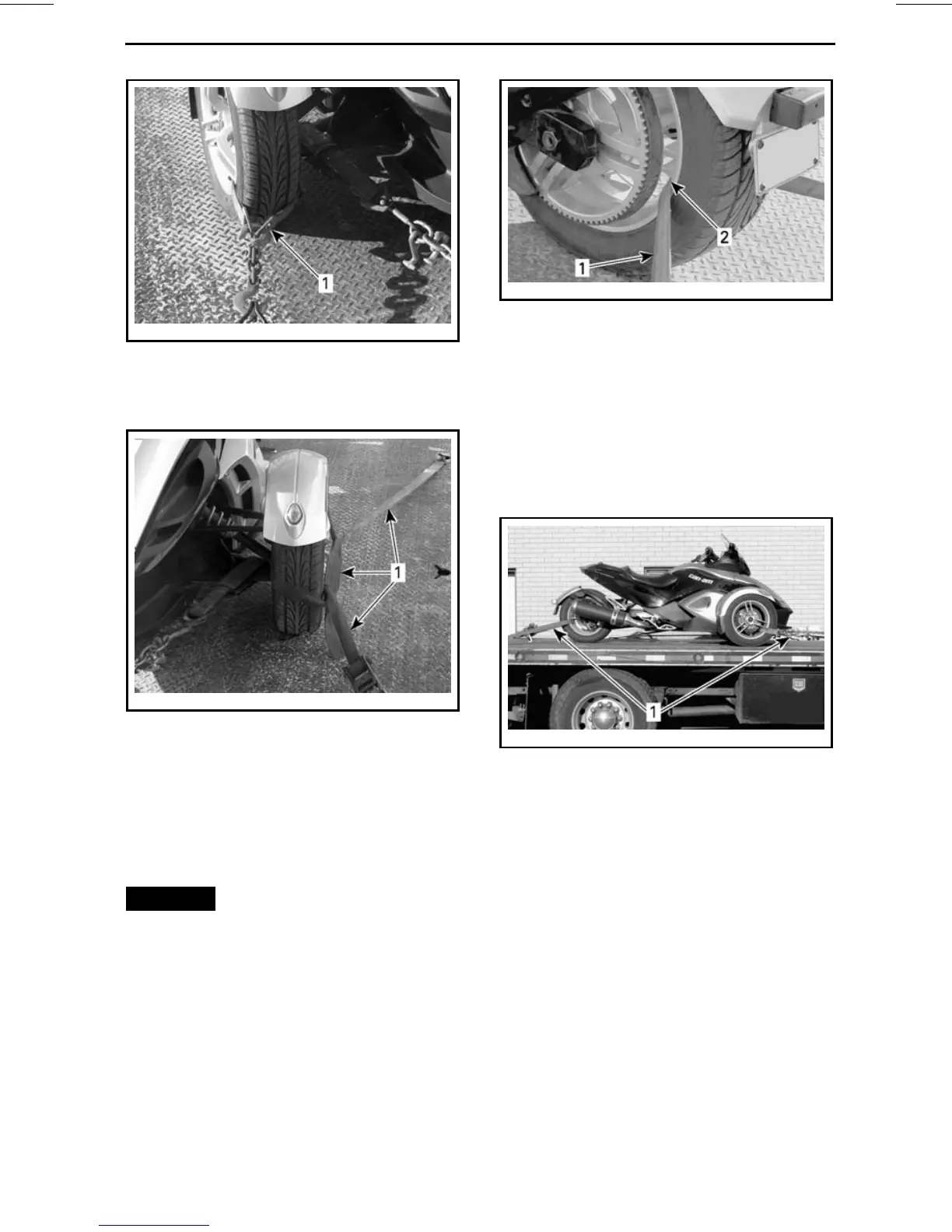

TYPICAL FRONT WHEELS ATTACHMENT —
METHOD 1
1. Strap around the rim of each front wheel
and attached to the front of trailer
rmo2008-001-073_a
TYPICAL FRONT WHEELS ATTACHMENT —
METHOD 2
1. Strap around each wheel and fixed to the
front and rear of trailer
10. Pass a tie-down strap inside the
rear wheel rim only. Do not pass
the tie-down strap inside the rear
sprocket.
NOTICE
Passing the tie-down
strap inside the rear sprocket may
seriouslydamagethedrivesystem.
rmo2008-001-067_a
TYPICAL REAR WHEEL ATTACHMENT
1. Tie-down strap
2. Inside rear wheel rim ONLY
11. Firmly attach the rear wheel
tie-down strap to the rear of the
trailer with a ratchet.
12. Ensure that both the front and rear
wheelsarefirmlyattachedtothe
trailer.
rmo2008-001-072_a
TYPICAL
1. Front and rear wheel firmly attached to
trailer
______________
161
