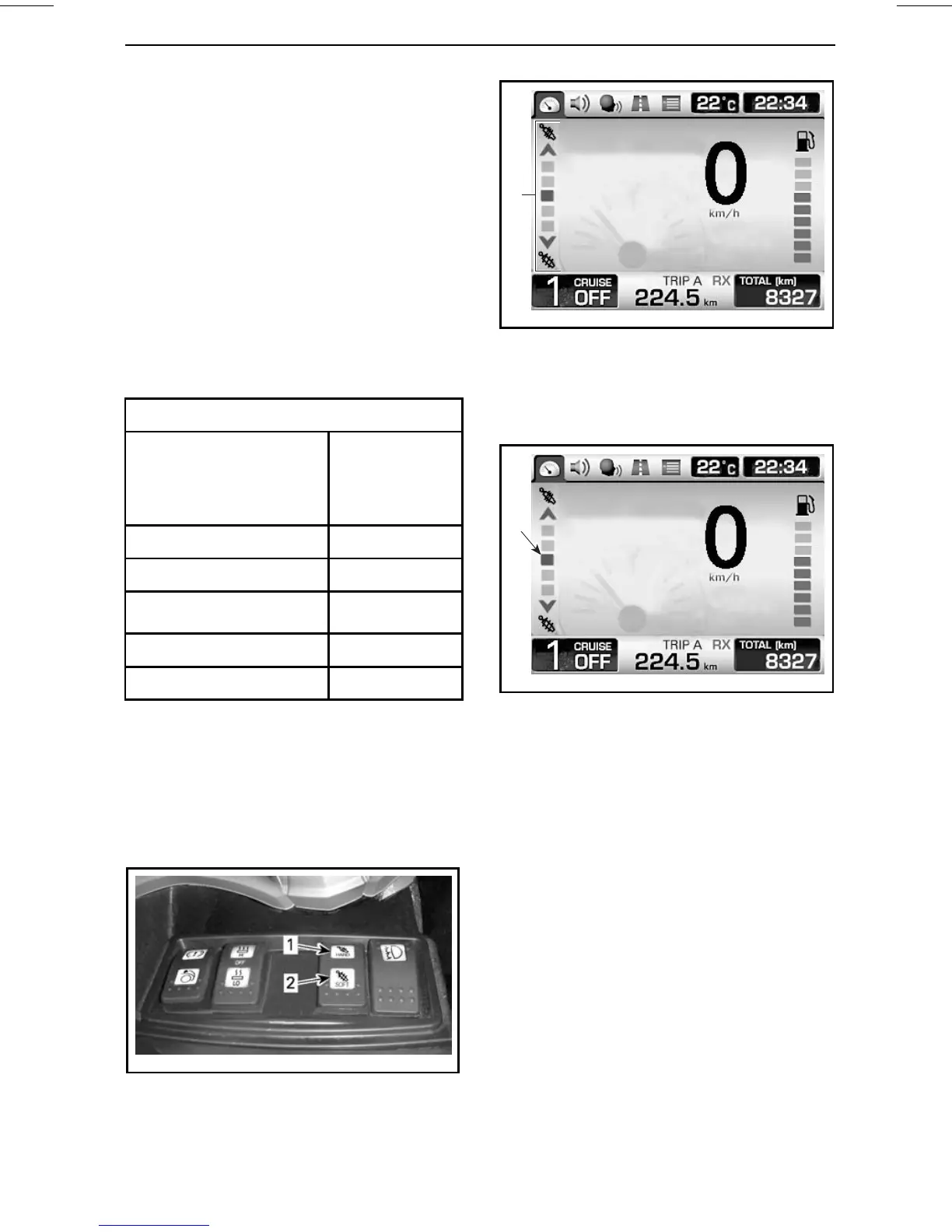

BASIC PROCEDURES
NOTE: It is normal to hear pressure re-
leaseortheaircompressoroperating
while engine is running. It indicates
the suspension is self-adjusting.
Ifthedriverdesiresasofterorastiffer
adjustment than the factory setting,
he can adjust the rear suspension by
pressing the ACS switch in the switch
cluster. By changing the ACS setting,
air pressure in the air spring will change
to provide a customized suspension
adjustment.
The following suspension settings are
available.
ACS SUSPENSION SETTINGS
BAR GRAPH
INDICATION IN
MULTIFUNCTION
GAUGE
RIDING
POSITION
1(top) Lowest
2 Low
3Middle
4
High
5 (bottom) Highest
Adjusting Suspension
(while Riding)
1. Press the ACS switch once (either
UP or DOWN). The digital display
will enter the suspension adjust-
ment mode.
rmo2010-001-038_i
1. Press here to stiffe
n
2. Press here to soften
1
rmo2010-001-400_aen
SUSPENSION ADJUSTMENT MODE
1. Suspension settings
2. The highlighted bar indicates the ac-
tual setting.
1
rmo2010-001-400_ben
1. Actual setting
3. Pressing the switch UP or DOWN
will move the highlighted bar ac-
cordingly one at a time. Releasing
the switch will keep the set point
after a few seconds.
Adjusting Suspension
(when Vehicle is Stopped)
Follow the same instructions as for
ADJUSTING SUSPENSION (WHILE
RIDING)
.
However the following conditions
must be met:
– Engine running
– Brakes applied
– Parking brake released
– Gearbox not in neutral.
_______________
59
