3.4 Safety installations / power limitations
3.4.1 Interlock
INFORMATION
The pins IL1 and IL2 on the control connector must be connected and evaluated by the customer for
this.

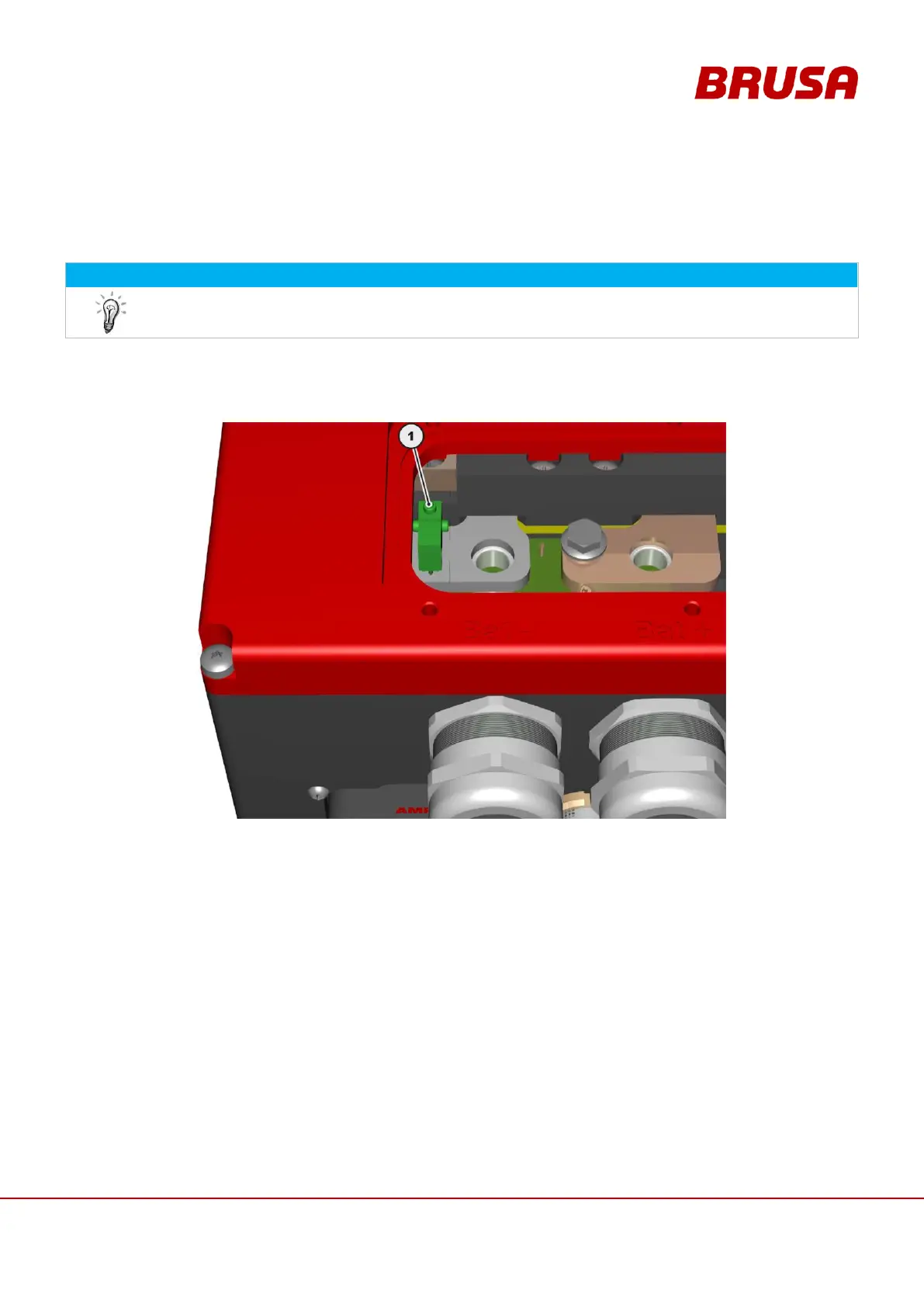

The interlock switch (1) protects the operator from injuries from the HV connections. The interlock switch (1) is
automatically activated as soon as the service cap is opened.
1. Interlock switch
3.4.2 Short-circuit protection
If a short-circuit of the power output stage is detected (e.g. short circuit of the motor phases) then the power output
stage is immediately deactivated. A corresponding error is detected over CAN. The error must be confirmed before
further operation.
