Brusa DMC524 - Operation of the Inverter Through CVI

59
Technical data
and startup
10 Operation of the inverter through CVI
INFORMATION

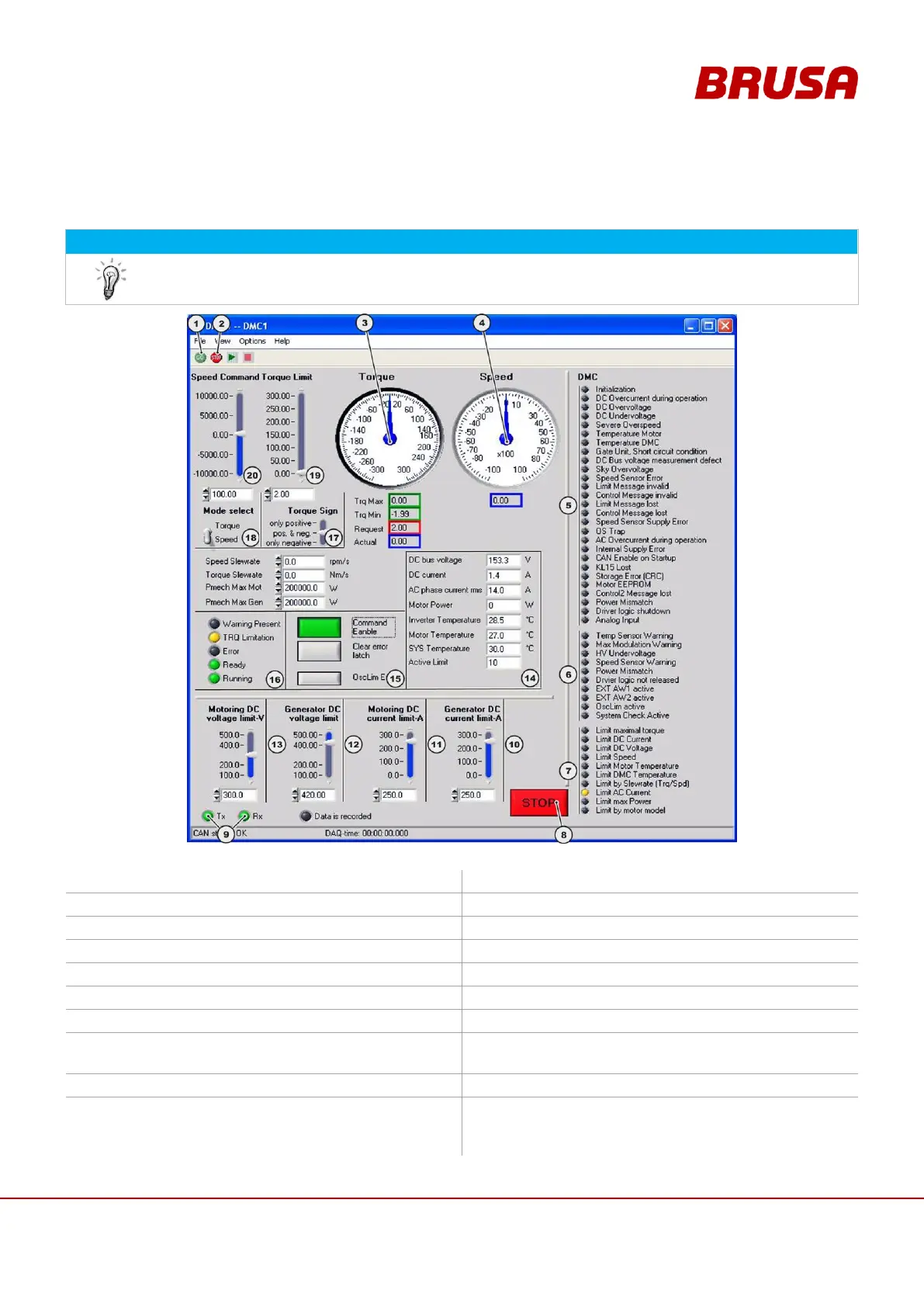

The chapter is only relevant if you are working with the supplied CVI software CANAP_DMC5 !
1.
Activation of the CAN communication
2.
Deactivation of the CAN communication
3.
Torque
4.
Speed (number of revolutions)
5.
Error messages
6.
Warning messages
7.
Limitations
8.
Stop button (deactivate motor)
9.
CAN connection status
10.
Generator DC-current limitation value
11.
Motor DC-current limitation value
12.
Generator DC-voltage limitation value
13.
Motor DC-voltage limitation value
14.
Display of different actual values
15.
Command enable = switch output stage on/off
Clear error latch = confirm error message
16.
Status reports
17.
Selector switch for torque signs
18.
Selector switch for speed mode or torque mode
19.
Torque limit (the desired value can be set and/or
entered either at the slide control or in the input
field below).
20.
Default speed (the desired value can be set and/or
entered either at the slide control or in the input
field below).
