Brusa DMC524 - Pin 19 IL1, Pin 20 IL2 (Interlock 1 + 2)

Technical data
and startup
46
8.3.8 Pin 19 IL1, Pin 20 IL2 (Interlock 1 + 2)
DANGER
High voltage!
Danger to life!
The bypassing or short-circuiting of safety installations can result in fatal dangers through high
voltage!
The interlock is a security installation and under no circumstances can it be disabled or bypassed!
INFORMATION
This function must be implemented by the customer by connecting and assessing both pins (pin 19
IL1 and Pin 20 IL2)!
The interlock switch is automatically activated as soon as the service cap is opened.
As a result, the high voltage connections will be forced to disconnect immediately! See chapter
3.4.1 Interlock.

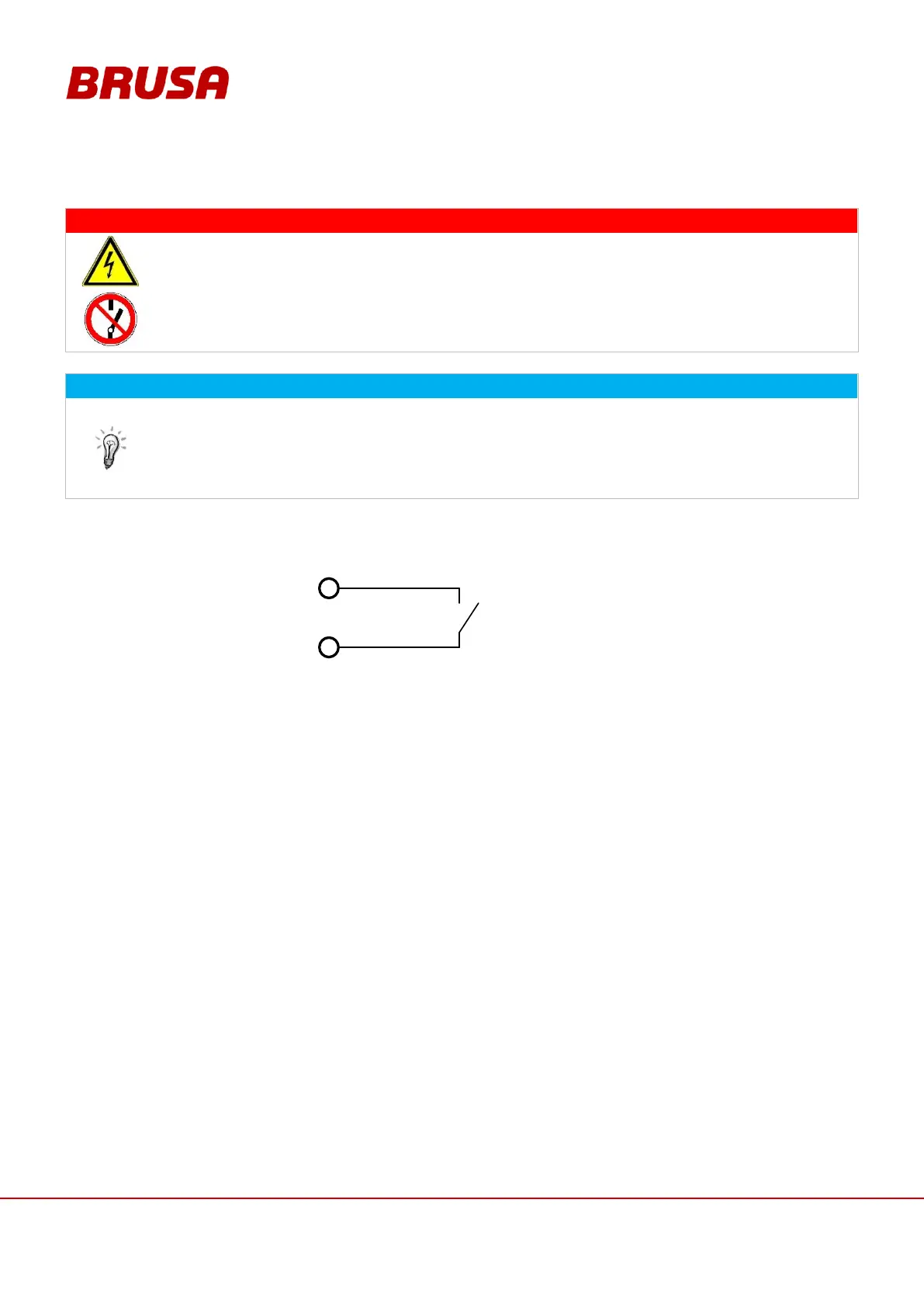

Internal wiring
Pin 20 IL2
Pin 19 IL1
Switch opened if service
lid is open
Max switching voltage = 32 V
Max switching current = 30 mA
