Brusa DMC524 - Pin Assignment Motor Sensor Connection (Device Side)

39
Technical data
and startup

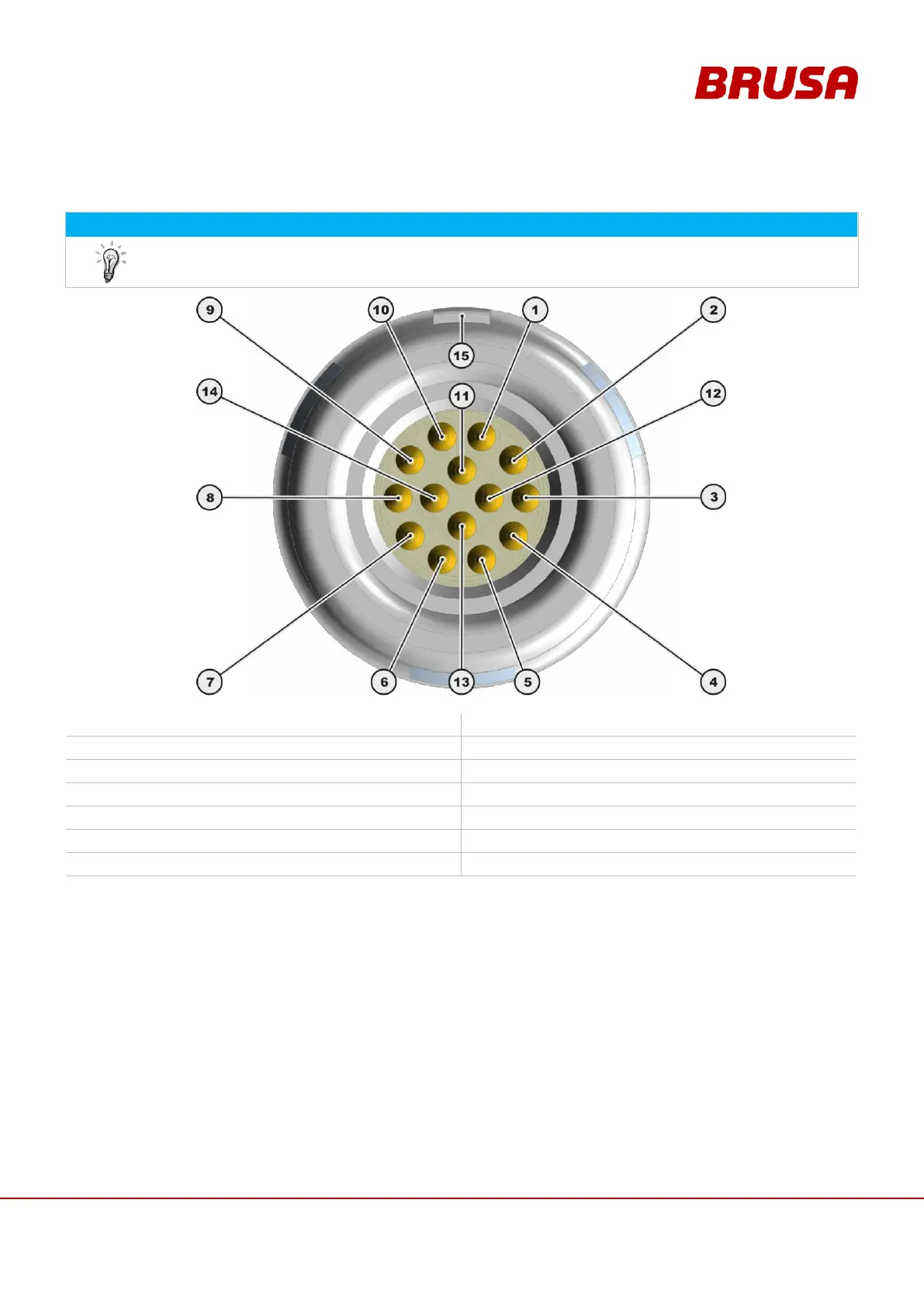

8.2 Pin assignment motor sensor connection (device side)
INFORMATION
The pin assignment of the motor sensor connection is BRUSA specific and deviates from the
standard pin assignment standards of the cable manufacturer!
1.
POS3
6 bit absolute position bit 3
2.
POS4
6 bit absolute position bit 4
3.
POS5
6 bit absolute position bit 6
4.
GND-NTC
Ground NTC / PTC
5.
NTC
Motor temperature sensor
6.
PTC
Motor overheat switch-off
7.
VCC-GEB
Motor sensor- supply voltage 6 V
DC
8.
POS0
6 bit absolute position bit 0
9.
POS1
6 bit absolute position bit 1
10.
POS2
6 bit absolute position bit 2
11.
GND
Ground
12.
MOTB
Motor B (incremental)
13.
MOTA
Motor A (incremental)
14.
UPD
Position update data
15.
–––
Centering groove
