Brusa DMC524 - Delivered Mechanical Components

Technical data
and startup
18

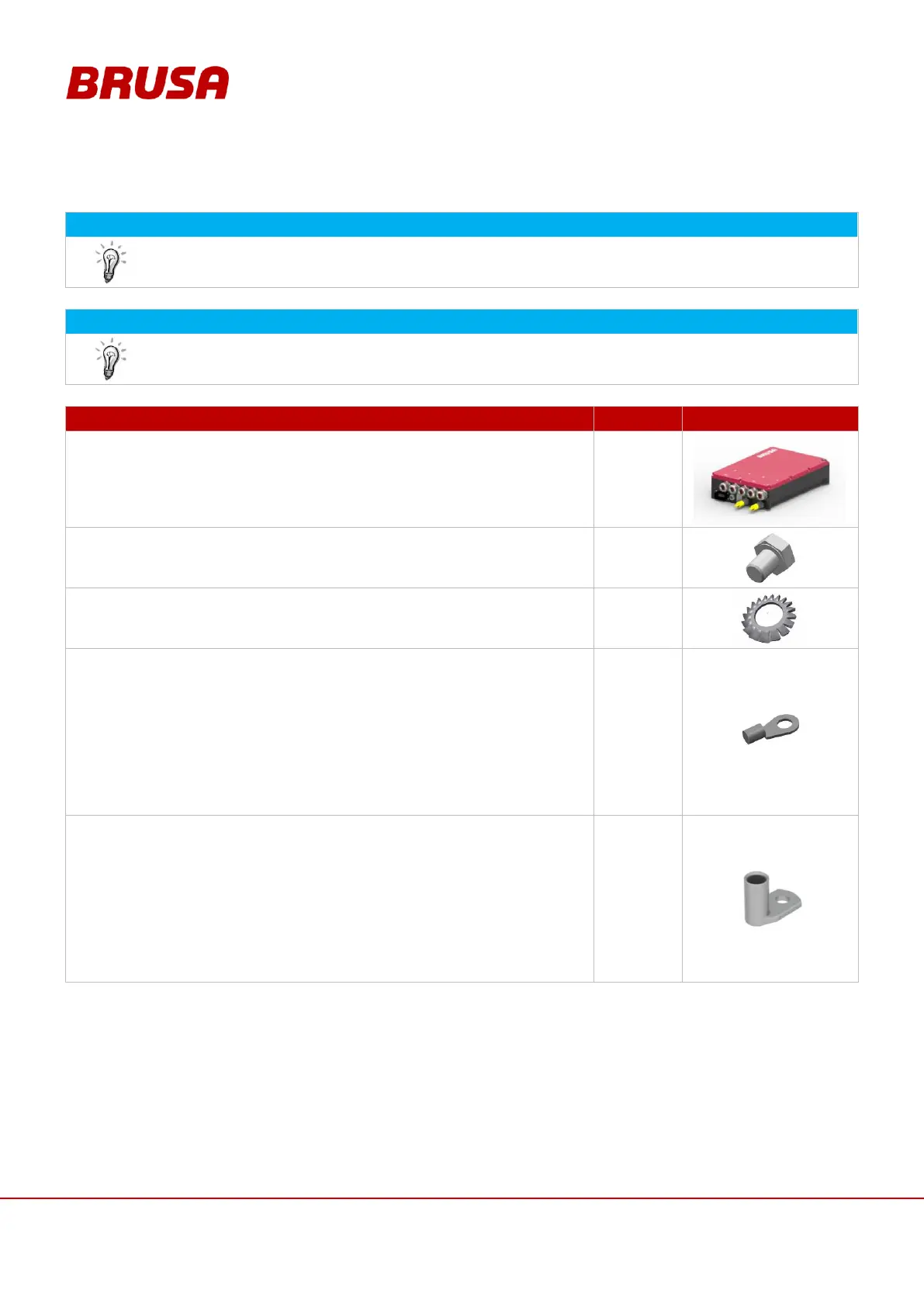

4.3 Delivered mechanical components
INFORMATION
The components stated below are contained in the delivery and are necessary for the start-up! In the
case of possible missing parts, please refer to the manufacturing address given in chapter 4.6.
INFORMATION
For the DMC544, you can use the same cable lugs as for the DMC534. The diameter of 70mm
2
cables fits without problems into 50mm
2
cable lugs and is qualified by BRUSA Elektronik AG.
MEANING
PIECES
ILLUSTRATION
1.
DMC5x4 inverter
1
2.
M8 x 10 screws for the cable lugs
6
3.
M8 serrated lock washer for M8 x 10 screws
6
4.
Cable lugs (compression cable lugs)
for HV and motor cables
M8 x 25 mm
2
without insulation (DCMC514)
VOGT AG type. 3575A
M8 x 35 mm
2
without insulation (DCMC524)
VOGT AG type. 3584A
M8 x 50 mm
2
without insulation (DCMC534 and DMC544)
VOGT AG type. 3590A
5
5.
Cable lug (compression cable lugs)
for grounding
M8 x 25 mm
2
90° without insulation (DCMC514)
GLOMAR AG type. DIN-25-08-W
M8 x 35 mm
2
90° without insulation (DCMC524)
GLOMAR AG type. DIN-35-08-W
M8 x 50 mm
2
90° without insulation (DCMC534 and DMC544)
GLOMAR AG type. DIN-50-08-W
1
