38

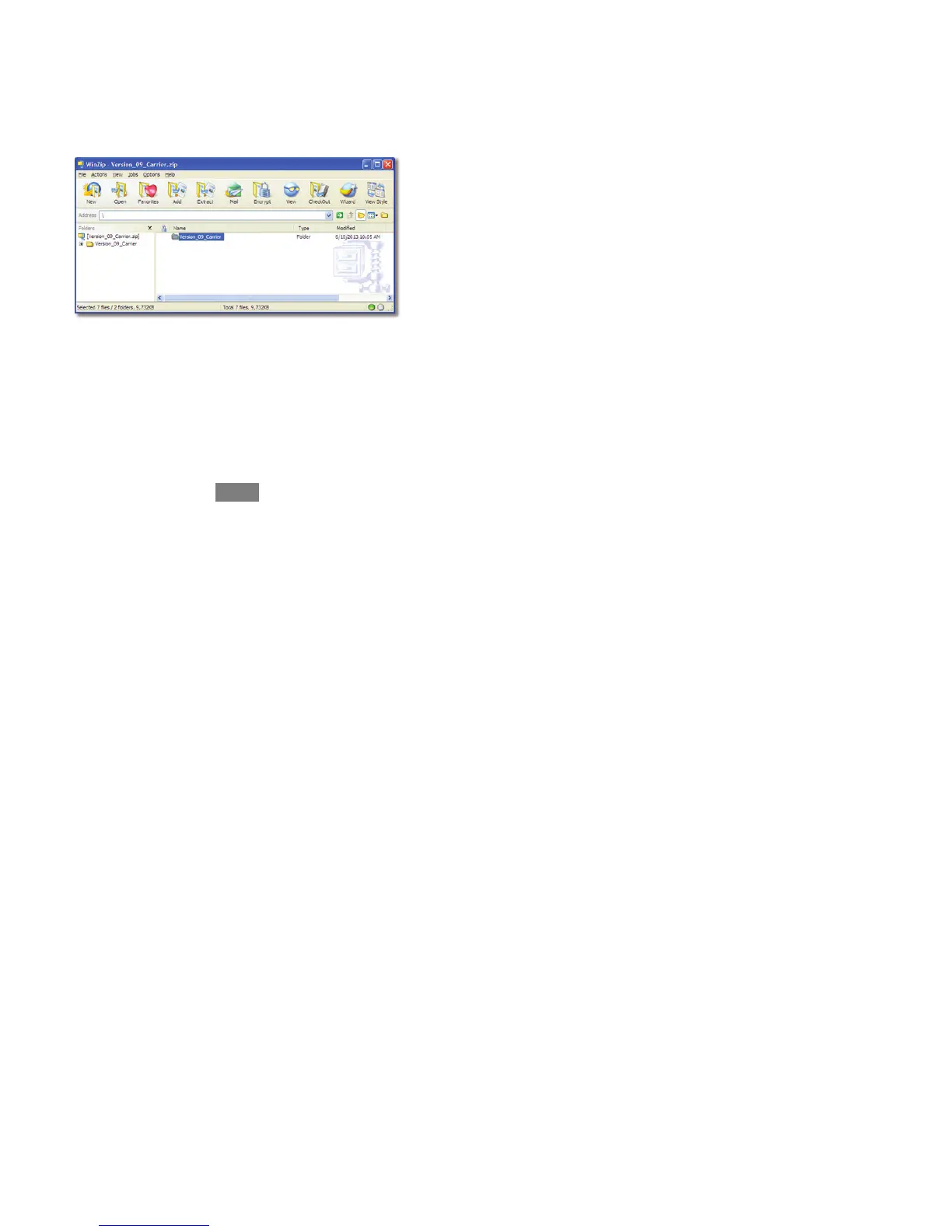

S Highlight the TSTAT folder in the WinZip window by clicking on the
folder icon ONCE to highlight the proper folder to be downloaded to the
USB drive. Then click on EXTRACT.
S Choose the USB memory device root directory as the location to extract
the folder from the zip file. When the download is complete, the TSTAT
folder will appear on the root directory of the USB device. Verify that
the files, including the “.hex” file, have been extracted into the TSTAT
folder of the USB drive.
A13254
S Plug the USB into the bottom of the Evolution Connex wall control and
clickontheUPDATE SOFTWARE USING USB.
S Press Yes to continue with the software upgrade. The upload and instal-
lation will take several minutes.
S When the software upgrade is complete, a “successful” message will
appear. Click DONE.
