20.0 Option Transformers
Provision is made internally for transformers to be fitted to the electronically
balanced inputs if required. Refer to the spare parts information sheet at the
rear of this manual for details on required parts. You will need one transformer
for each channel. The transformers are easily fitted onto the main PCB in the
positions shown (See figure 20.1). The orientation must be such that the white
'spot' on the transformer corresponds with the ring printed on the circuit board.
Wire links LK101, LK102, LK201 and LK202 must also be cut.
Option Transformers

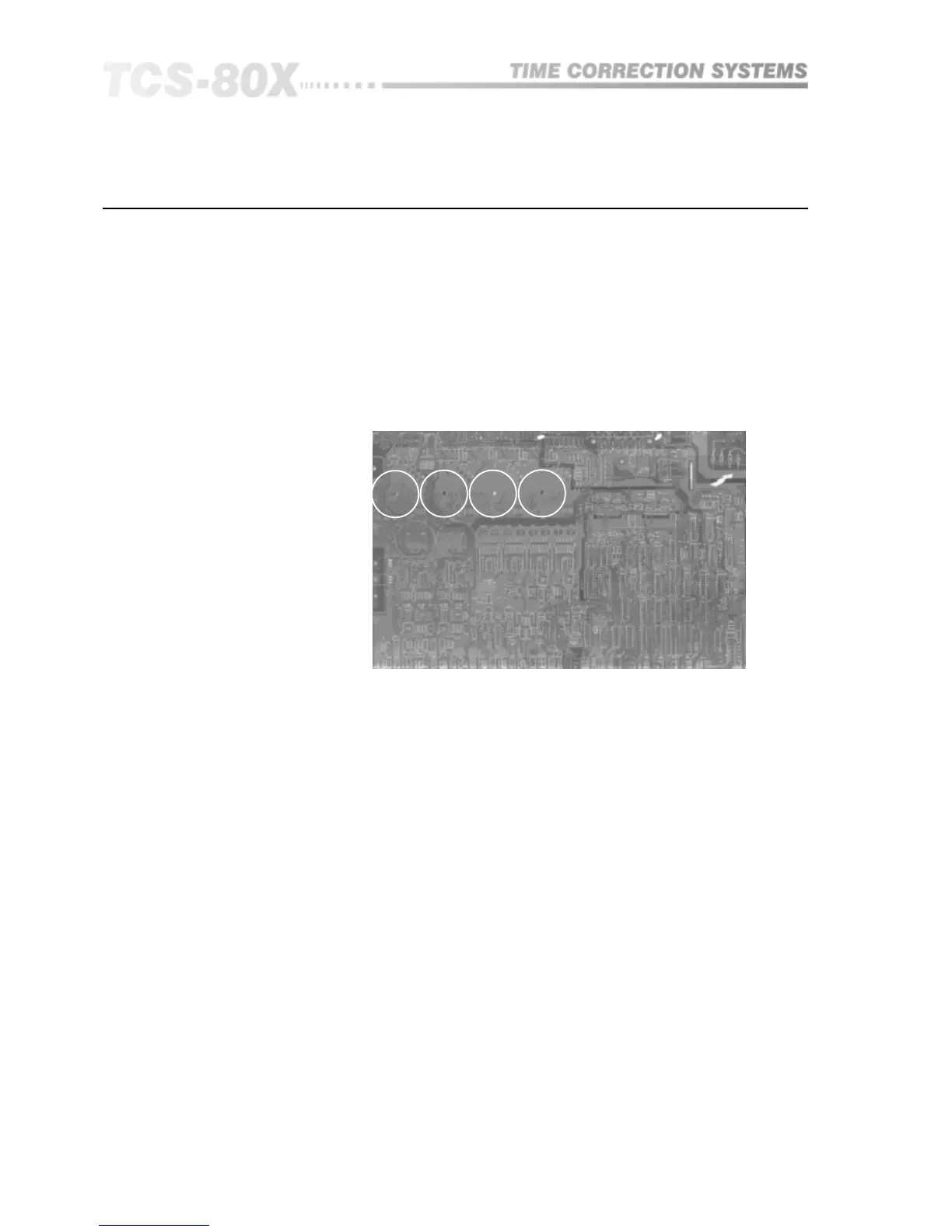

Fig 20.1 Transformer
Option Location
