BST ekr CON 600 net Installation And Operating Manual

Design and Function
3
ekr CON 600, ekr CON 600 net – Application with Wide Array Edge Sensors 11/39
3.3.3 Measuring Range
The measuring range of a wide array edge sensor is the range in
which the sensor detects web edges.
Transducer
Fork width
Measuring range
Web of material

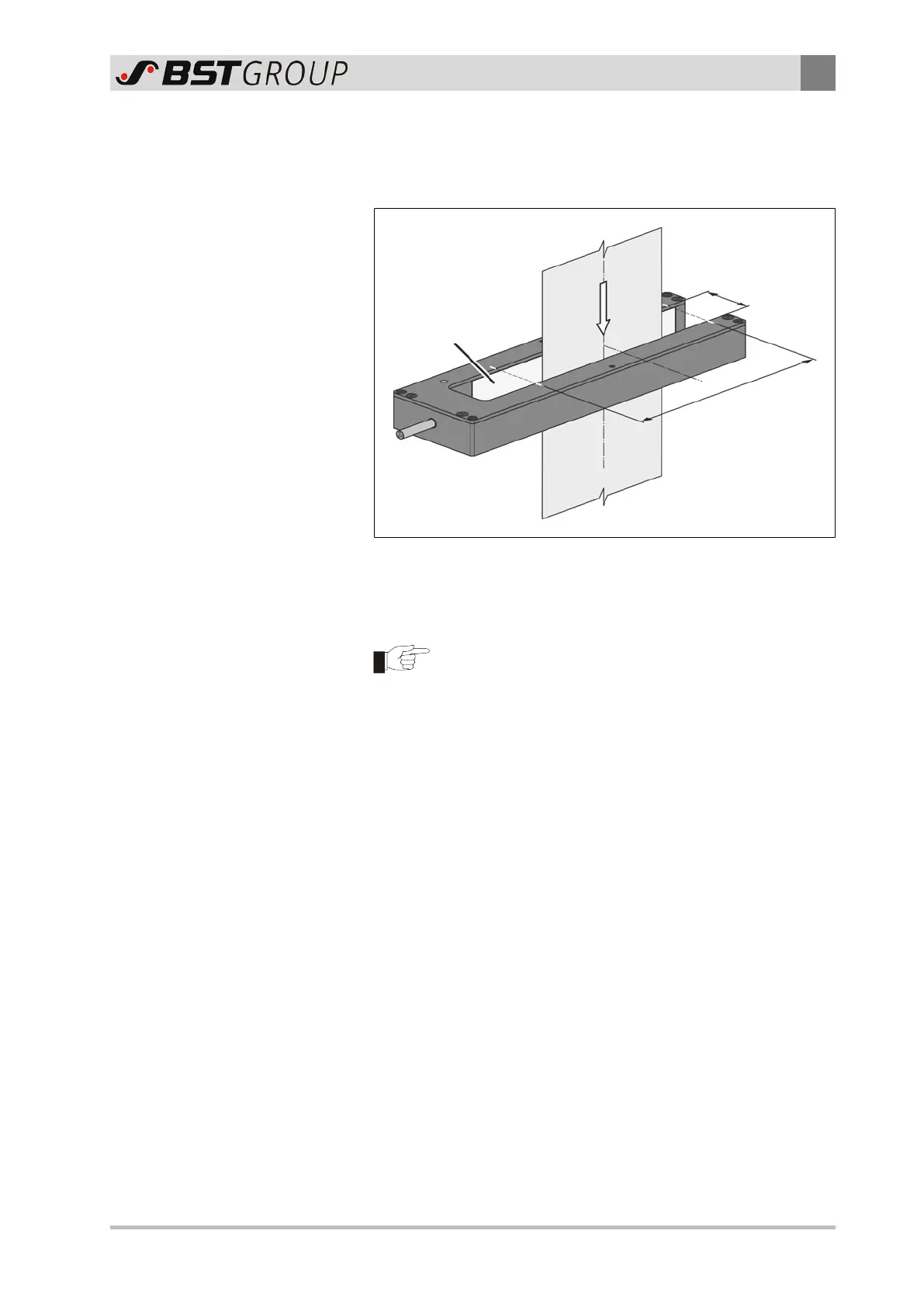

Fig.2: Marking of the sensor measuring range
The measuring range is marked by the white lines on the housing
of the wide array edge sensor.
Web edges that should be detected by the sensor must
be located within the measuring range.
The web of material should be placed in the middle of the sensor
fork (in the middle between the two measuring transducers) for
optimum guiding results.
