Technical Specifications
18/39 ekr CON 600, ekr CON 600 net – Application with Wide Array Edge Sensors
4.3 Connection Box
Connection box
Protection category IP40
CAN bus connection 4-pin micro style connector M8
Max. length of connecting cable 20m
Ambient temperature
during operation
0to+75°C
Storage temperature 0to+75°C
Dimensions See dimensional drawing
Dimensions [mm]
CAN bus connection
to the controller
Cable diameter = 7 mm
min. bend radius = 70 mm
= Fixing dimensions

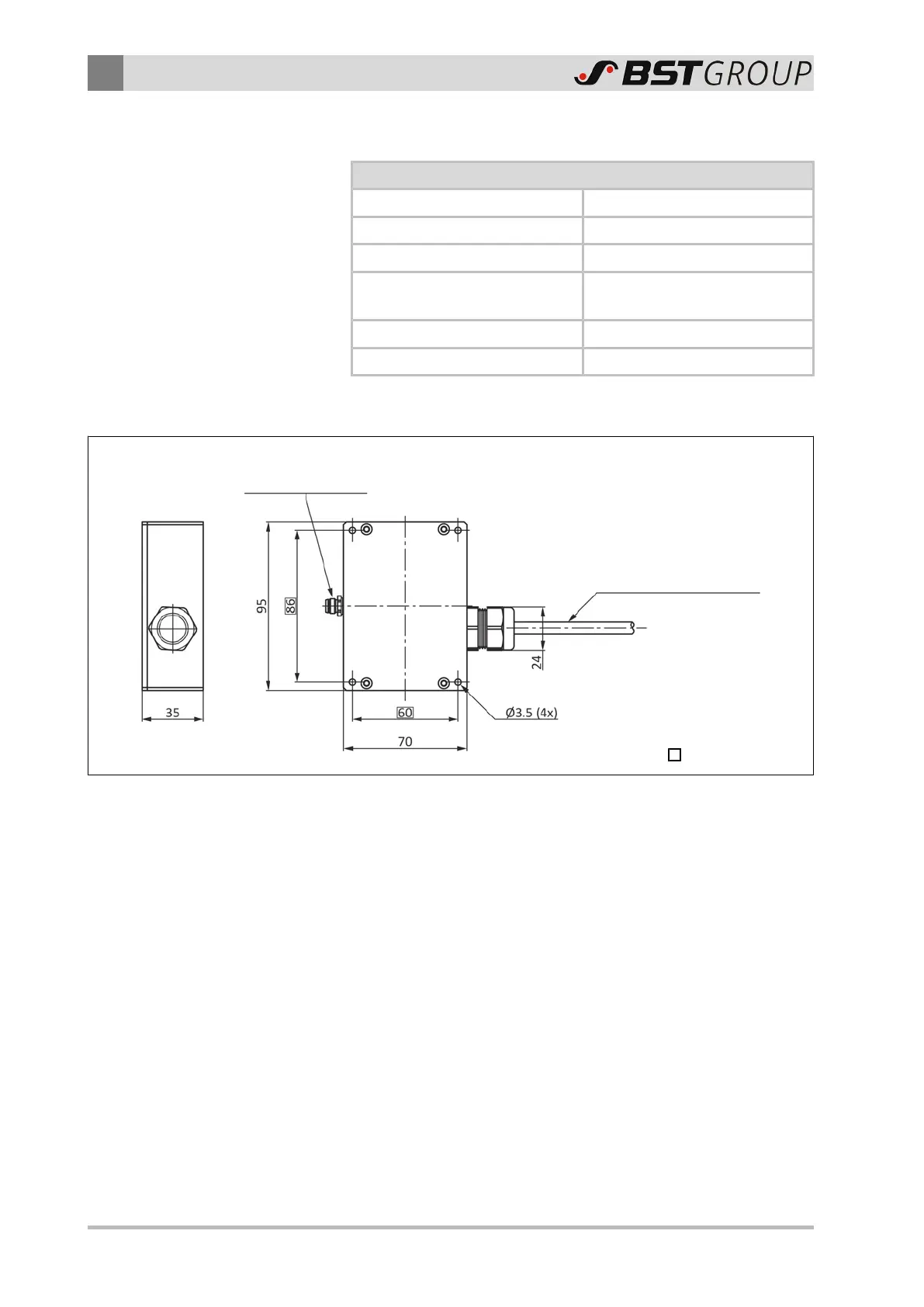

Fig.6: Dimensions of the connection box
