7
Electrical Connection
24/39 ekr CON 600, ekr CON 600 net – Application with Wide Array Edge Sensors
7.2 Connecting the Wide Array Edge Sensor to the Controller
The wide array edge sensors are connected to the CAN bus inter-
face of the controller as Sensor1 or Sensor2 using a special con-
nection box.
NOTICE
Damage to the components from working on live parts.
►
Switch off the power supply of the controller.
►
Connect the wide array edge sensor(s) to the controller (see
connection diagram).
Cable extension
2 m (131 993)
5 m (131 994)
10 m (131 995)
or
Spiral cable
0,5 m / 2 m (168 176)
Connection box Connection box
Wide array edge sensor 1 Wide array edge sensor 2
ekr commander
ekr CON 600

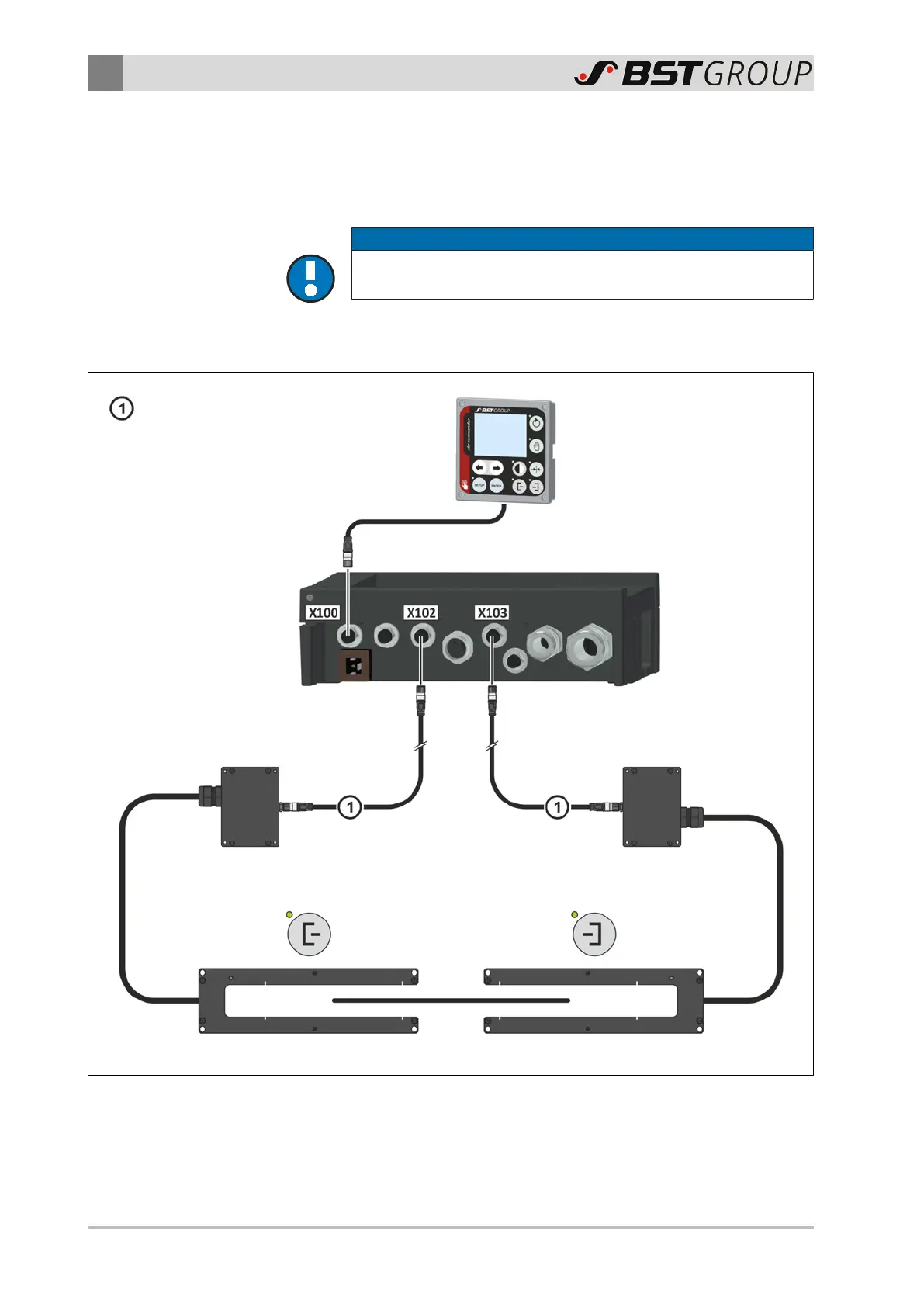

Fig.9: Connection diagram for wide array edge sensors
