Operation
34/39 ekr CON 600, ekr CON 600 net – Application with Wide Array Edge Sensors

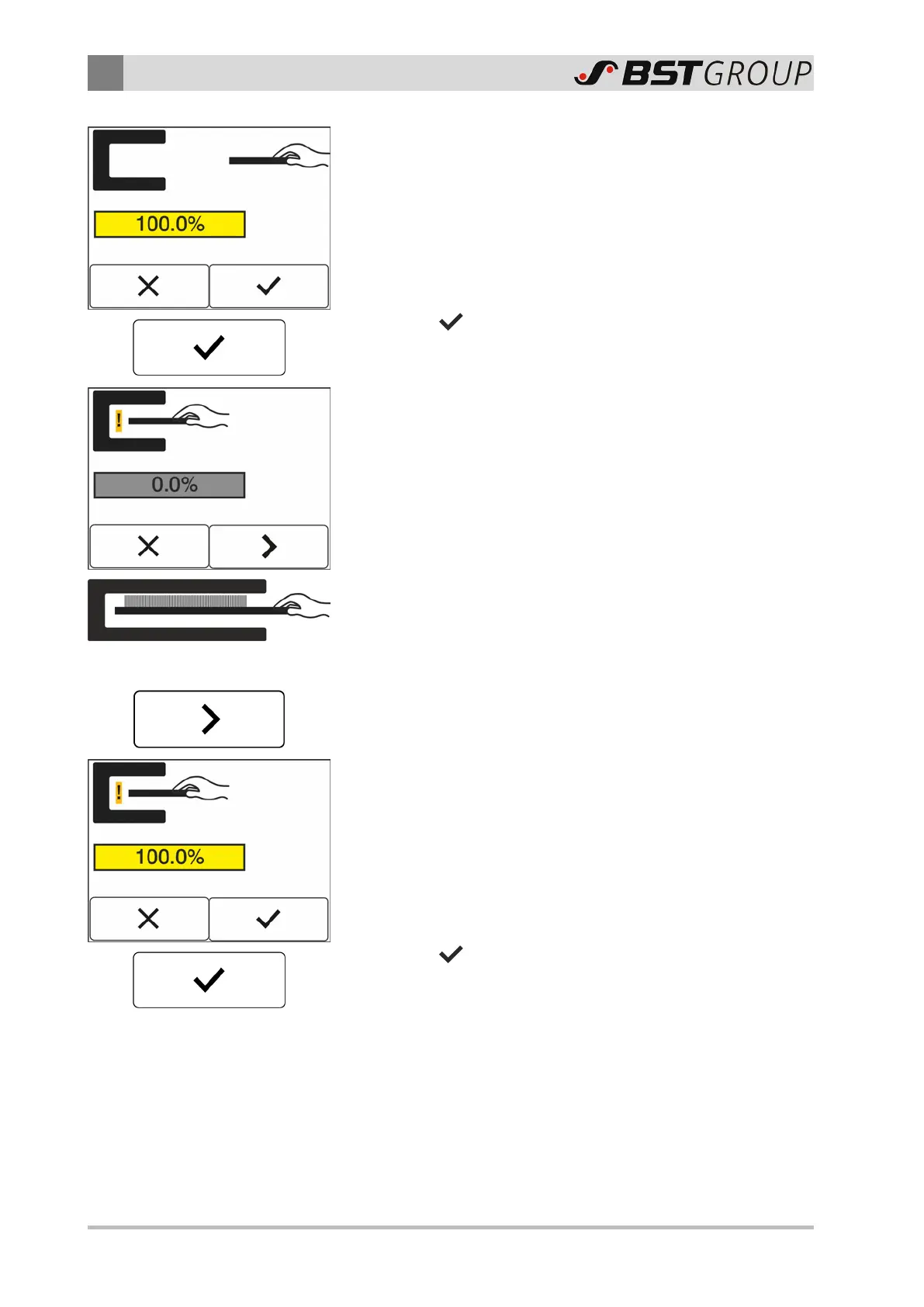

The controller determines the bright value.
During this procedure, the bar indicator below the sensor
symbol runs form 0% to 100% for one time.
8. Press the button.
The screen display shows the operating step necessary for
generating the dark value for the selected sensor (Sensor 1
here).
9. Completely cover the scanning area of the selected sensor with
the material to be scanned and keep it covered.
Attention! The material must cover the complete scanning
area of the sensor. The distance between the material and the
measuring transducers of the sensor must be at least 6mm.
10. Press the > button.
The bar indicator shows the dark value measured.
11. Press the button.
The dark value will be saved.
The material setup for the selected sensor is completed.
The setup menu is displayed.
