INSTALLATION MANUAL DD700
2.3 Disassembling display
2.3.1 ABS Version

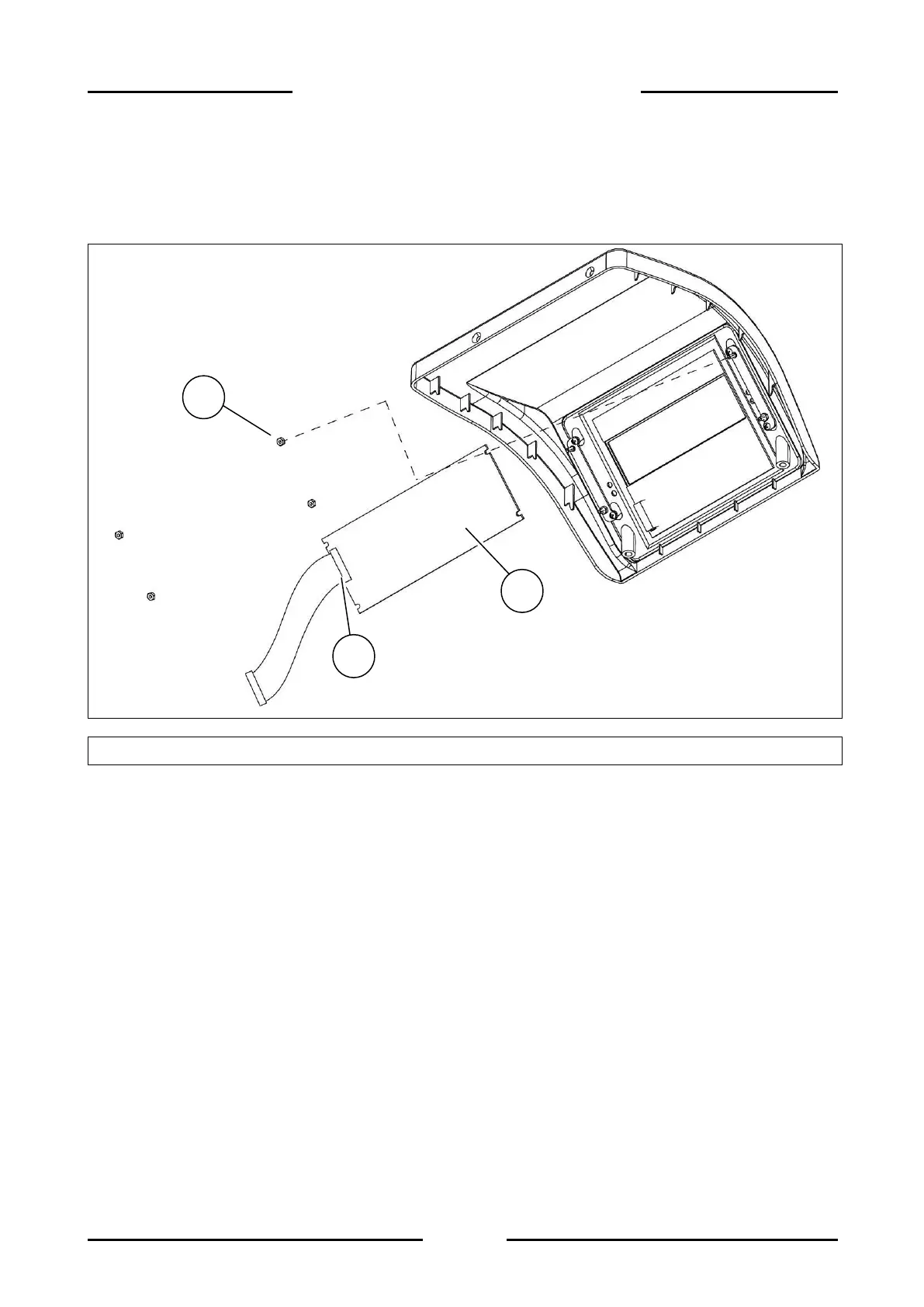

Figure 2.3-1 – Disassembling display
Referring to the previous figure, proceed as follows:

Open the terminal.

Disconnect the connector (ref. 1).

Unscrew the four screws (ref. 2) and remove the display (ref. 3) from the cover.
