INSTALLATION MANUAL DD700
2.10 Disassembling motherboard
2.10.1 Plastic version

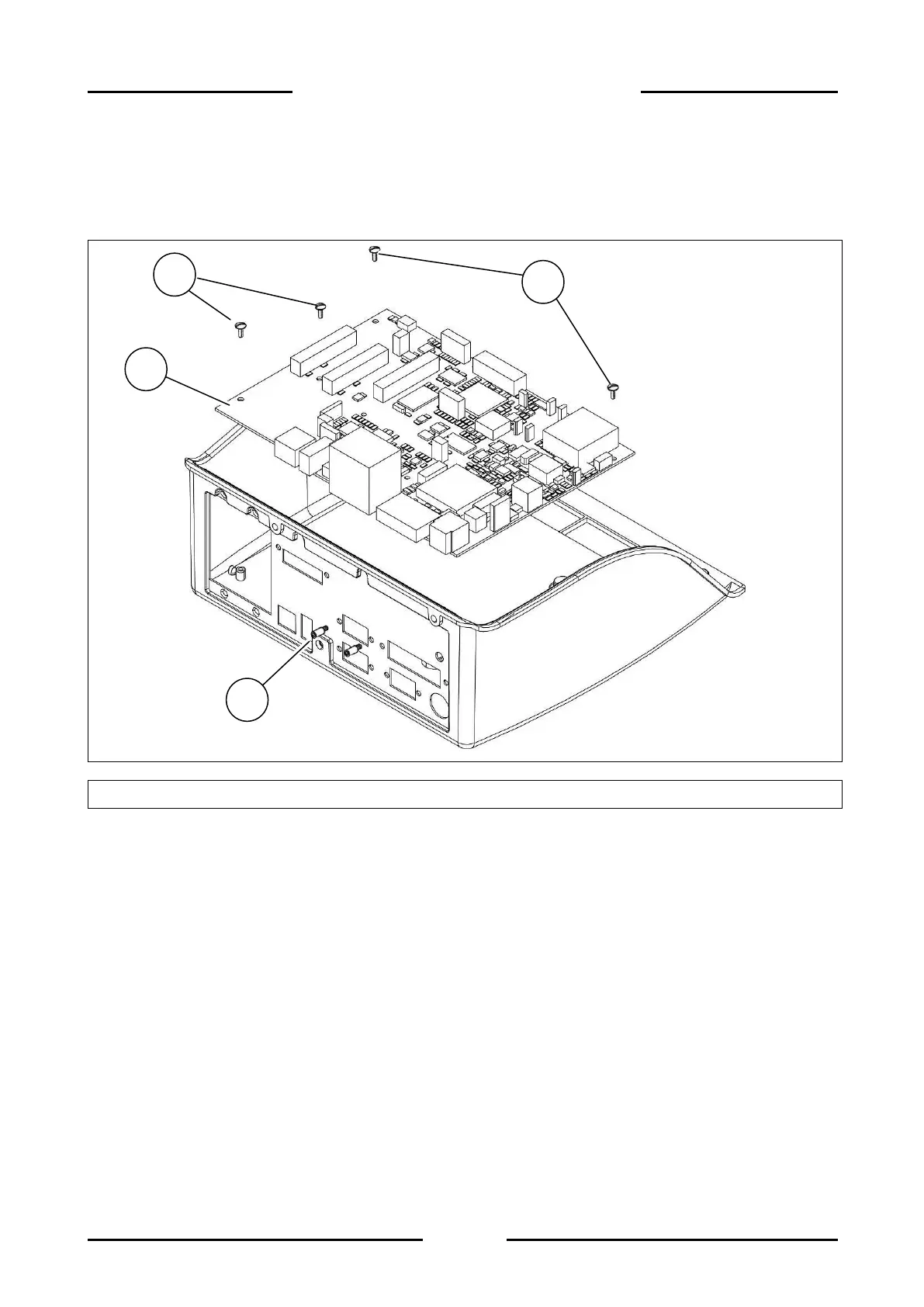

Figure 2.10-1 - Disassembling motherboard
Referring to the previous figure, proceed as follows:

Disconnect the terminal from all the utilities.

Open the terminal.

Remove the lithium battery

If present, remove the second analogue scale input or digital scale input.

Remove the I/O board

Remove the optional boards by unscrewing the fixing screws and removing the boards from
the slots.

Unscrew the fixing turrets (ref. 1) of the serial output connectors.

Unscrew the screws (ref. 2) and remove the motherboard (ref. 3).
1
3
2
2
