INSTALLATION MANUAL DD700
2.10.3 Stainless steel version with cable glands

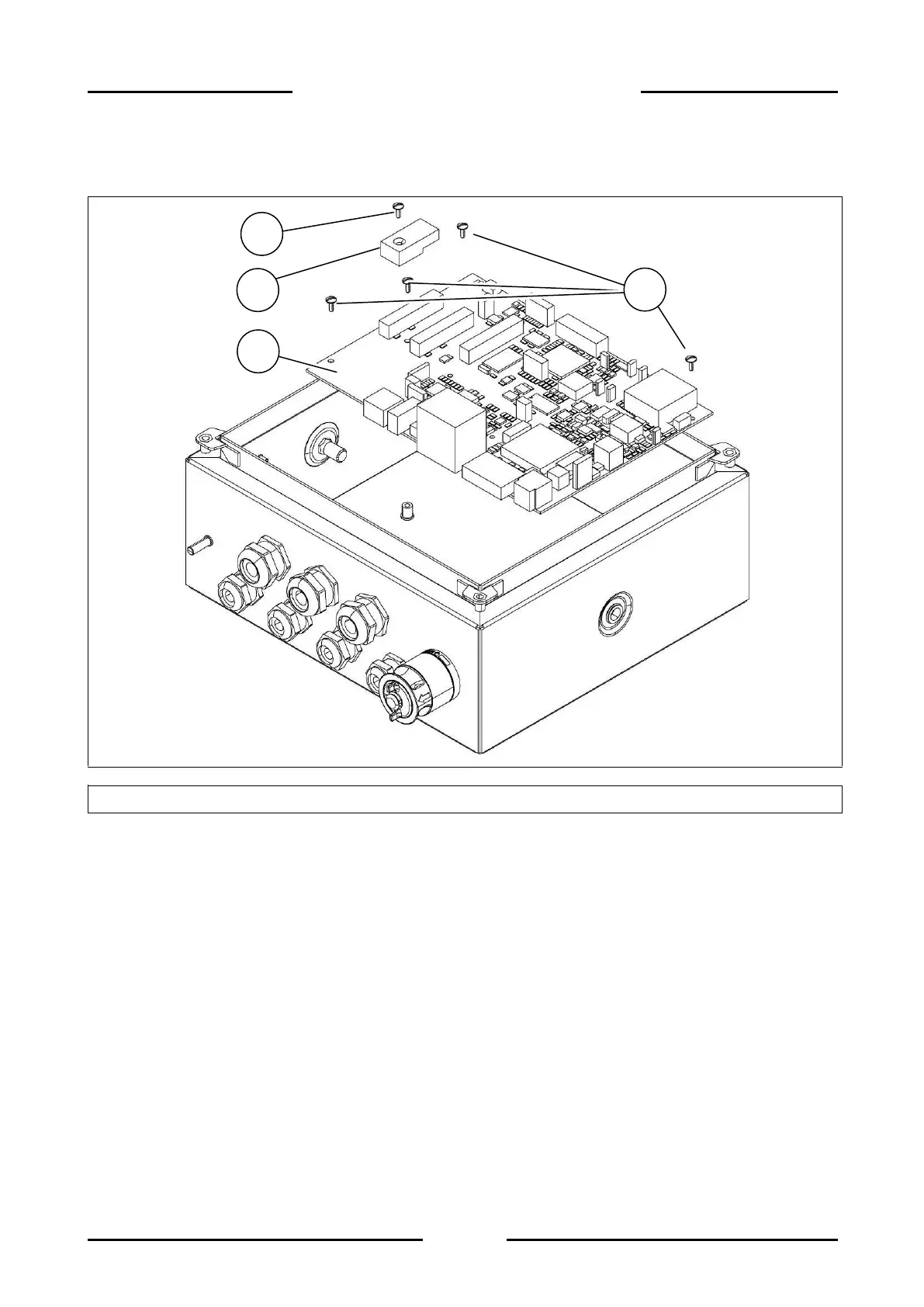

Figure 2.10-3 - Disassembling motherboard
Referring to the previous figure, proceed as follows:

Disconnect the terminal from all the utilities.

Open the terminal.

Remove the lithium battery

If present, remove the second analogue scale input or digital scale input.

Remove the I/O board

Remove the optional boards by unscrewing the fixing screws and removing the boards from
the slots.

Unscrew the screw (ref. 1) and remove the protection (ref. 2) on the calibration button.

Unscrew the screws (ref. 3) and remove the motherboard (ref. 4).
1
4
2
3
