INSTALLATION MANUAL DD700
2.8.3 Stainless steel version with cable glands

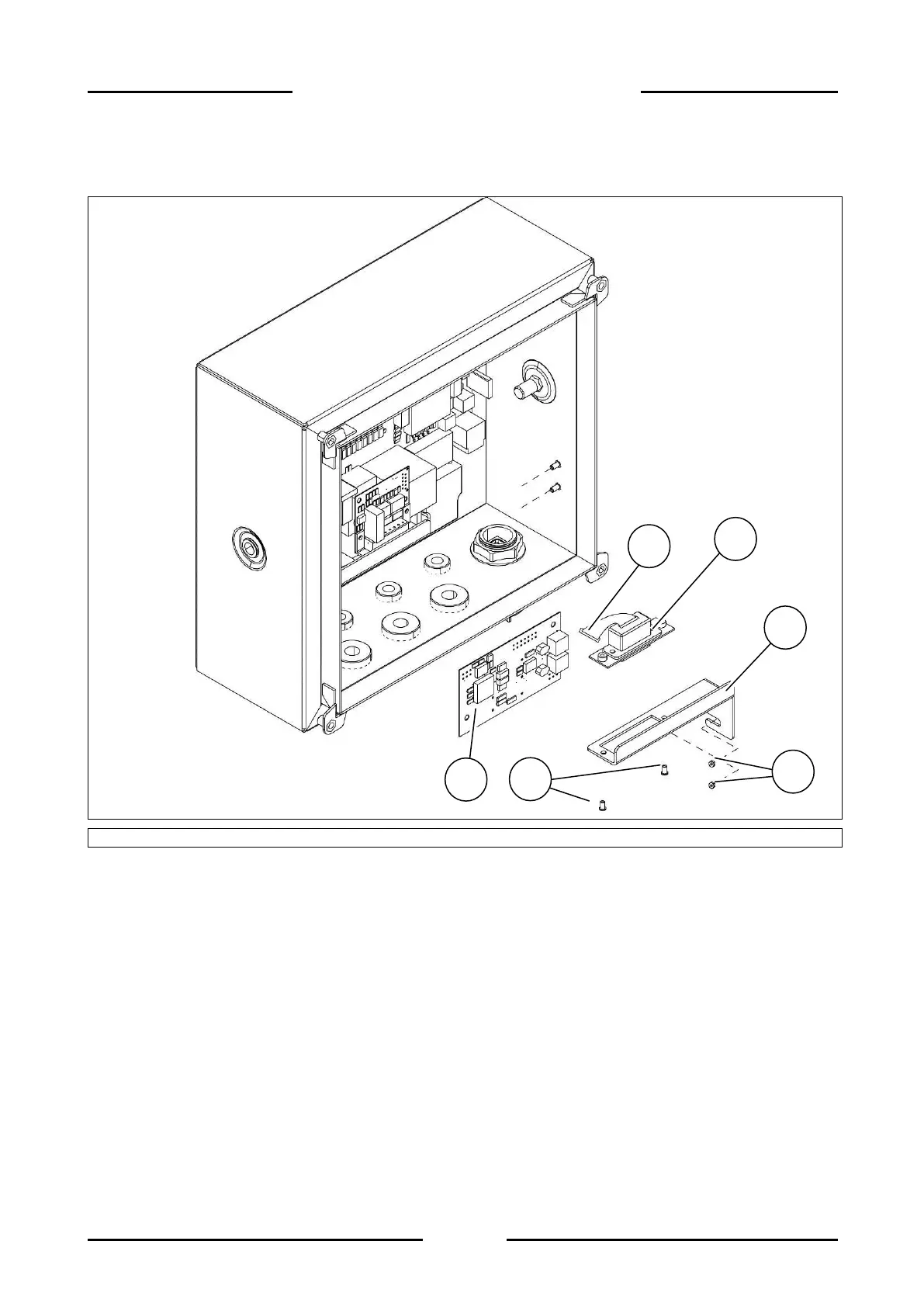

Figure 2.8-3 -Disassembling power supply for digital scale
Referring to the previous figure, proceed as follows:

Open the terminal.

Disconnect the digital scale from the terminal.

Disconnect the connector (ref. 1) from the corresponding one on the digital scale board (ref. 2).

Unscrew the nuts (ref. 3) and remove the bracket (ref. 4) with the connector.

Unscrew the screws (ref. 5) and release the input connector (ref. 6).

Disconnect the digital scale board (ref. 2) from the motherboard, pulling it delicately until it is
completely extracted from the fixing pins.
4
1
2
5
6
3
