INSTALLATION MANUAL DD700
2.7.3 Stainless steel version with cable glands

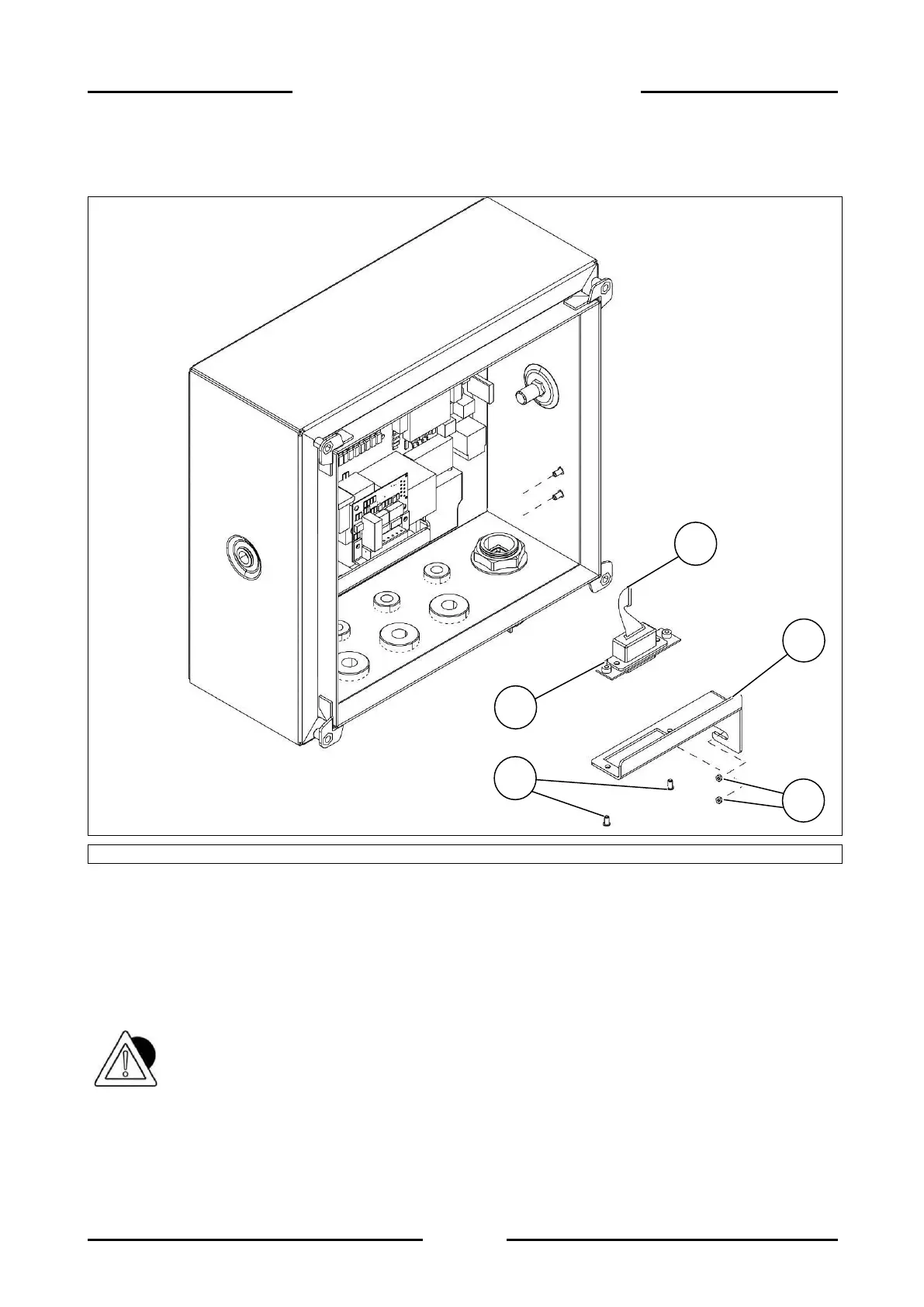

Figure 2.7-3 - Disassembling analogue scale input
Referring to the previous figure, proceed as follows:

Open the terminal.

Disconnect the second analogue scale from the terminal.

Disconnect the connector (ref. 1) from its equivalent on the motherboard.

Unscrew the nuts (ref. 2) and remove the bracket (ref. 3) with the connector.

Unscrew the screws (ref. 4) and release the input connector (ref. 5).
ATTENTION
The second analogue scale is welded onto the motherboard.
If it needs to be replaced, the motherboard must be replaced as well.
5
1
3
4
2
