INSTALLATION MANUAL DD700
2.6 Disassembling first analogue scale
ATTENTION
The first analogue scale is welded onto the motherboard.
If it needs to be replaced, the motherboard must be replaced as well.
2.7 Disassembling second analogue scale
2.7.1 ABS Version

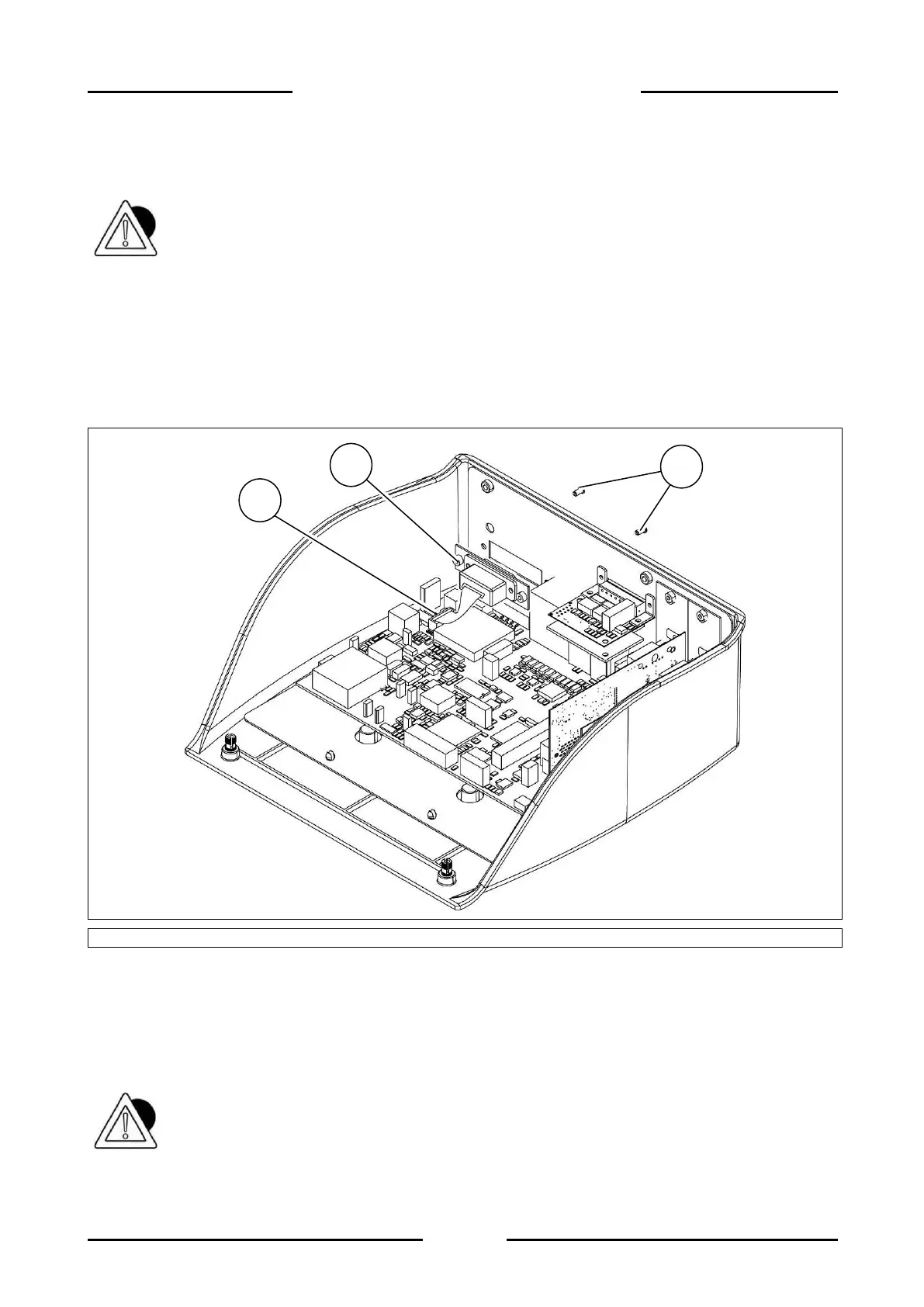

Figure 2.6-1 - Disassembling second analogue scale input
Referring to the previous figure, proceed as follows:

Disconnect the second analogue scale from the terminal.

Open the terminal.

Disconnect the connector (ref. 1) from its equivalent on the motherboard.

Unscrew the screws (ref. 2) and release the input connector (ref. 3).
ATTENTION
The second analogue scale is welded onto the motherboard.
If it needs to be replaced, the motherboard must be replaced as well.
3
2
1
