INSTALLATION MANUAL DD700
2.9.2 Stainless steel version with connectors

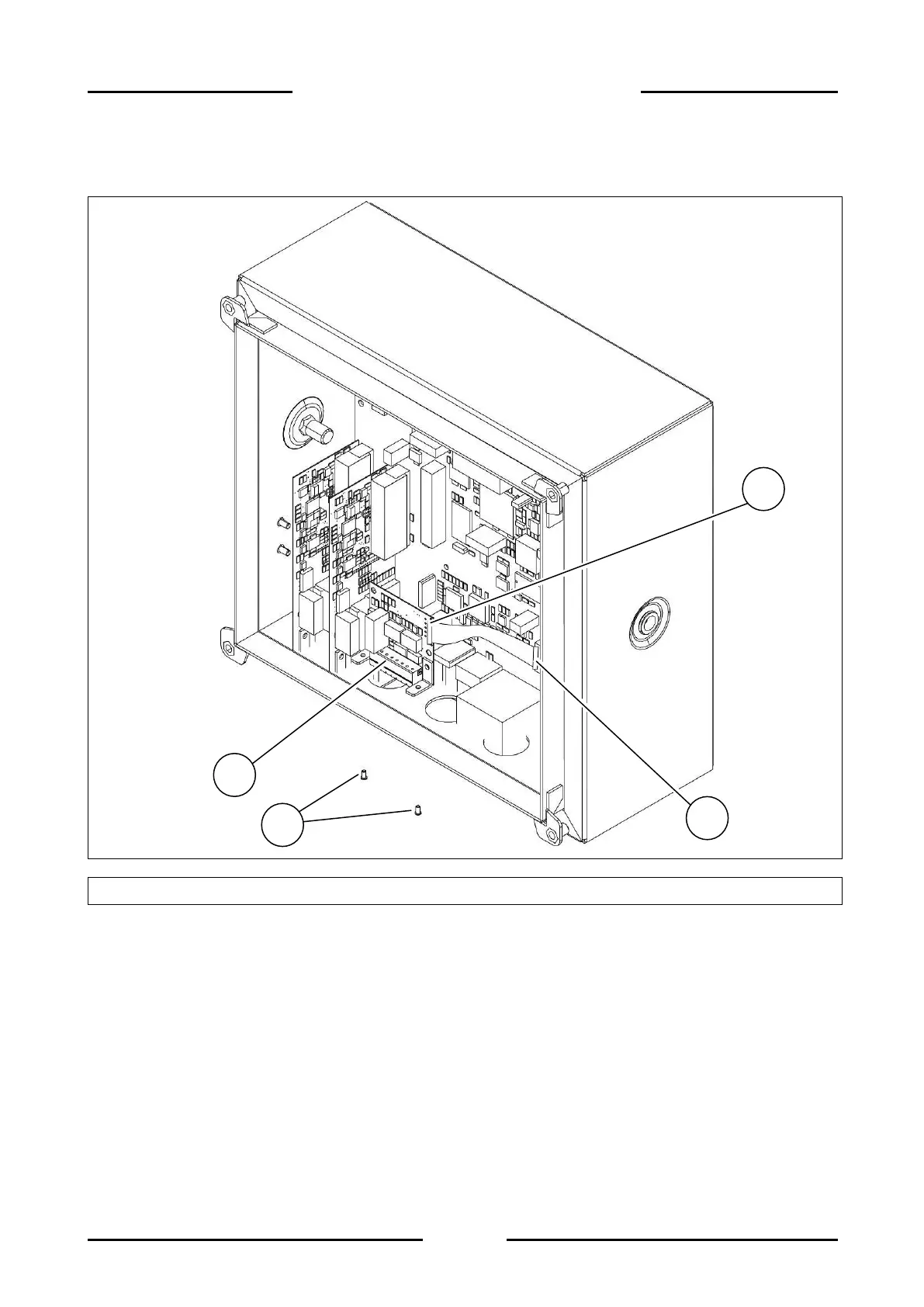

Figure 2.9-2 – Disassembling I/O board
Referring to the previous figure, proceed as follows:

Disconnect the I/O board from the terminal.

Open the terminal.

Disconnect the connector (ref. 1) from its equivalent on the motherboard.

Unscrew the screws (ref. 2) and remove the I/O board (ref. 3).

Disconnect the connector (ref. 4) from the I/O board.
1
4
3
2
