INSTALLATION MANUAL DD700
2.8.2 Stainless steel version with connectors

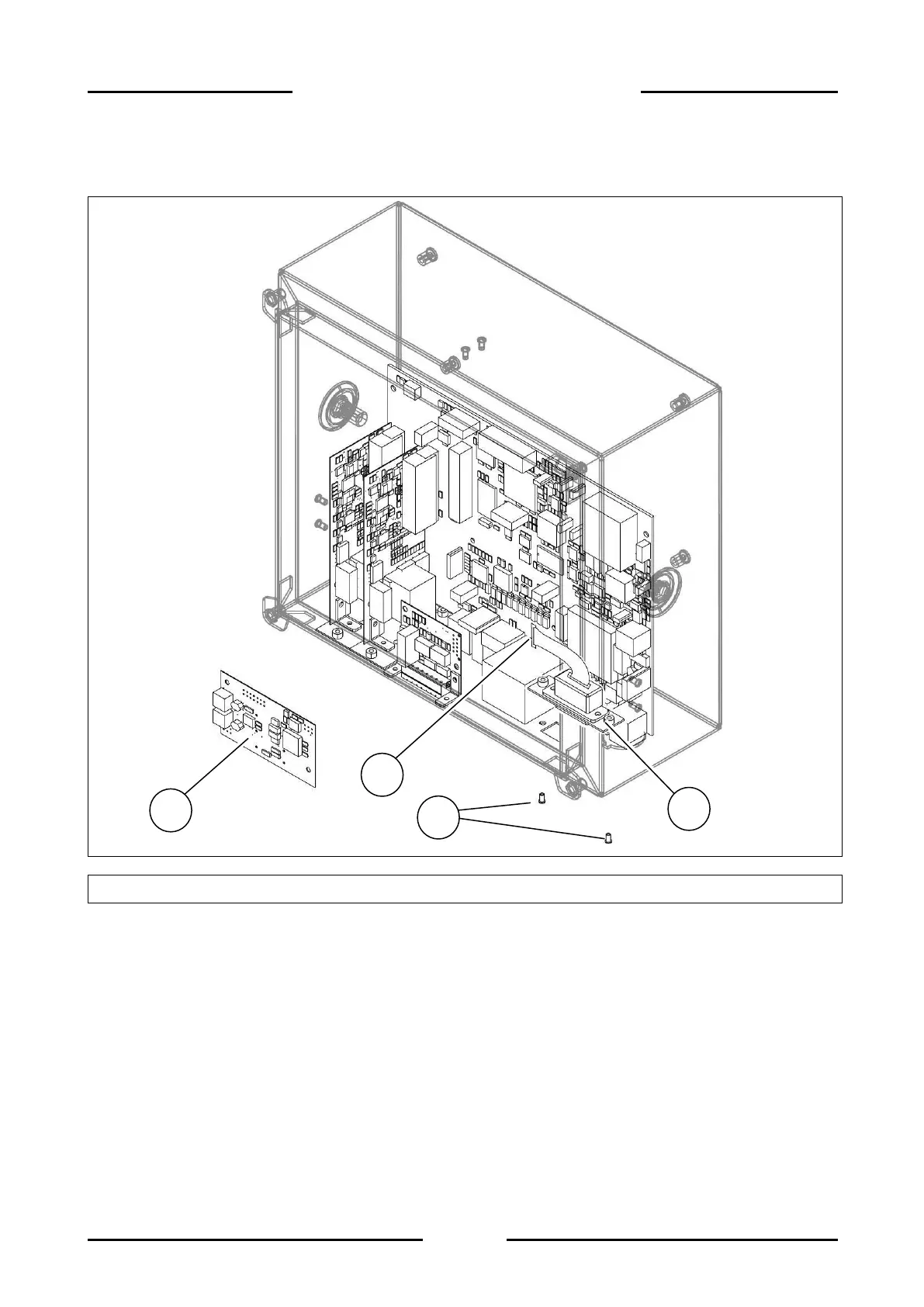

Figure 2.8-2 -Disassembling power supply for digital scale
Referring to the previous figure, proceed as follows:

Disconnect the digital scale from the terminal.

Open the terminal.

Disconnect the connector (ref. 1) from the corresponding one on the digital scale board (ref. 2).

Unscrew the screws (ref. 3) and release the input connector (ref. 4).

Disconnect the digital scale board (ref. 2) from the motherboard, pulling it delicately until it is
completely extracted from the fixing pins.
1
2
3
4
