Bucher C-LRV 700 - Pressure Drop

C−LRV lift control valve Product description
18/92
300−I−9010212−E−10/08.08

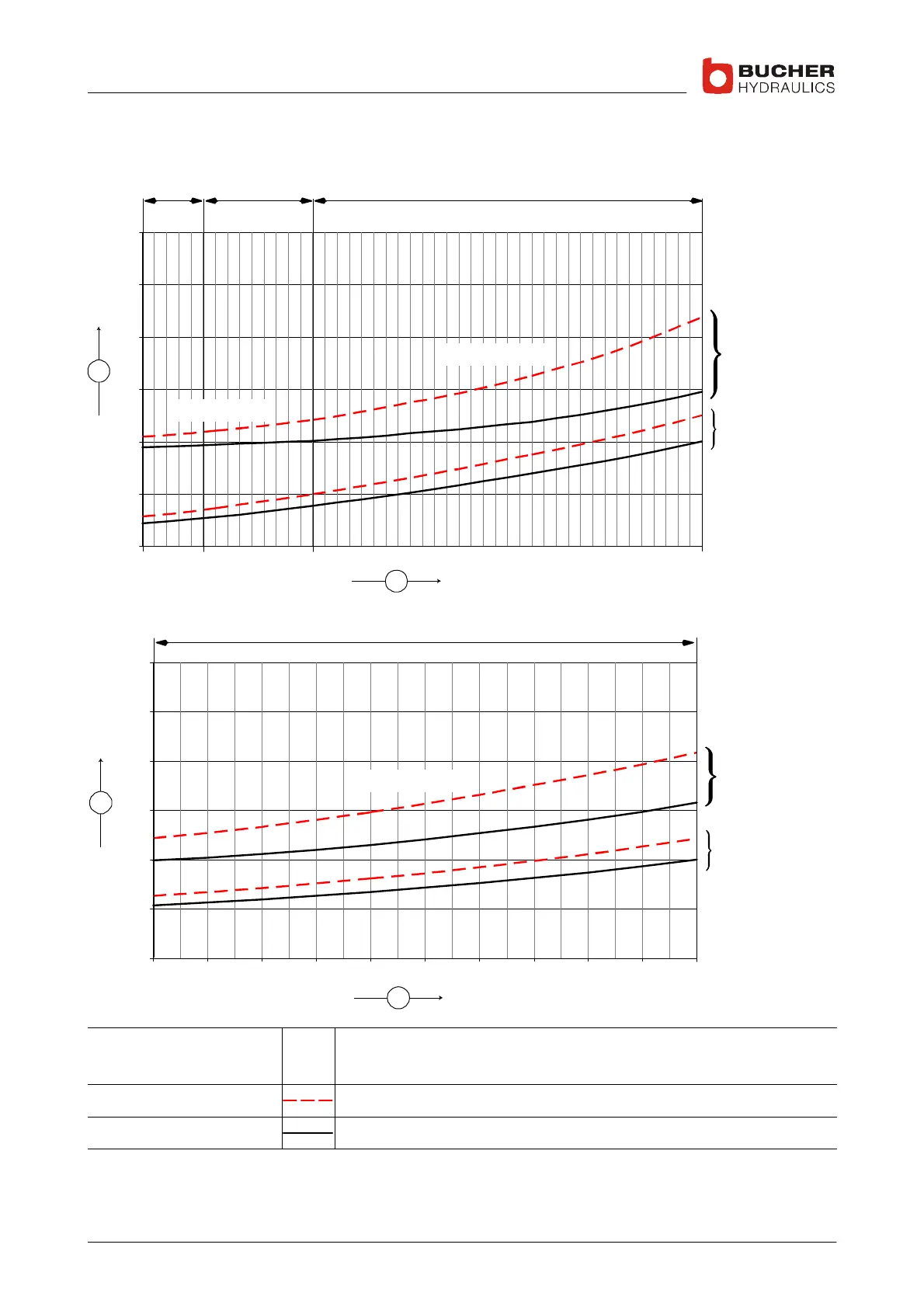

1.3.5 Pressure drop
C−LRV 175
0.0
2.5
5.0
7.5
10.0
12.5
15.0
20 50 90 100 150 180 200 250
R45
R90
R250
Spool K 91
Spool K 251
A
B
Flow ring (R)
DOWN (Z−T)
UP (P−Z)
DOWN (Z−T)
UP (P−Z)
C−LRV 350
0.0
2.5
5.0
7.5
10.0
12.5
15.0
250 275 300 325 350 375 400 425 450 475 500
R500
A
B
Flow ring (R)
Spool K 501
Legend A
B
Pressure drop [bar] Min. required dyn. pressure
Flow rate Q [l/min.]
300 cSt (HLP 46)
75 cSt (HLP 46)
