Burkert 2300 - Page 38

38
Maintenance, cleaning
Supportring
Upperchevronseals
Upperpressurering(s)
Pressurespring
Lowerpressurering
Lowerchevronseals
Insertiondirectionfor
packingglandparts
Spacer
Spindlediameter22mm

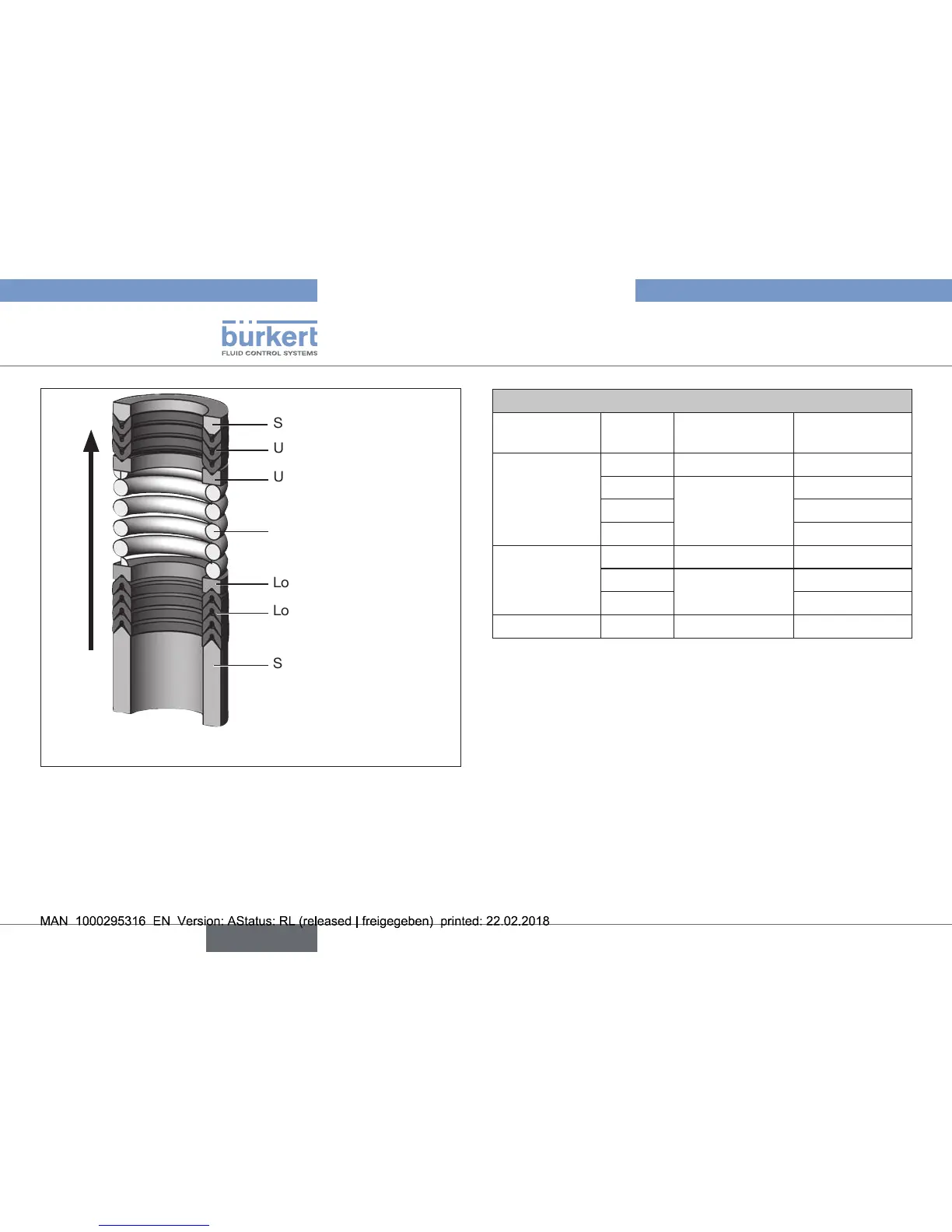

Fig. 35: Seal set for packing gland SP22
Tightening torques of spindle
Spindle
diameter
Orice
body
Material of
spindle guide
Tightening
torque [Nm]
10 mm PEEK 6
15
1.4401/1.4404
/316L
15
20–25 25
32 50
14 mm PEEK 15
25
1.4401/1.4404
/316L
25
32–50 60
22 mm 65
1.4401/1.4404 60
Tab. 19: Tightening torques of spindle
Installing the control cone
→ Attachnewcontrolconetothespindle.
→ Alignboresofthecontrolconeandspindle.
→ Supportcontrolconeonthecylindricalpartwiththeaidofa
prismorsomethingsimilar.
→ Putondowelpinandcarefullyknockinwithahammer.
→ Positionthedowelpininthecentreofthespindleaxis.
english
Type 2300
