15
Technical data
Type 3280, 3285

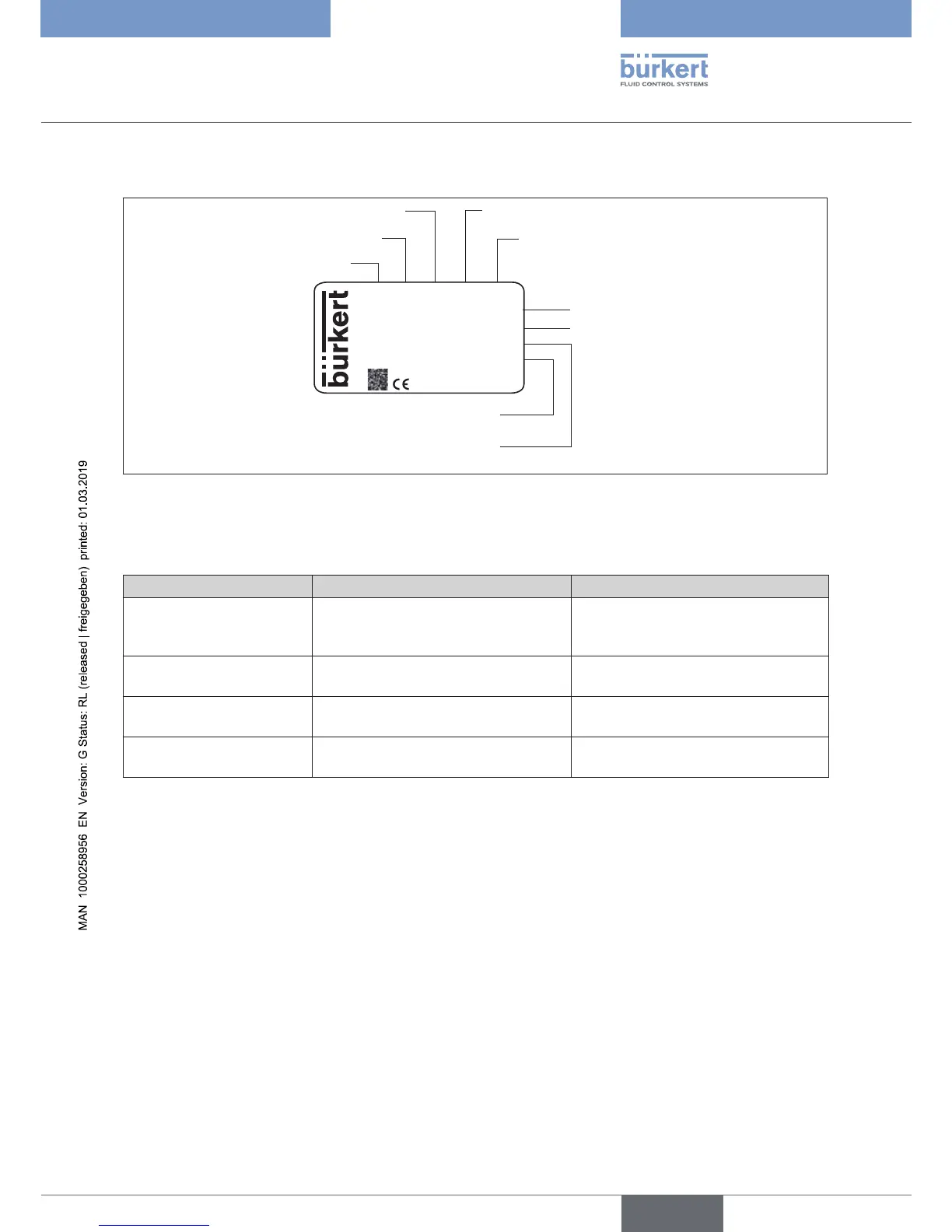

6.4 Type label
3280 X DN25 EPDM MS
D-74653 Ingelfingen
268611 SN000000
W3ZLT
24 V DC 8 W
NPT 1/4 PN 6 bar
Tamb see manual
Type
Electronic valve version
Seat diameter
Order number, Serial number
Seal material
Body material
Ambient temperature
Voltage, Max. power consumption
Port connection, Pressure range
Figure 5: Description of the type label (Example)
6.5 Mechanical data
Materials Type 3280 Type 3285
Actuator housing Black Plastic parts: PPS GF40,
Anthracite Plastic parts: PC GF10
Black Plastic parts: PPS GF40,
Anthracite Plastic parts: PC GF10,
in contact with medium: PPS GF40
Body Brass (MS) or
stainless steel (VA)
Brass (MS) or
stainless steel (VA)
Sealing material FKM, NBR or EPDM
1)
FKM, NBR or EPDM,
technical ceramic
Other materials in the
fluid area
Stainless steel (VA) Stainless steel (VA)
1) The seat seal is made of PEEK for 4 mm orifice of the variant for higher pressure.
Connections
Type 3280 G 1/4, G 3/8, G 1/2, NPT 1/4, NPT 3/8, NPT 1/2 and Cartridge
Type 3285 G 1/2, G 3/4, G 1, NPT 1/2, NPT 3/4 or NPT 1
Weight
Type 3280 ~ 0.7 kg (with VA body)
Type 3285 Seat diameter 8/10 ~ 0.8 kg (with VA body)
Seat diameter 12/15 ~ 1.2 kg (with VA body)
Seat diameter 20/25 ~ 1.5 kg (with VA body)
Dimensions see data sheet
