Installation
Type 8792, 8793
english
→ Place Type 8792/8793 with assembly bridge on the rotary actuator and attach (see “Figure 20”)

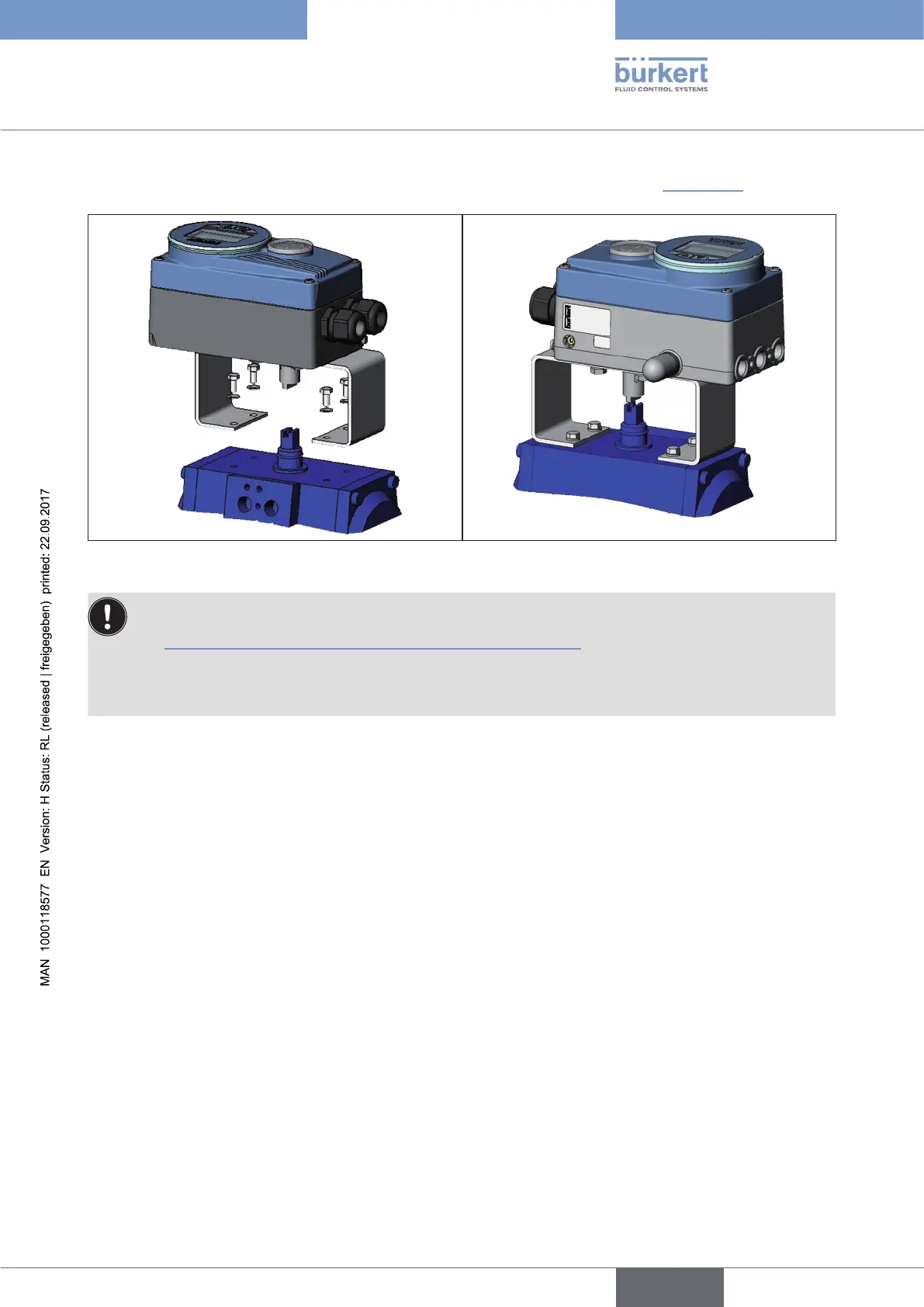

Figure 20: Rotary actuator attachment
If the X.TUNE ERROR 5 message is indicated on the graphics display after the X.TUNE function starts,
the shaft of the Type 8792/8793 is not correctly aligned with the shaft of the actuator
(see “Table 126: Error and warning message on X.TUNE”, page 225.
• Check alignment (as described previously in this chapter).
• Then repeat the X.TUNE function.
