7.3. Inputs
Inputs are all digital (dry contact potential free).
Clogging alarm: activates a filter back-wash alert using a pressure switch (Procopi article code 677705).
High level and Low level: allows the water level in the buffer tank to be controlled via a RED-2 panel
(Procopi article code 667200) or level sensors.
Heating/ treatment priority: Allow filtration to be forced on if a heating demand, treatment demand or
some other demand is detected.
Cover closed: provides information that the pool cover is closed.
Cover moving: provides information that the pool cover is in motion.
7.4. Outputs
Outputs are all digital.
Filtration pump (connect to the pump contactor): drives the filtration pump.
Underwater lights (connected to a 100 VA transformer): controls the pool lighting. Can be used to power
up to 3 LED underwater lights with a unit power of 17 W.
Auxiliaries (4 A, 250 V max) : can be used to control up to 5 equipment items.
o If a variable speed pump is installed, auxiliary 1 will activate speed 1 and auxiliary 2 will activate
speed 2.
o If the automatic cover option is used, auxiliary 3 will control closing of the pool and auxiliary 4 will
control opening of the pool.

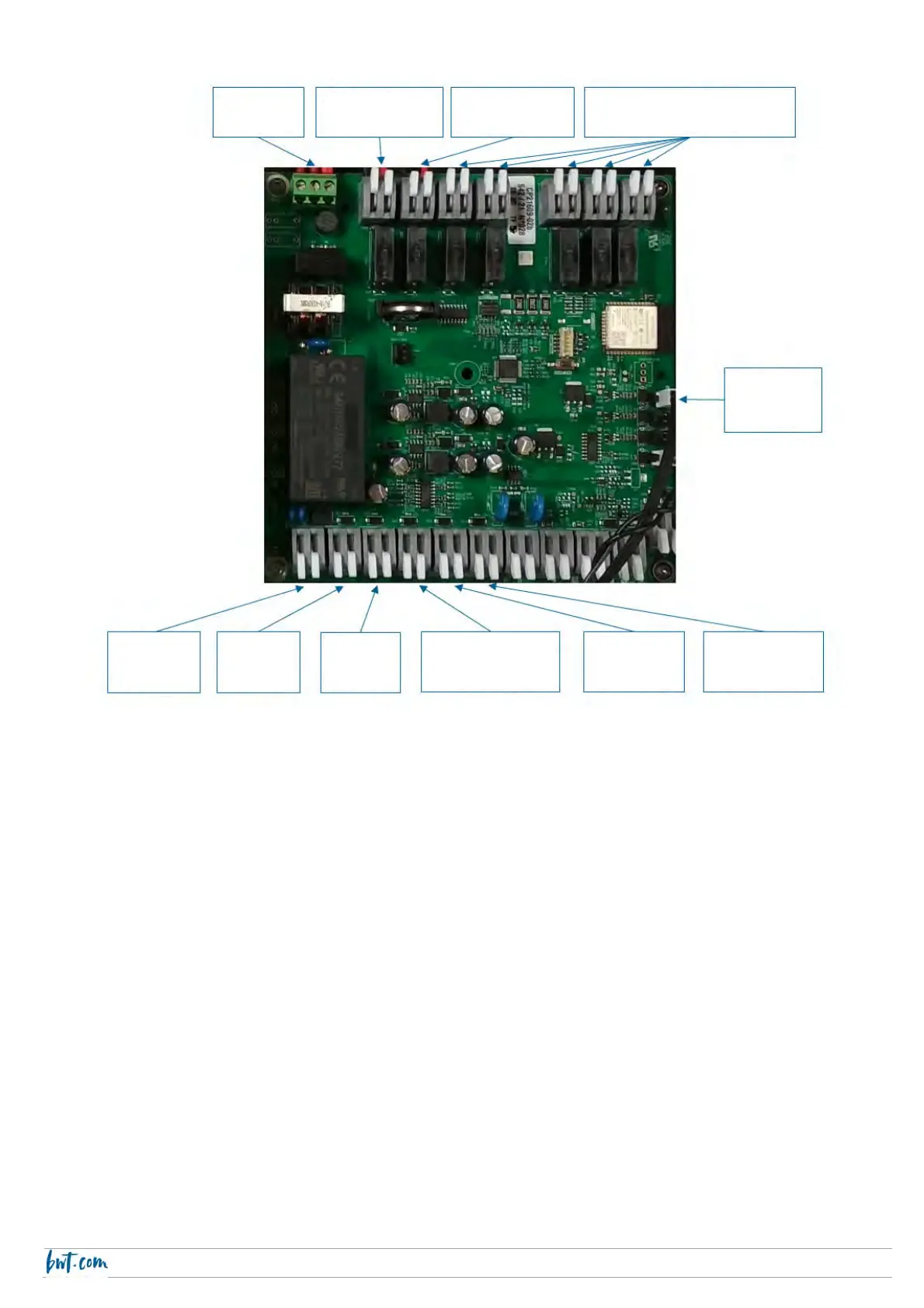

Power supply
(L-N-E)
UW light contact
(Lights)
Pump contact
(Filtration pump)
Auxiliaries 1 to 5 – 4A, 250 V max
(Aux 1, Aux 2, Aux 3, Aux 4, Aux 5)
Temperature
sensor
(water temp)
Clogging alarm
(Clog. Alarm)
High level
(High level)
Low level
(Low level)
Heating/ treatment
priority
(Heat prio.)
Cover closed
(Cover closed)
Cover moving
(Cover motion)
