PROGRAMMING THE ELECTRONIC UNIT

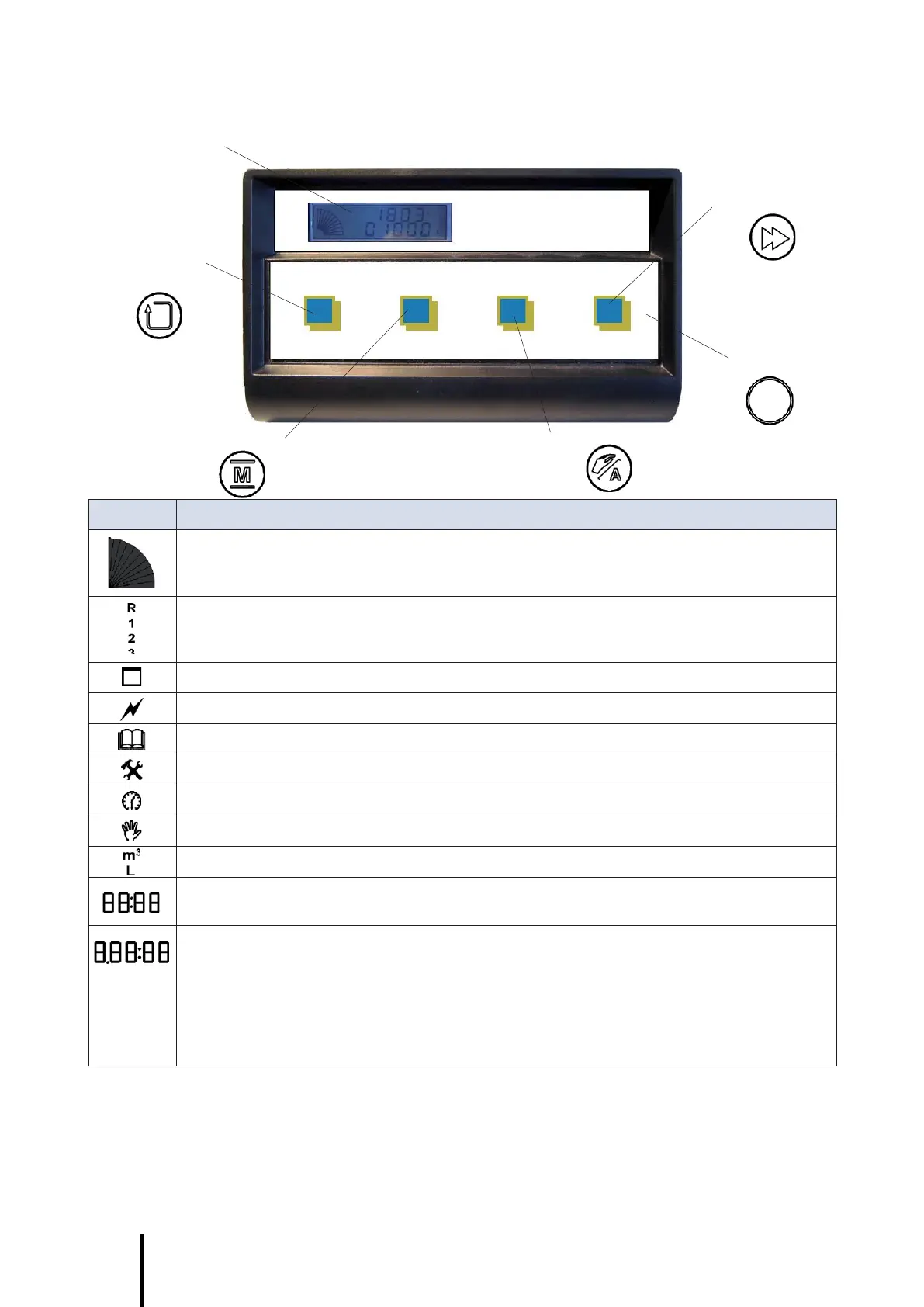

Display
Regeneration
button
Mode button
Semi-auto button
Forward button
Hidden button
Symbol
Meaning
- Display of remaining volume on scale to 10 in volumetric mode
- Display of remaining time on scale to 10 in chronometric mode
- Display of elapsed time during a regeneration on scale to 10
- R displayed during regeneration
- 1, 2 and 3 successively lit during phases 1(backwashing), 2(brining and slow rinsing) and
3(fast rinsing)
No used
Alarm displayed after regeneration in the event of too low conductivity during brining
Alarm displayed when the number of regenerations associated with the maintenance is reached
Alarm displayed when the number of regenerations associated with After Sales Service follow up is reached
Displayed at the same time as the current time
Displayed when in Standby mode
Displayed when a volume is expressed in L / m3
Display of current time in Service and Test modes
Program step display in Program mode
- Program values input
- Generic code input
- Display of number of days before the next regeneration or the programmed time
- Display of regeneration start or stop time
- Display of whole volume remaining in litres if less than 99999, otherwise in m3
- Display of number of regenerations
- Display of total treated volume in m3
CHOICE OF OPERATING MODE
The operating mode for BWT PERLA PRO XS softeners is selected using the programming buttons on the
electronic unit. The BWT PERLA PRO XS softeners can operate in different modes identified by the codes
described below.
