98 4-1 Charging/Discharging Instructions

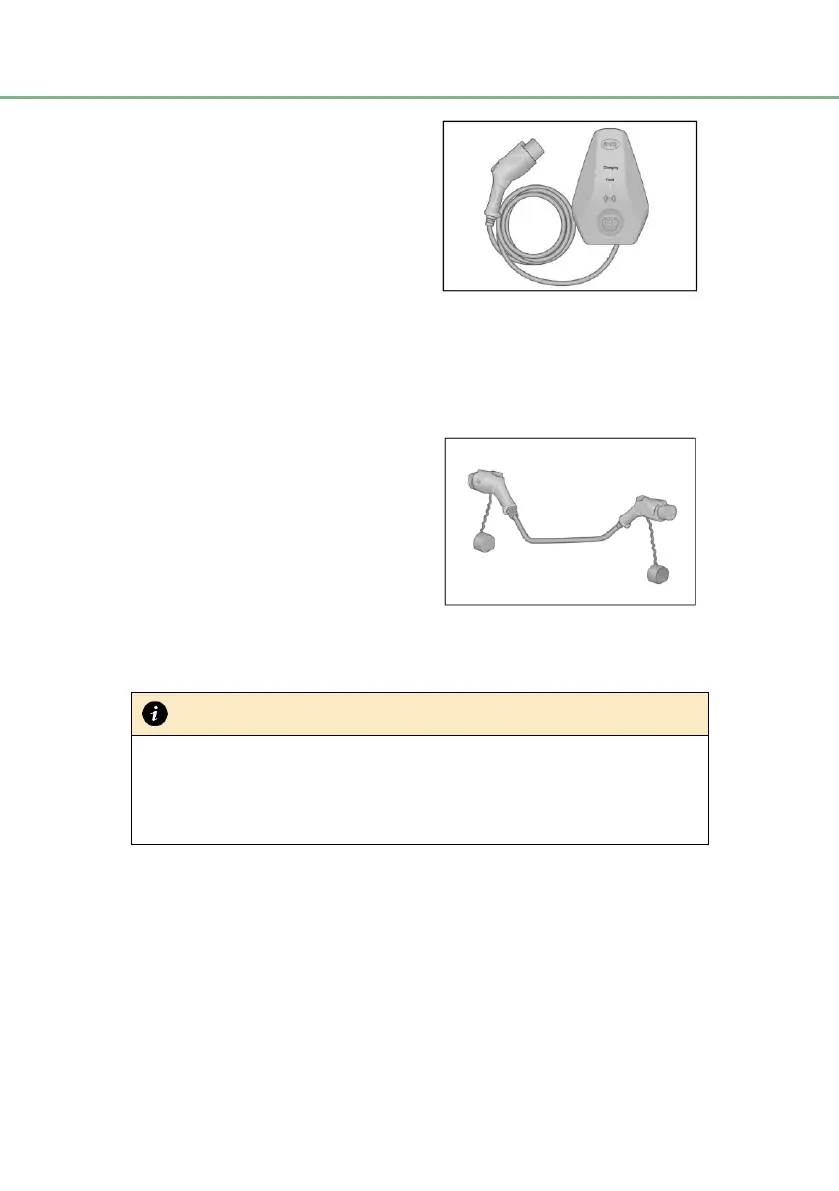

■ Single-phase AC charging box:
The equipment consists of
charging box, charging plug and
connection cable. For information
about the circuit breaker and
emergency stop switch, refer to
the charging box manual.
Single-phase AC charging pile
■ Public single-phase AC charging pile can be used to charge the vehicle. As
some charging piles are not equipped with charging plugs, an AC charging
connector should be prepared.
■ Specifications of equipment: 220V AC 50Hz 32A or 220V AC 50Hz 16A
■ AC connection device: This
device consists of power supply
plug, charging plug, plug/charging
plug protection cover, and
connection cable in line with the
requirements of the national
standard, referred to as seven to
seven ("7-pin to 7-pin" for short).
The power supply plug is
connected to charging pile power
supply socket, and the charging
plug is connected to the vehicle
charging port.
During use of the 7-pin to 7-pin equipment, to avoid reverse connection, pay
attention to the tags on the power supply plug and the charging plug.
7-pin to 7-pin equipment is not provided with the vehicle. If you need such
equipment, it is recommended to purchase it from a BYD authorized service
provider.
2. Guidance on starting charging
AC charging can be performed by connecting the vehicle to an AC charging pile
with the 7-pin to 7-pin equipment or connecting the vehicle to an AC charging
pile/box with a charging plug of the AC charging pile/box
Instant charging method:
■ Unlock the vehicle and open the charging port cap:
Unlock the charging port cap, open the charging port cap with
reference to the AC charging with household portable equipment.
■ Inspection before charging:
To Next Page
