13)
By hand, compress the Gas Spring, and snap-on the thinner end of the Gas
Spring to the Gas Spring Brackets on the Mobile Platform. Once this end is
snapped into place, re-insert clip.

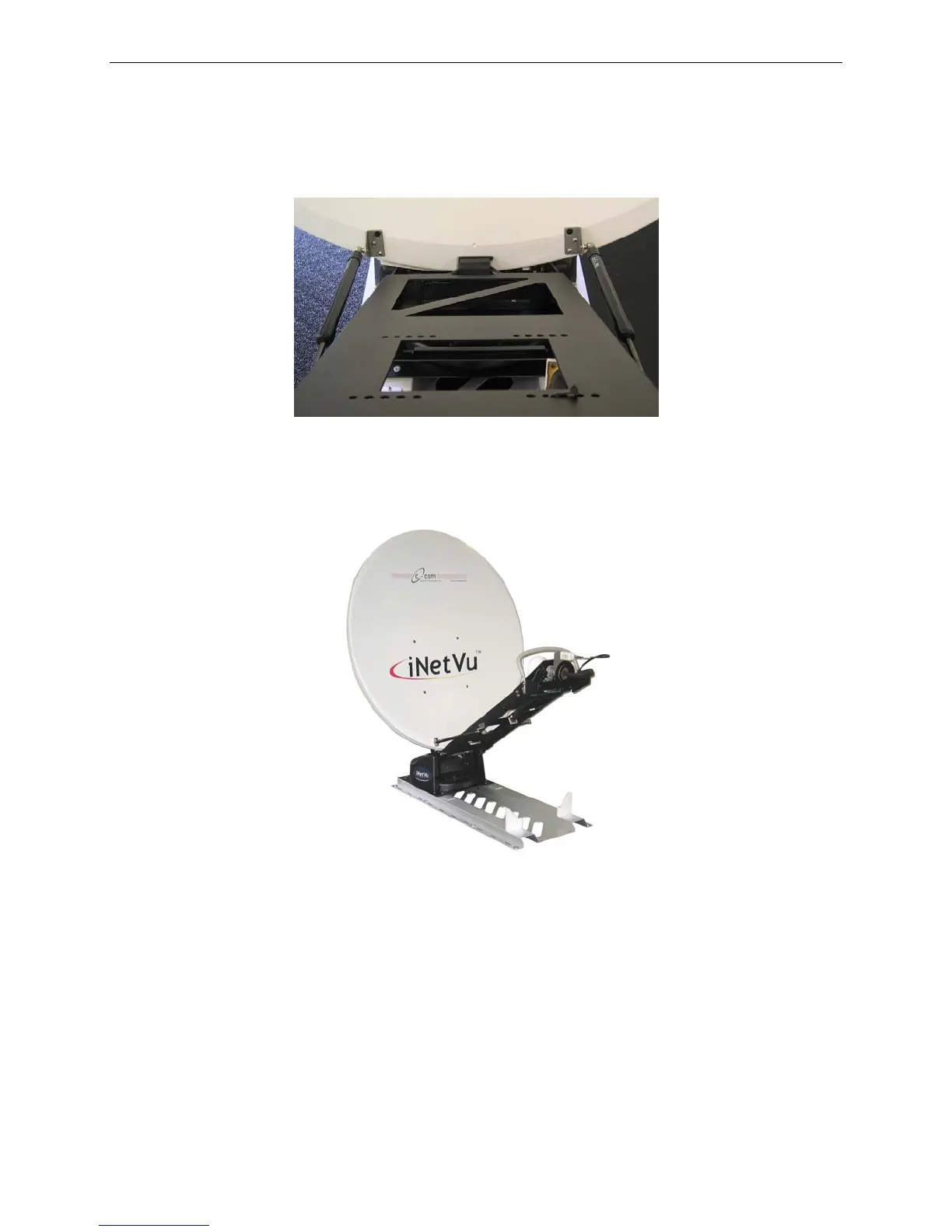

Fig. 35: Assembled Gas Spring Assembly
14)
Repeat Steps 12 and 13 for both Gas Springs.
Fig. 36: Fully Assembled Reflector Assembly
15)
Congratulations! The 1.2m Reflector has been successfully installed on to
an iNetVu™ 1200 Mobile Platform.
