iNetVu™ Service Manual Page 77 of 109
4. Screw in four (4) bolts and flat washers through the Elevation Arm, and secure in
place evenly in a cross pattern.

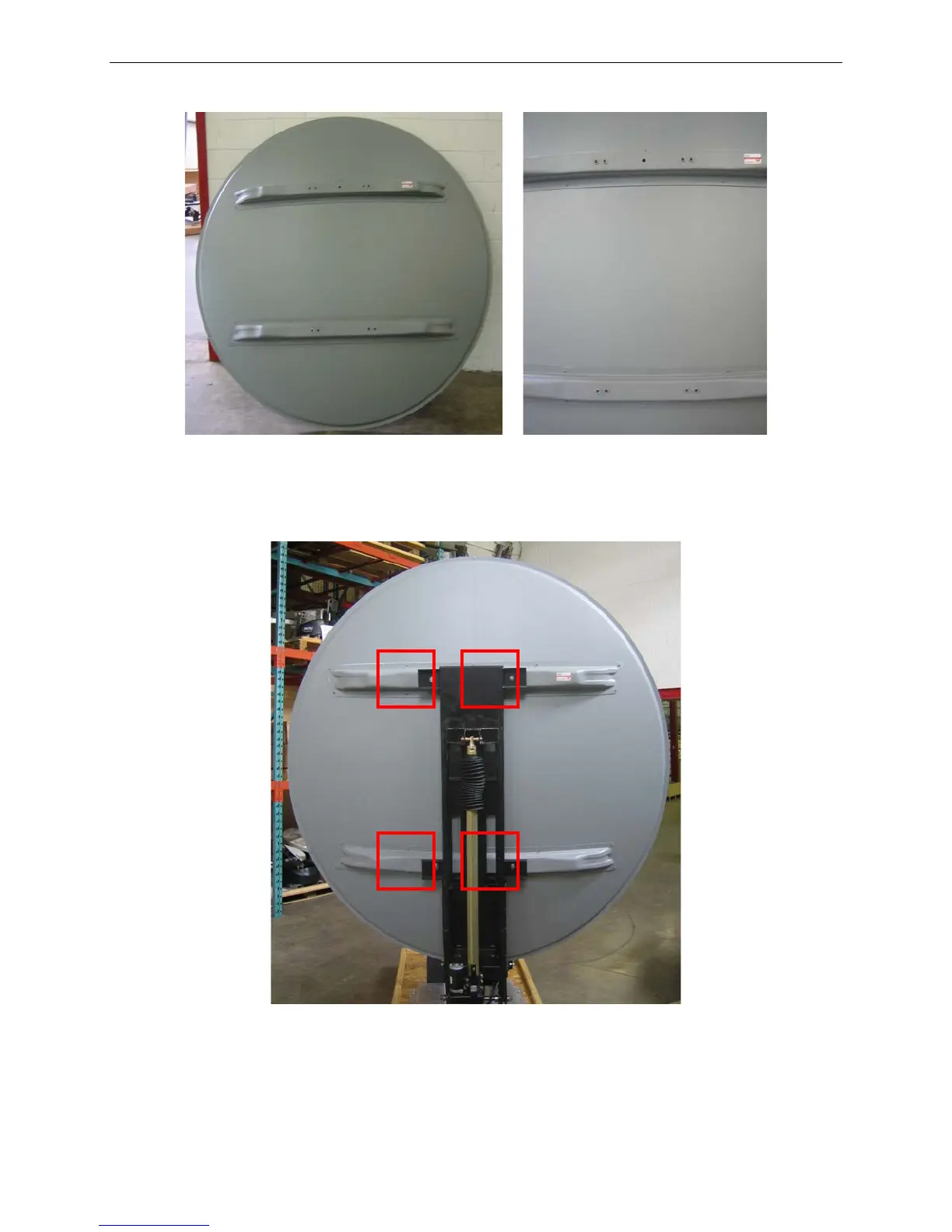

Fig. 37: Reflector Mounting Locations
