iNetVu™ Service Manual Page 89 of 109
Required Materials for iNetVu™ 980 Mobile Platform:
7/16” Wrench
Procedure:
1. Raise the dish and ensure that Azimuth and Polarization are in stowed position.
Note: LNB DOES NOT need to be removed for this procedure.
2. Loosen the two (2) bolts located on the Feed Horn Assembly using the 7/16”
Wrench in order to allow the Feed Horn Assembly to be rotated.

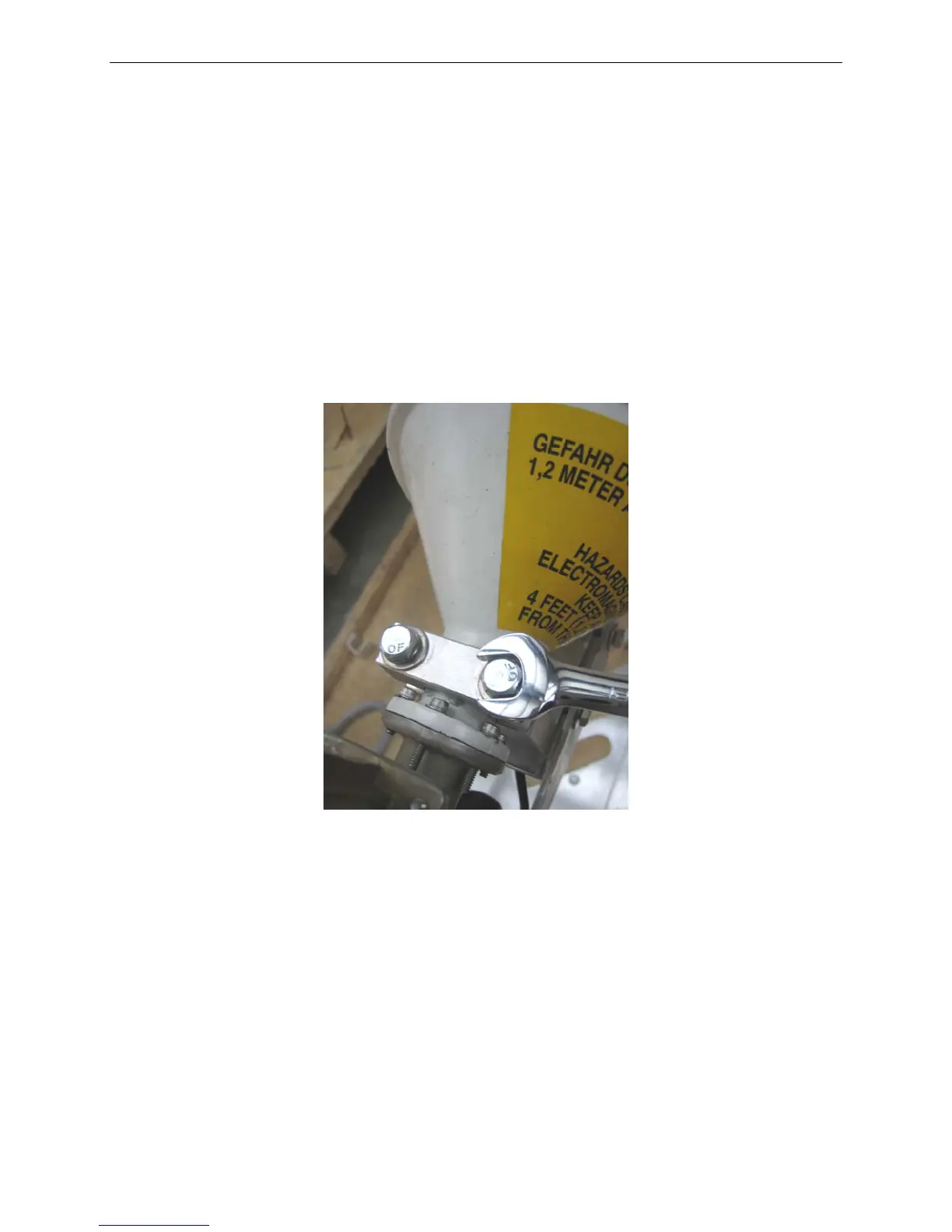

Fig. 50: Loosening the Feed Horn Assembly Bracket Cap
3. Manually rotate transmitter bracket to the desired orientation by hand.
Bracket Pointing UP: Vertical Transmit / Horizontal Receive
Bracket Pointing LEFT/RIGHT: Horizontal Transmission / Vertical Receive
