iNetVu™ Service Manual Page 90 of 109

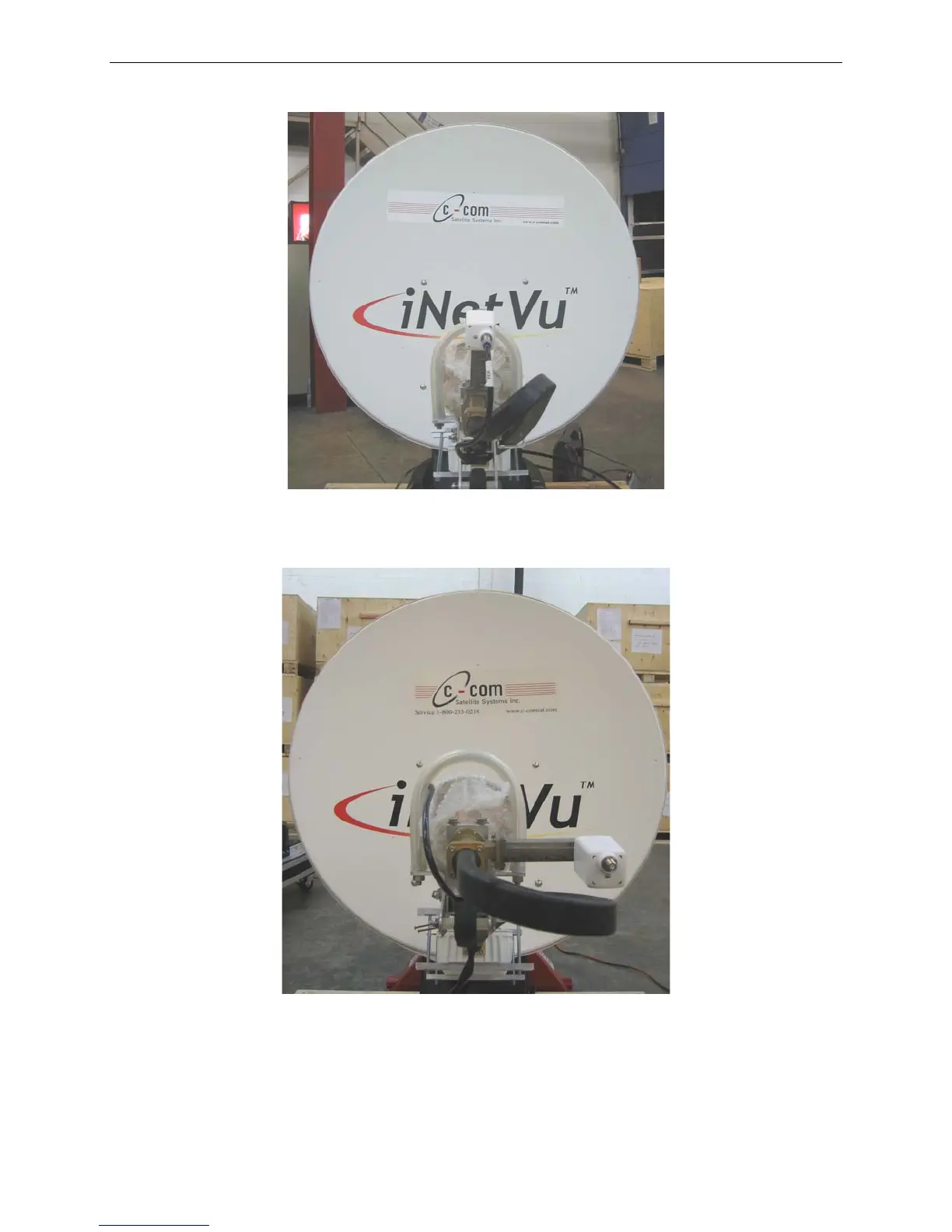

Fig. 51: Transmitter bracket orientation for Vertical Transmit
Fig. 52: Transmitter bracket orientation for Horizontal Transmit
4. Ensure the transmitter bracket is level.
5. Tighten transmitter bracket.
