C-TEC CAST XFP User Manual

ENTER ACCESS LEVEL 3
DISPLAY FIRE EVENTS *
DISPLAY FAULT EVENTS *
DISPLAY DISABLEMENTS *
DISPLAY ZONES IN TEST *
LAMP TEST
DISPLAY ALARM COUNTER
SET TIME/DATE
EVENT LOG FUNCTIONS
SET/CLEAR DISABLEMENTS
CHANGE ACCESS LEVEL 2 CODE
ENABLE/DISABLE ZONES
ENABLE/DISABLE SOUNDERS
ENABLE/DISABLE OUTPUTS
ENABLE/DISABLE RELAYS
ENABLE/DISABLE DEVICES
ENABLE/DISABLE FAULT RELAY
ENABLE/DISABLE OUTPUT DELAYS
DISPLAY FIRE EVENTS *
DISPLAY FAULT EVENTS *
DISPLAY DISABLEMENTS *
DISPLAY ZONES IN TEST *
SETUP PASSWORDS
CONNECT TO PC
NETWORK FUNCTIONS
COMMISSIONING FUNCTIONS
ENGINEER FUNCTIONS
SET COMMS FUNCTION
SET PANEL NUMBER
SET PANEL FITTED
RESTART THE LOOP
SET/CLEAR DISABLEMENTS
MONITOR A POINT
TEST DEVICE OUTPUTS
TEST OUTPUT SETS
TEST SOUNDERS IN GROUPS
TEST VADS IN GROUPS
TEST PANEL RELAYS
WALK TEST
IDENTIFY LOOP BREAK
LOOP TEST
DISPLAY DATABASE
VERSION NUMBERS
SHOW PSU STATS
ENABLE/DISABLE EARTH FAULT
SHOW DEVICE EEPROM
TURN LEDS ON/OFF
DIAGNOSTIC FUNCTIONS
LOOP LEARN
ADDRESS FUNCTIONS
SHOW FITTED DEVICES
ASSIGN ZONE/GROUP
SET DAY/NIGHT TIMES
ENABLE/DISABLE DST ADJUSTMENT
CONFIGURE SOUNDER DISABLEMENTS
SWAPPED DEVICE DETECTION
CONFIGURE POLLING LED
MAKE A CLEAN START
AL2
AL3
AL3 CODE
ENTRY
AL2 K/S
ENTRY
PRINT EVENT HISTORY
DISPLAY EVENT HISTORY
RESET EVENT HISTORY
AL2 CODE
ENTRY
AUTO ADDRESS
REPLACE/ADD DEVICE
CHANGE ADDRESS
SHOW DUPLICATE ADDRESSES
FIX DUPLICATE ADDRESSES
IDENTIFY LOOP CHANGES
MENU BUTTON
KEYSWITCH (K/S)
AL1 - ACCESS LEVEL 1
AL2 - ACCESS LEVEL 2 (Code 3333)
AL3 - ACCESS LEVEL 3 (Code 4444)
* THE MENU OPTION SHOWN WILL ONLY BE
AVAILABLE IF RELEVANT TO THE PANEL’S STATUS.
ENABLE/DISABLE ZONES
ENABLE/DISABLE SOUNDERS
ENABLE/DISABLE OUTPUTS
ENABLE/DISABLE RELAYS
ENABLE/DISABLE DEVICES
ENABLE/DISABLE FAULT RELAY
ENABLE/DISABLE OUTPUT DELAYS

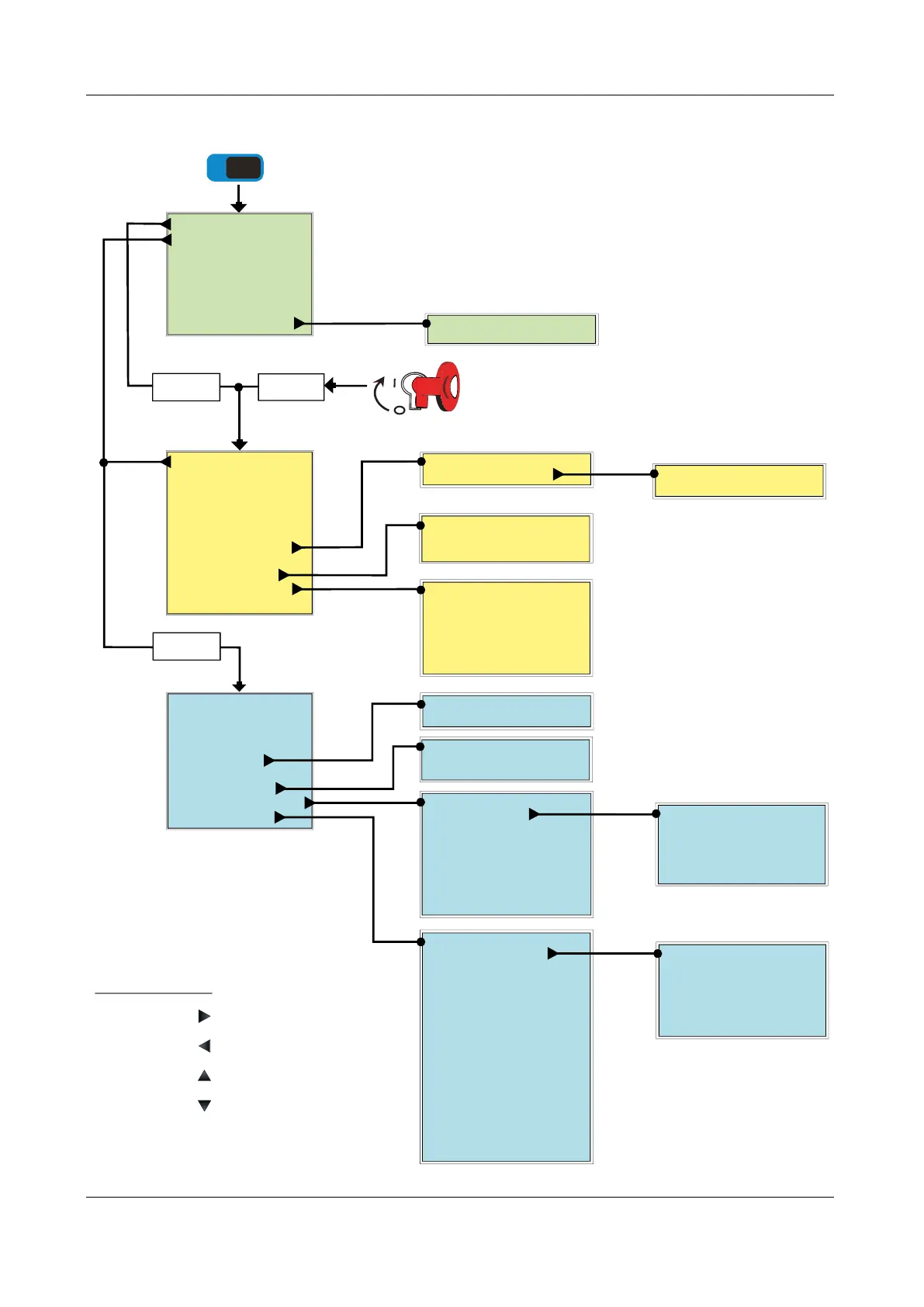

MENU NAVIGATION
PRESS ACCEPT BUTTON TO MOVE FORWARD.
PRESS ESCAPE BUTTON TO MOVE BACK.
PRESS SCROLL BUTTON TO MOVE UP.
PRESS SCROLL BUTTON TO MOVE DOWN.
AL1
ENTER ACCESS LEVEL 2
ENTER ACCESS LEVEL 3
DISPLAY FIRE EVENTS *
DISPLAY FAULT EVENTS *
DISPLAY DISABLEMENTS *
DISPLAY ZONES IN TEST *
LAMP TEST
DISPLAY ALARM COUNTER
Total Alarms = nnn
Alarms Since nn/nn/nn = n
CHANGE ACCESS LEVEL 2 CODE
CHANGE ACCESS LEVEL 3 CODE
Total Alarms = nnn
Alarms Since nn/nn/nn = nn
Clear to todays date?
Alarms Since nn/nn/nn = nn
CAST XFP 16 ZONE ANALOGUE ADDRESSABLE FIRE ALARM PANEL
ENGINEERING MANUAL • Approved Document No. DFU5010000 Rev 4 • Page 48 of 48
