CAST XFP 16 ZONE ANALOGUE ADDRESSABLE FIRE ALARM PANEL
CONTROLS AND INDICATORS

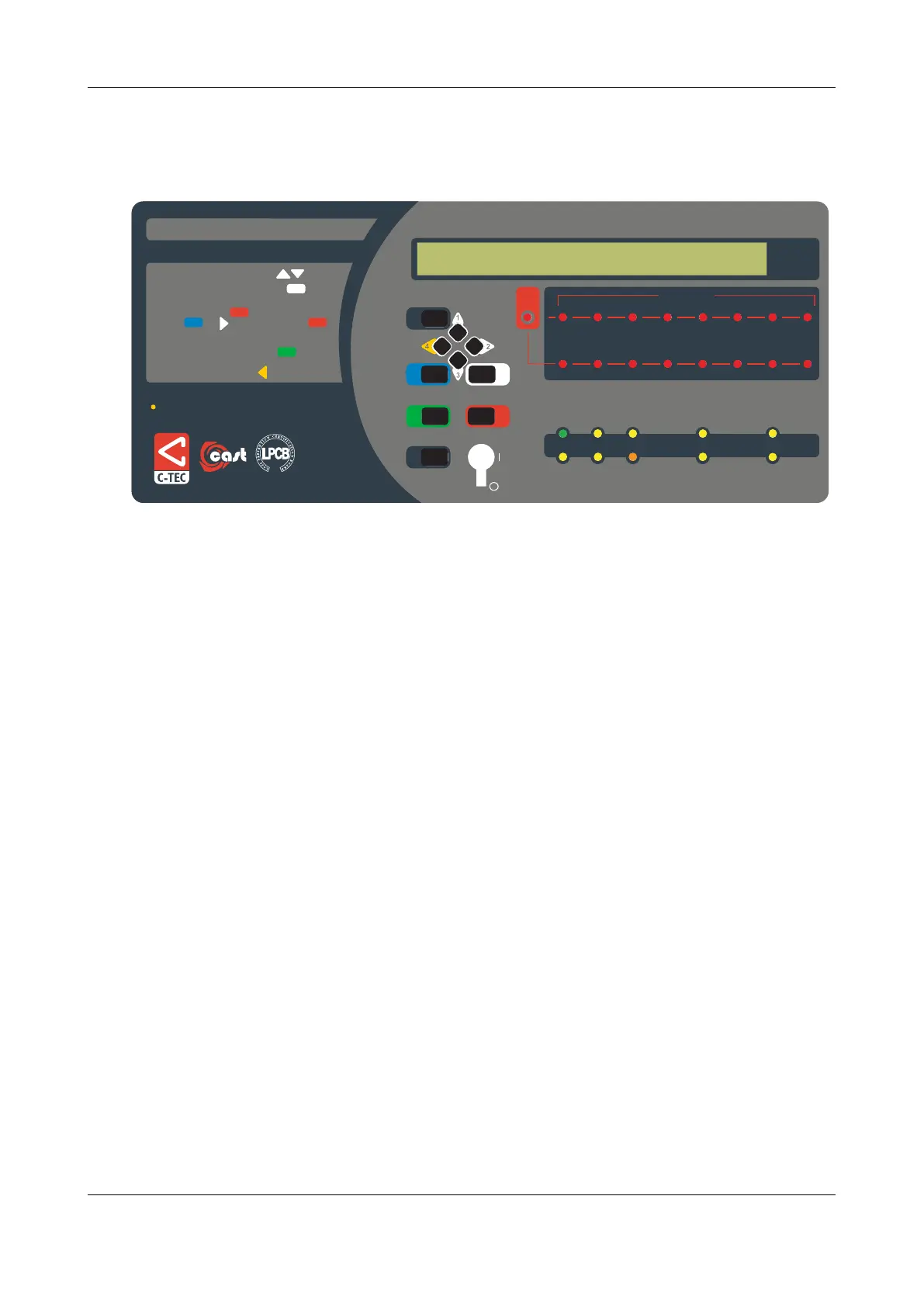

Front panel layout
General fault
Manufactured in England
Fire Alarm Control Panel Instructions
To view more events use the scroll buttons
To silence the internal sounder: press
To silence/resound the alarm sounders:
Turn key to l and press
OR press and . Enter code and press
To reset the panel:
Ensure all alarm conditions are silenced and
investigations are complete and press
To exit access mode:
Remove key OR press and hold
flashing light - call engineer
Fire
Fire Zones
12
3
4
56
7
8
910
11
12
13 14
15
16
menu
investigate
control panel
reset
silence/resound
sounders
silence internal
sounder
accessed
phased
evacuation
general
disablement
test
sounder
status
power
supply
fault
general
fault
system
fault
delays
running
supply
present
more
information
escape
accept
EN54-2 & EN54-4
XFP
The system must be
tested regularly.
If in doubt, refer to
the user manual.
CA ST XFP SERIES
176b
10:59:03 24 Jun : Normal
FOXCO WAREHOUSING
LED Indicators
Liquid Crystal Display Provides detailed information on the status of the system (the type of messages
displayed and what they mean is covered in greater detail in the panel’s
separate user manual).
(General) Fire Flashes red when there is a fire condition on any zone and goes steady red
when the alarm is silenced. Subsequent fire conditions will restart the (General)
Fire indicator flashing until it is silenced again.
Fire Zones (1-16) One or more of these indicators will flash red in an alarm condition and will go
steady when silenced.
Supply Present Normally lit green to show that all of the panel’s power supplies are
functioning correctly.
Test Lit yellow when the panel is in walk test mode. This LED does NOT illuminate
for any other test condition.
Accessed Lit yellow when the panel is in access levels 2 or 3.
General Disablement Lit yellow when one or more zone, sounder, output or relay is disabled.
Phased Evacuation Flashes yellow when there is a phased evacuation in progress.
General Fault Flashes yellow when there is a fault condition on the panel. Will always be lit
in conjunction with at least one other fault LED.
Power Supply Fault Lit yellow when the panel’s power supply or Mains has failed or the panel’s
standby battery is in poor condition.
System Fault Lit amber when a system error, such as a microprocessor fault, occurs AND REMAINS
LIT EVEN IF THE SYSTEM FAULT CLEARS. THIS SYSTEM FAULT LED CAN ONLY BE
CLEARED BY PRESSING THE CONTROL PANEL RESET BUTTON AT AL2 OR AL3.
Sounder Status Flashes yellow when a fault is detected on either of the panel’s two
conventional sounder circuits or if there is a sounder disablement anywhere on
the system.
Delays Running Lit yellow when one or more output delays has been programmed by an engineer.
Flashes yellow when one or more output delays are running.
