CAB a2+ - Service Functions for Printer Maintenance; Performing Firmware Updates; Copying New Firmware via Interface; Copying New Firmware from Memory Medium

A2+/A4+/A6+/A8+
Test functions
Edition 5/06 Configuration Instructions 39

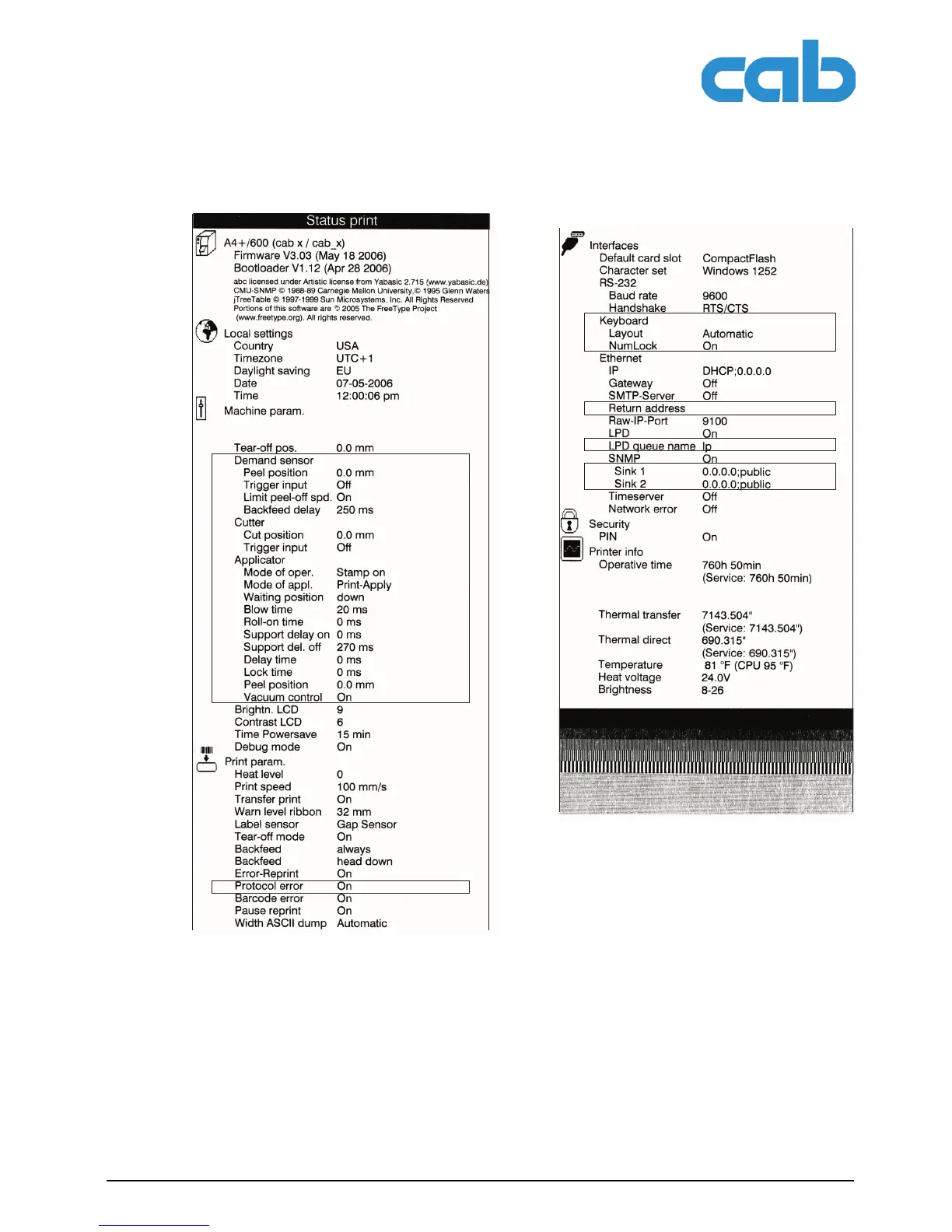

Fig. 13: Status print
A From address is displayed if the SMTP server is "On" or the service key is inserted
E Recipients are displayed if SNMP is "On" or the service key is inserted
O Optional assemblies which are displayed with the service key inserted even if they are not
installed
S Service data only displayed when the service key is inserted
W Queue name is displayed when LPD is "On" or the service key is inserted
O
S
O
W
E
Printhead pos. X 5.0 mm
Printhead pos. Y 0.0 mm
A
Number of labels 10931
(Service: 10631
