48 Configuration Instructions Edition 5/06
Test functions
A2+/A4+/A6+/A8+

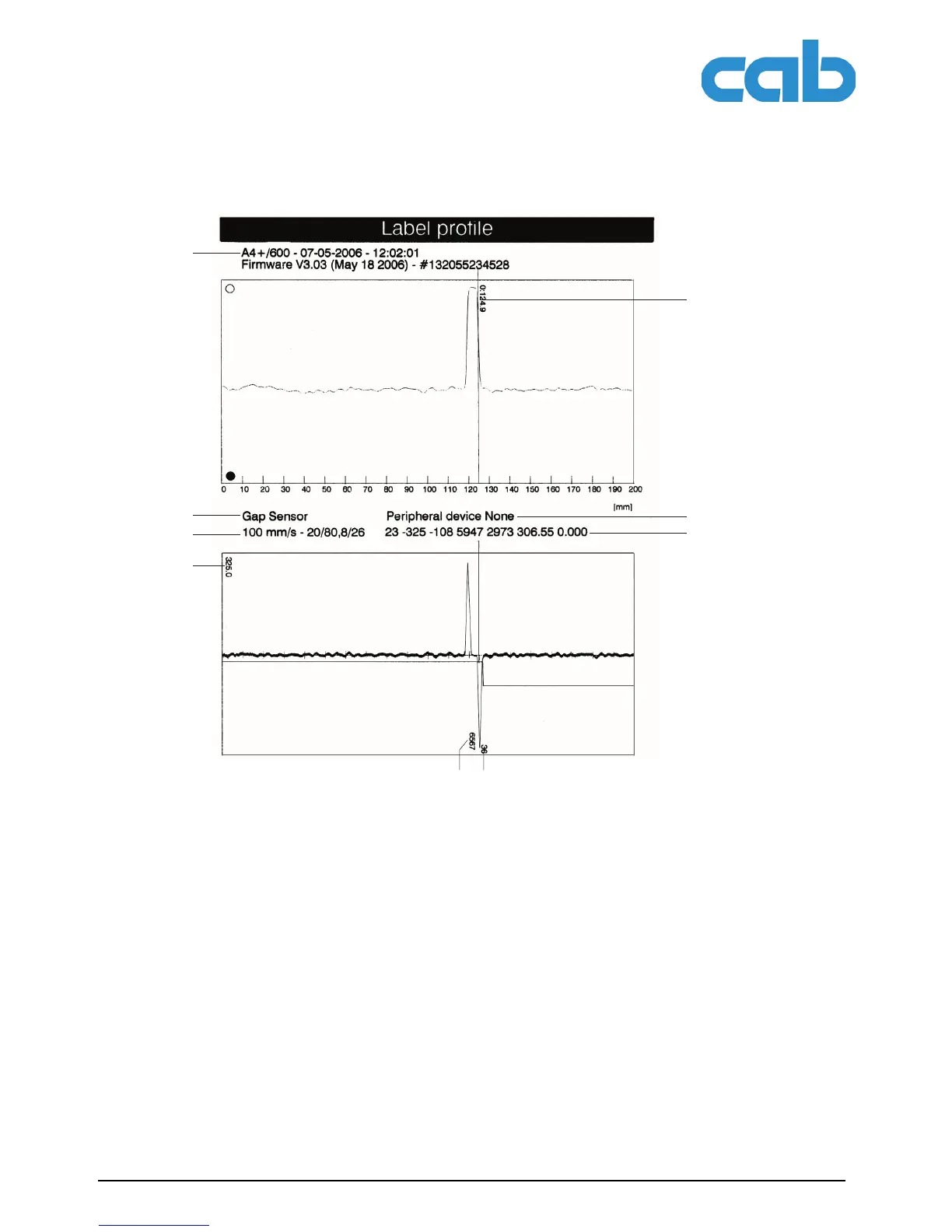

Fig. 21: Label profile
1 Coordinate in the direction of paper flow at which the label start was detected
2 Type of peripheral device connected
3 Information for the firmware developer
4 Width of the negative derivative in motor increments
5 Stroke between start and end of the negative derivative
6 Scale factor for the derivative diagram
7 Service information for adjusting the label sensor
8 Method of label detection (transmitted light/reflex bottom)
9 Device name and current firmware version
1
2
3
45
6
7
8
9
