CAB A4 Service Manual

11
Serviceanleitung / Service Manual / / /
1.9 Teile des Etikettendruckers 1.9 Printer Component Location

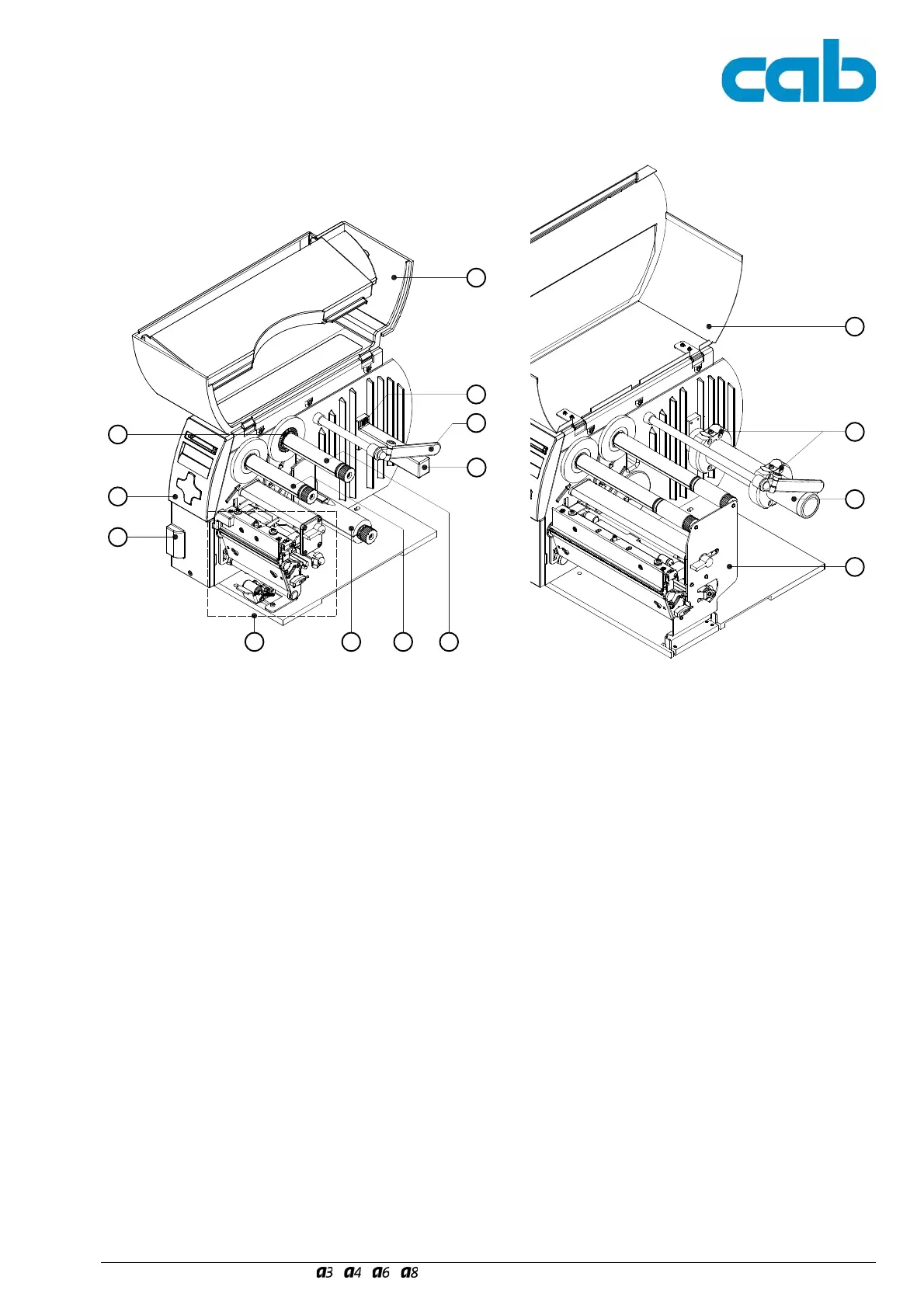

Bild 1 Gesamtansicht
1 - Vorwarnetikett Transferfolienende
2 - Bedienfeld
3 - Spendemodul (optional bei A-Serie P-Version)
4 - Druckmechanik
5 - Interner Aufwickler (nicht in A-Serie Basisversion)
6 - Transferfolienaufwickler
7 - Transferfolienabwickler
8 - Rollenhalter
9 - Führung
10 - Vorwarnetikett Papierende
11 - Deckel
Abweichungen beim A8:
12 - Metallhaube
13 - 2 Wickeladapter
14 - Etikettenabwickler
15 - Stütze
Fig. 1 General View
1 - Warning label ''End of Ribbon''
2 - Control Panel
3 - Peel-off module (Option for A-Series P-version)
4 - Print mechanism
5 - Internal Rewinder (not at A-Series Basic version)
6 - Ribbon take up hub
7 - Ribbon supply hub
8 - Media hub
9 - Media Retainer
10 - Warning label ''End of Paper''
11 - Cover
Deviations at A8:
12 - Metal Cover
13 - 2 Adapters
14 - Media Unwinder
15 - Plate
1
2
3
8
11
9
10
4 5 6 7
13
14
15
12

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
