5 Adjustments
5.3 Adjusting the Label Run
Over an eccentric on the 3. deection roller (5) it's possible to change the angle between roller and chassis and so
the direction of the material (2) run. The label material (2) must so run that the material edge touched softly the paper
run edge (1) of the chassis.
1 2
5
4
3

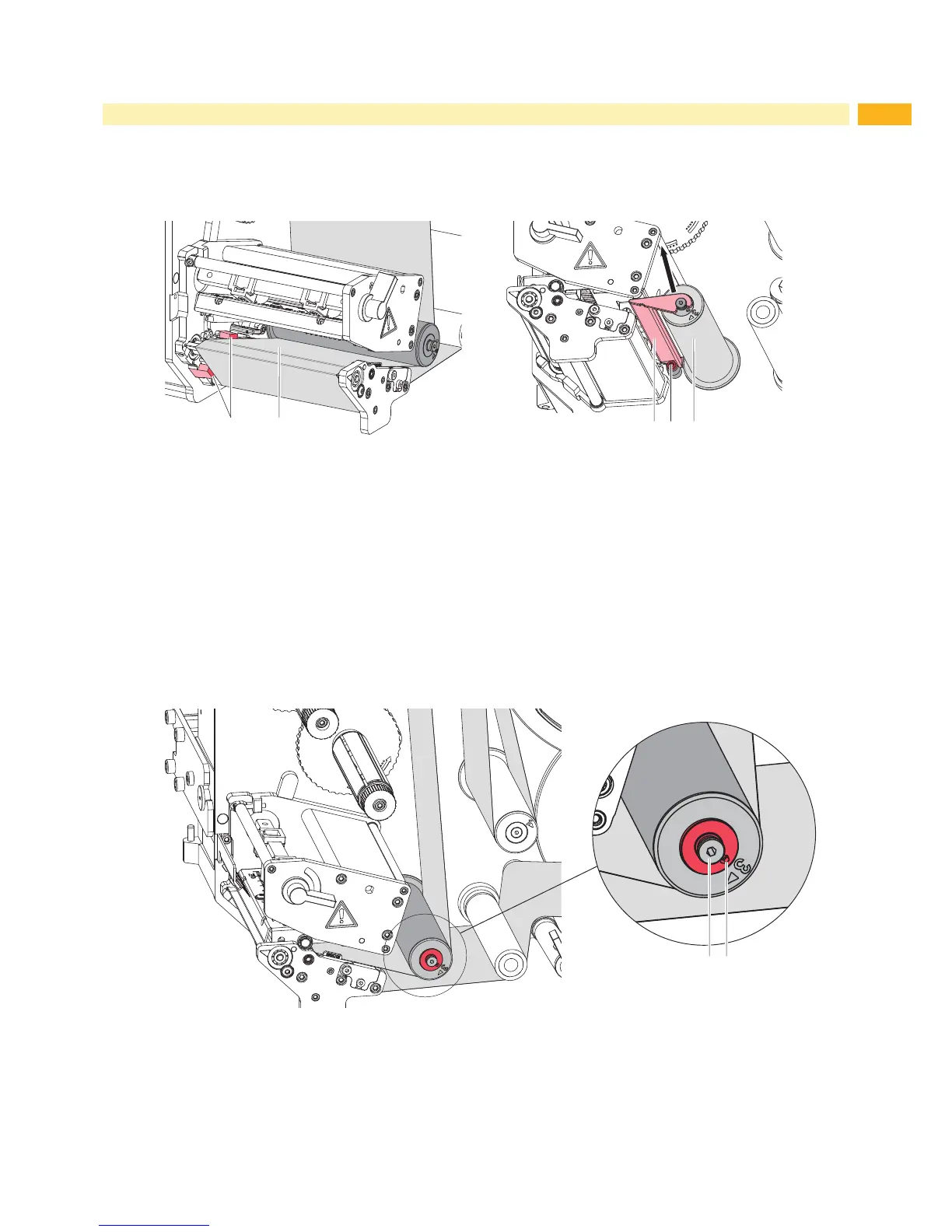

Figure 21 Material on the paper run edge Figure 22 Mount and dismount of the guiding
To adjust the eccentric it's necessary to dismount the guiding (3).
Removing the guiding
1. Loosen screw (4).
2. Pull out the guiding (3) on top in arrow direction.
Changing the approach angle of the deection roller
3. Loosen screw (6) two rounds.
4. Turn the eccentric on the (7) internal hexagon with the hexagon key in the right position.
5. Tighten screw (6) and hold at the same time the eccentric (7) with a second hexagon key.
6. Press the button feed to test the material run. If necessary adjust it again.
6 7
Figure 23 Changing the material run via changing the angle of the 3. deection roller
Mount the guiding
7. Loosen screw (4).
8. Put the guiding (3) down (against the arrow) on the deection roller (5). On both sides are grows to x the guiding.
9. Press guiding (3) down and tighten screw (4).
